Vehicle Workshop 10 × 24 m for safe vehicle movement.

Use the specific model to check the relationship between industrial doors, work bays and vehicle movement. A good Vehicle Workshop reduces handling and leaves room for staff and equipment.

Product visualisation of a 10 × 24 m Vehicle Workshop with three industrial doors
Load-bearing steel structure of a service hall
Technical 3D model of an insulated service hall
Starting model

Key details in one place.

The model provides a specific basis for three service entrances and the adjoining working space.

  • 10 × 24 m · 240 m²
  • Lower wall 4 m · higher wall 4.9 m
  • Mono-pitch roof · 5° pitch
  • 5 steel frames · 6 m spacing
  • 3 industrial doors · 2 personnel doors · 7 plastic-framed windows

The details describe this starting model. It is a preliminary study, not structural design, fabrication or construction documentation.

Planning the operation

Every work bay needs safe access and working space.

Check the dimensions of the vehicles being serviced, door opening, lifting equipment and pedestrian movement. The industrial doors are only the beginning of the route.

  1. 01

    What are the largest vehicles that must enter the hall safely?

  2. 02

    How many work bays will operate simultaneously?

  3. 03

    Where will parts, tools and technical facilities be stored?

  4. 04

    How will customer access be separated from handling and service work?

Edit in the Studio

Adapt the Vehicle Workshop to the vehicles and work bays.

The 10 × 24 m starting model loads three industrial doors and verified geometry that you can continue to change.

Open this model in the Studio
Technical solution

What the starting model actually contains.

The description is based on the issued template and verified model documentation. Detailed technical assessment belongs to the relevant specialists.

Technical design of the model

The load-bearing structure consists of five transverse steel frames at six-metre centres. The 240 m² floor area creates a clear service space with three sectional overhead doors for vehicle access.

The mono-pitch roof with a 5° pitch consists of 120 mm insulated sandwich panels in RAL 9006, while the wall cladding uses 100 mm panels in RAL 9007. The design includes three sectional overhead doors, two personnel doors and seven openable plastic-framed windows. This is a study; the final member sizes, foundations, anchorage and fire-safety design will be determined by the subsequent specialist design. The third image is an AI-generated product visualisation, not a photograph of a completed building.

Service technology requires its own coordination.

Lifts, inspection pits, extraction, services and storage of operating substances are not part of the starting study.

Study outputs

From the spatial model to the basis for a quotation.

The previews help you understand the geometry and scope of the study before opening the model in the Studio.

Model and external views

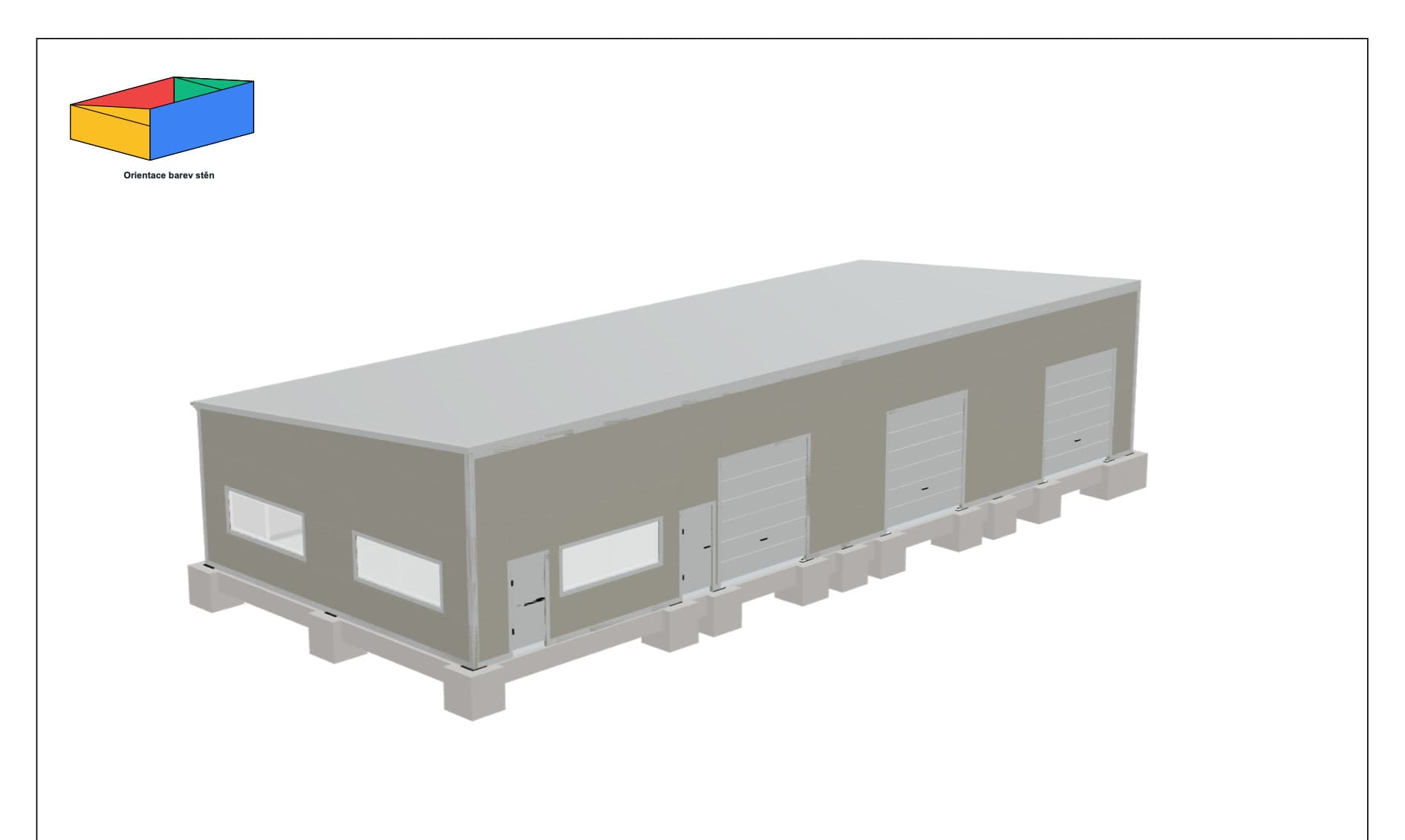

Spatial model · 10 × 24 × 4–4.9 m
Spatial model · 10 × 24 × 4–4.9 m

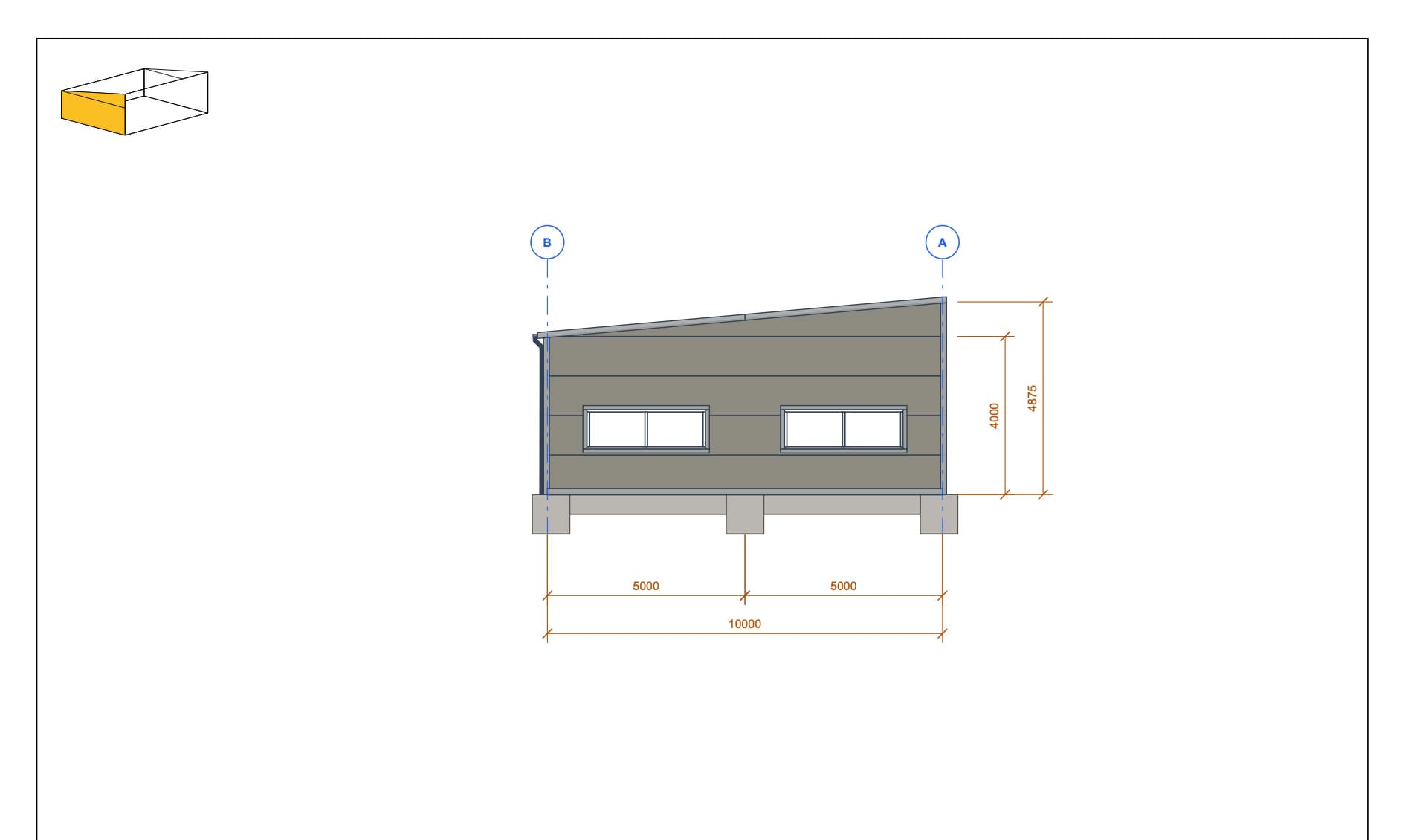

View with 2 windows · 10 m
View with 2 windows · 10 m

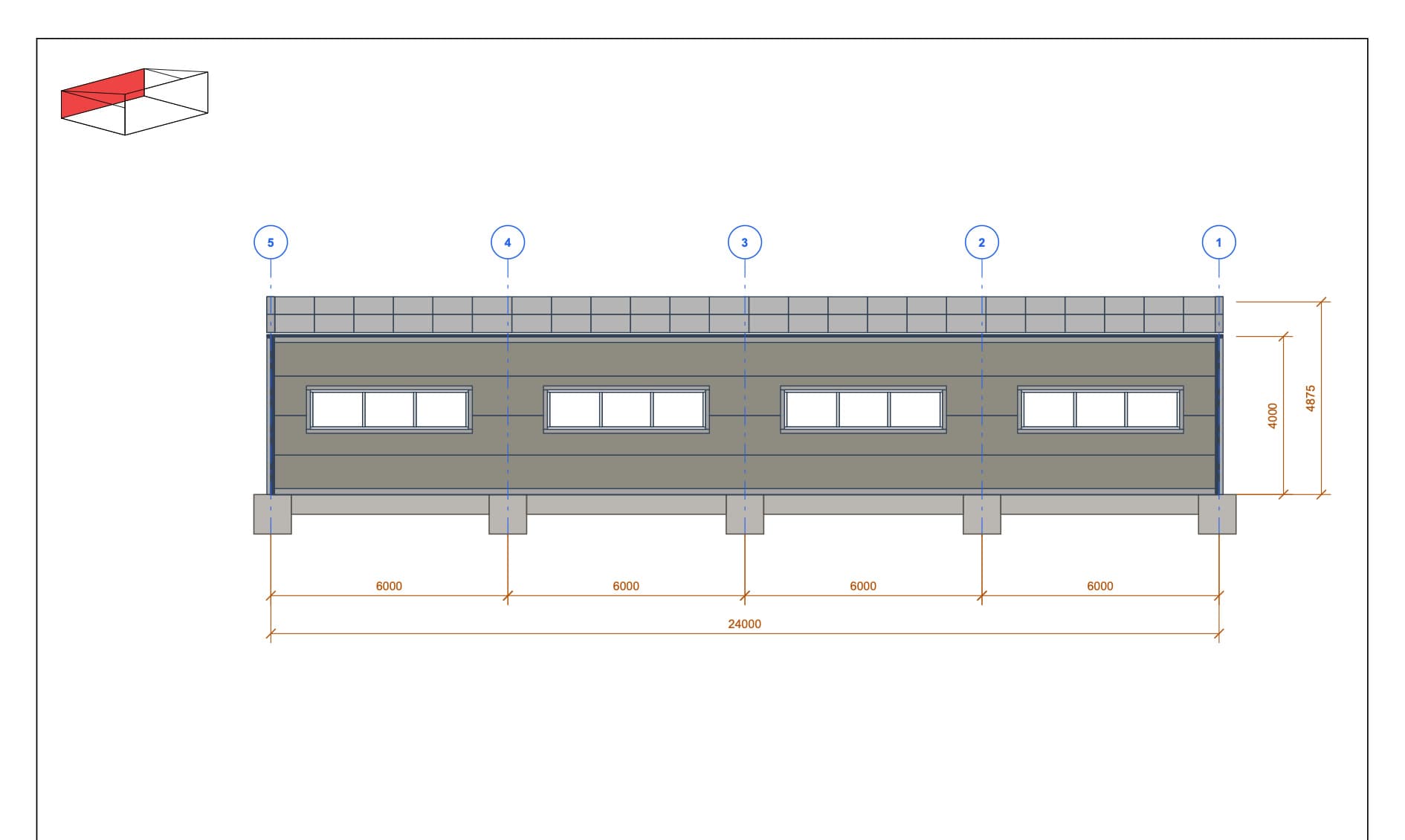

Side view with 4 windows · 24 m
Side view with 4 windows · 24 m

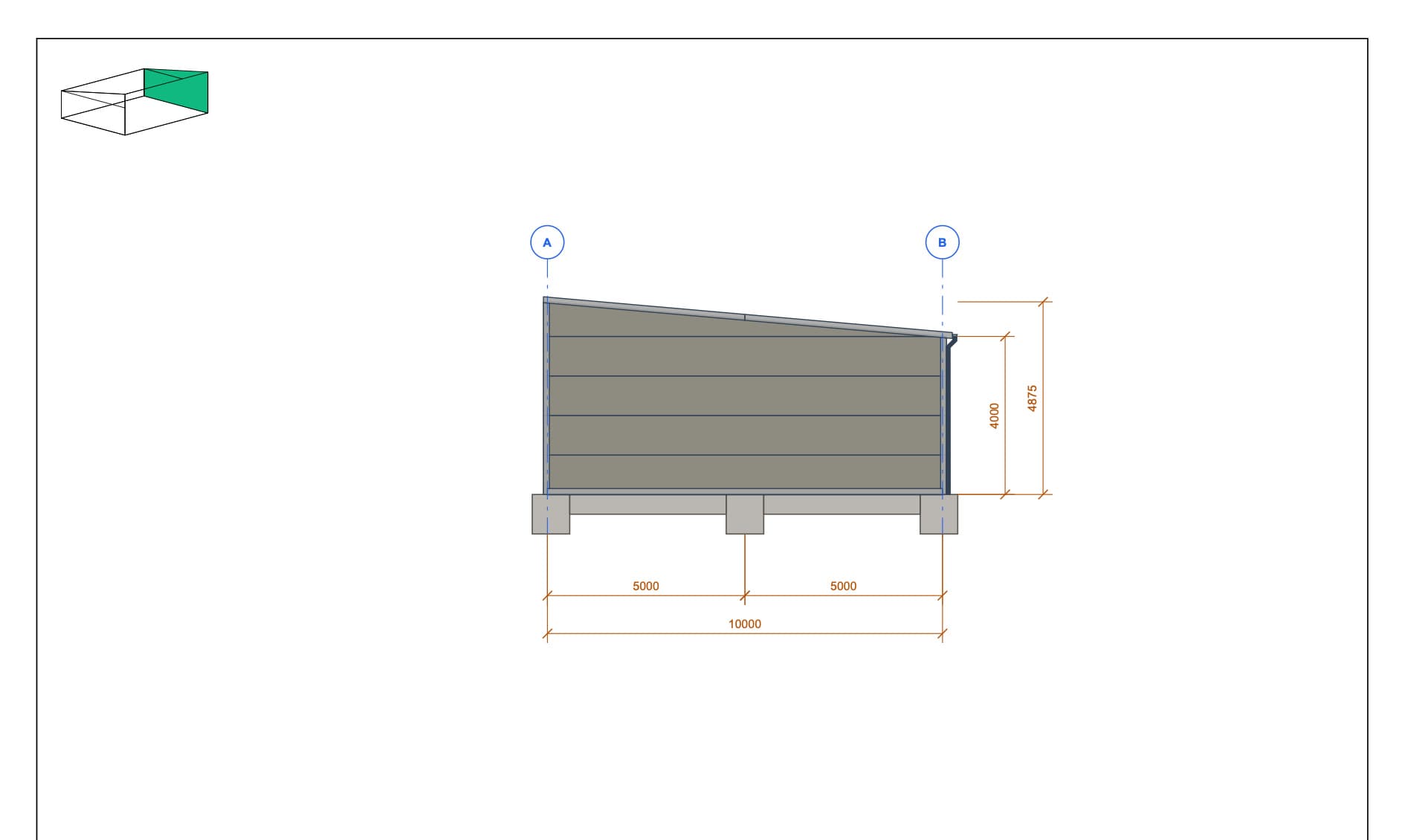

Rear view · 10 m
Rear view · 10 m

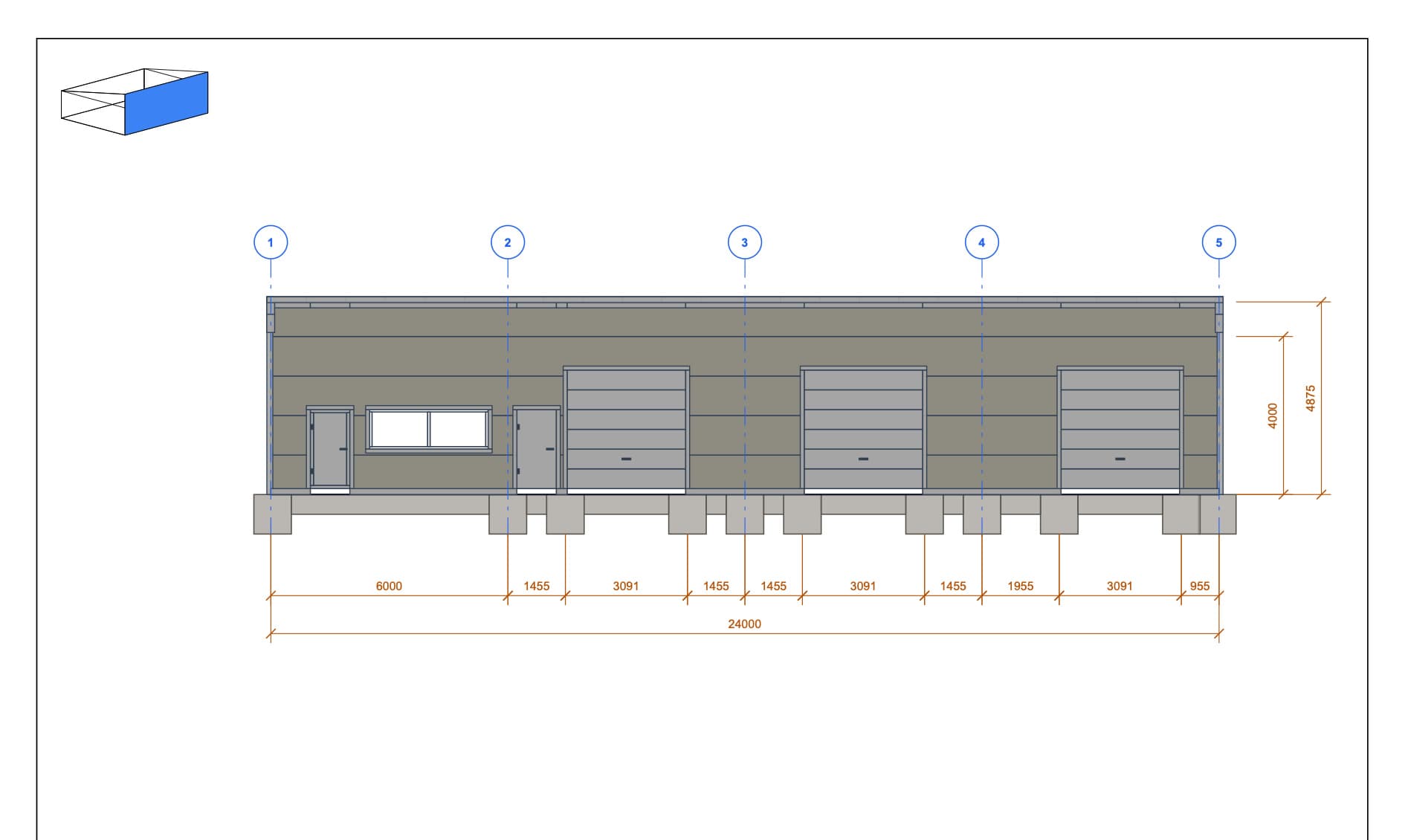

Service view · 3 industrial doors and 2 personnel doors
Service view · 3 industrial doors and 2 personnel doors

Layout, sections and foundations

Floor plan · 10 × 24 m
Floor plan · 10 × 24 m

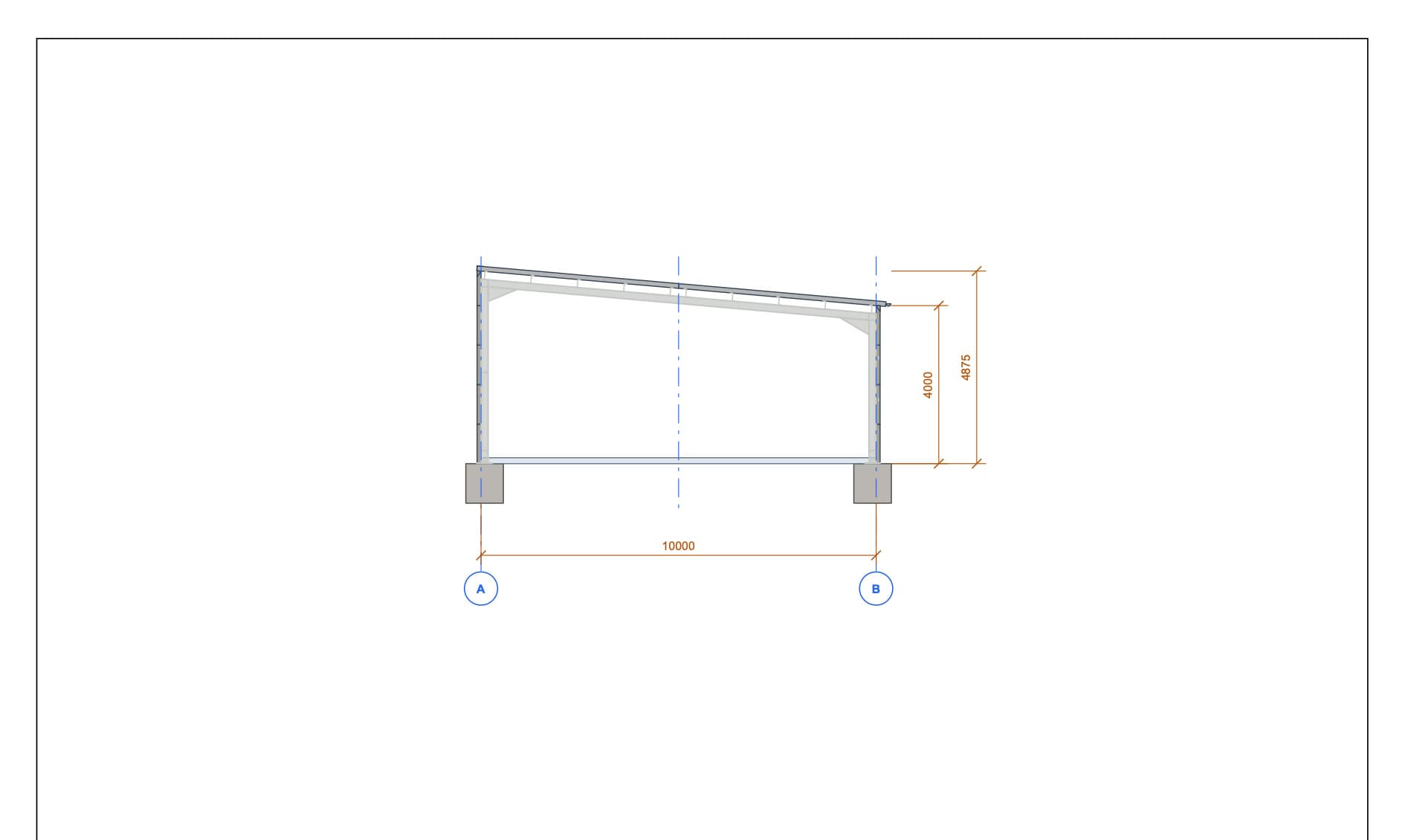

Cross-section · 10 m
Cross-section · 10 m

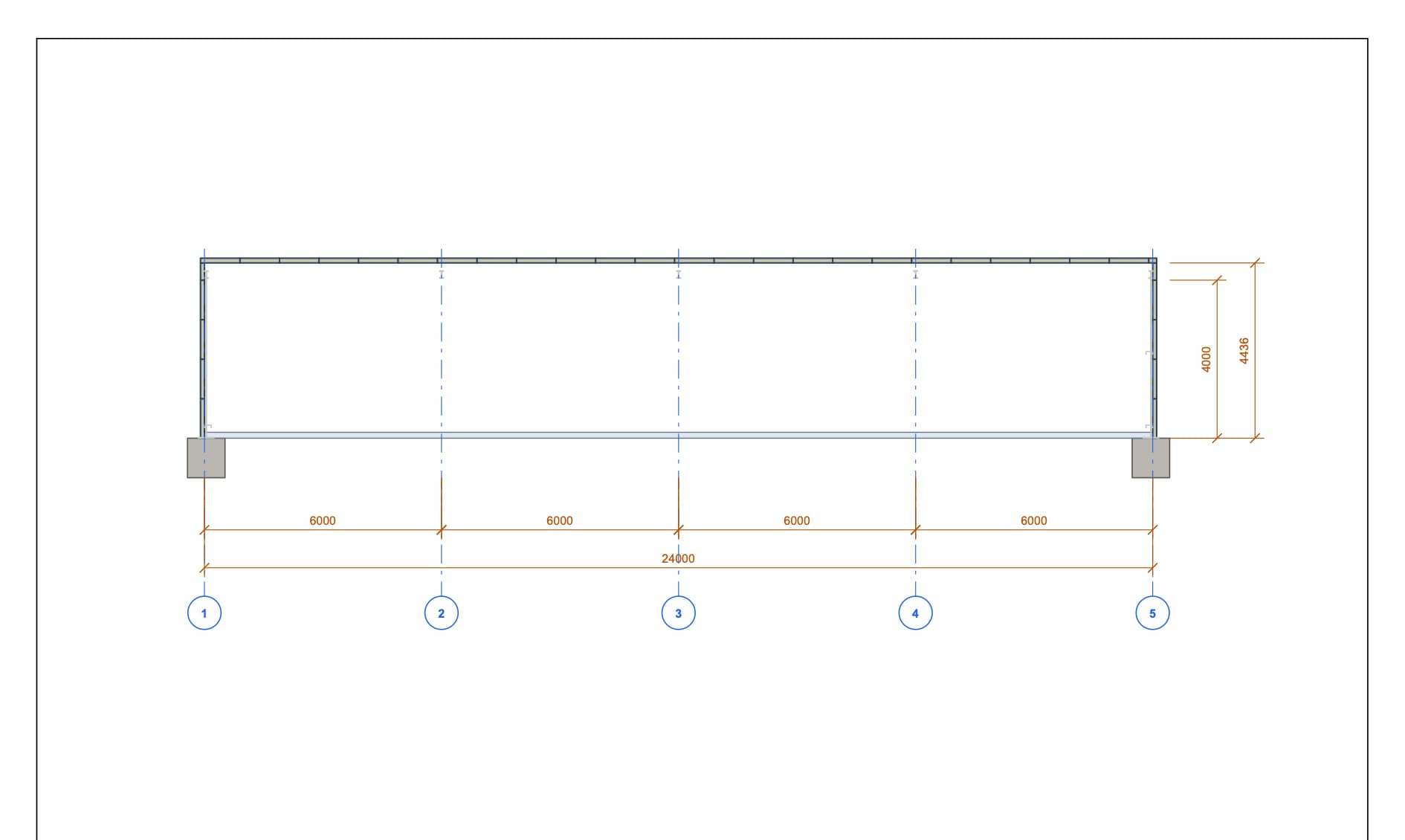

Longitudinal section · 24 m
Longitudinal section · 24 m

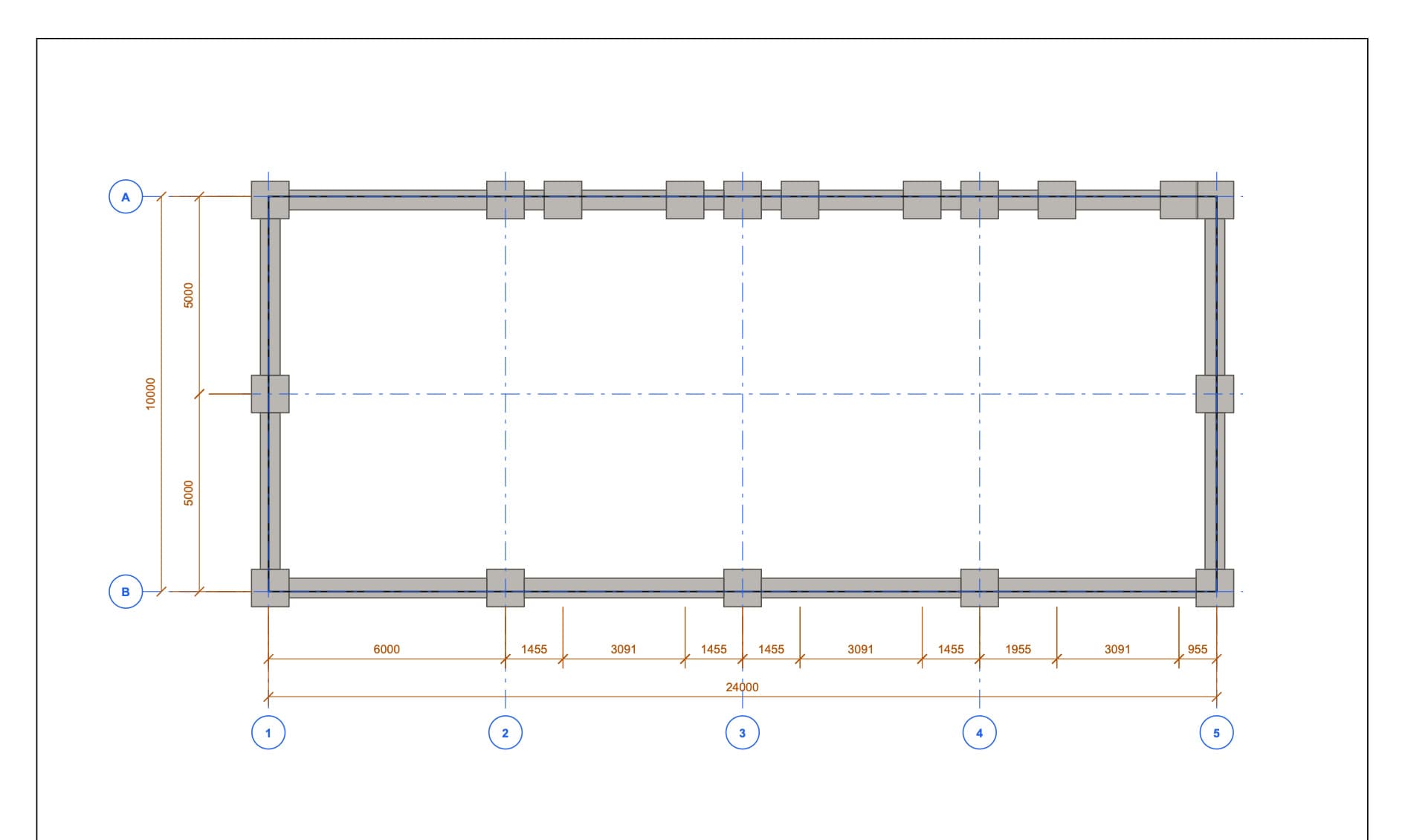

Foundations · 10 × 24 m
Foundations · 10 × 24 m

Technical description and schedules

These compact previews show the structure of each file. The labels describe what each document contains.

Technical report · 10 × 24 × 4–4.9 mTechnical report
Technical report · 10 × 24 × 4–4.9 m

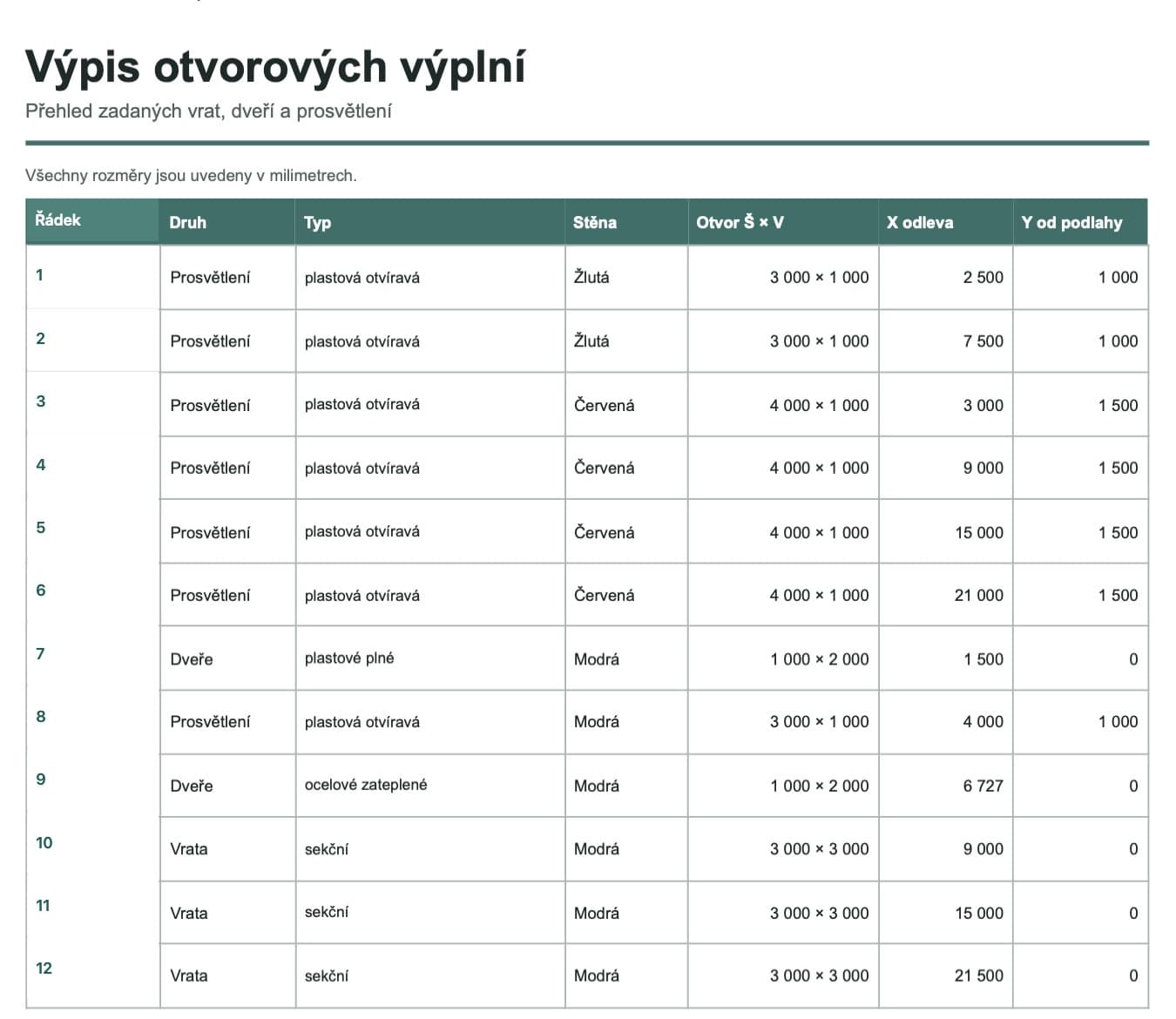

3 industrial doors · 2 personnel doors · 7 plastic-framed windowsSchedule of openings
3 industrial doors · 2 personnel doors · 7 plastic-framed windows

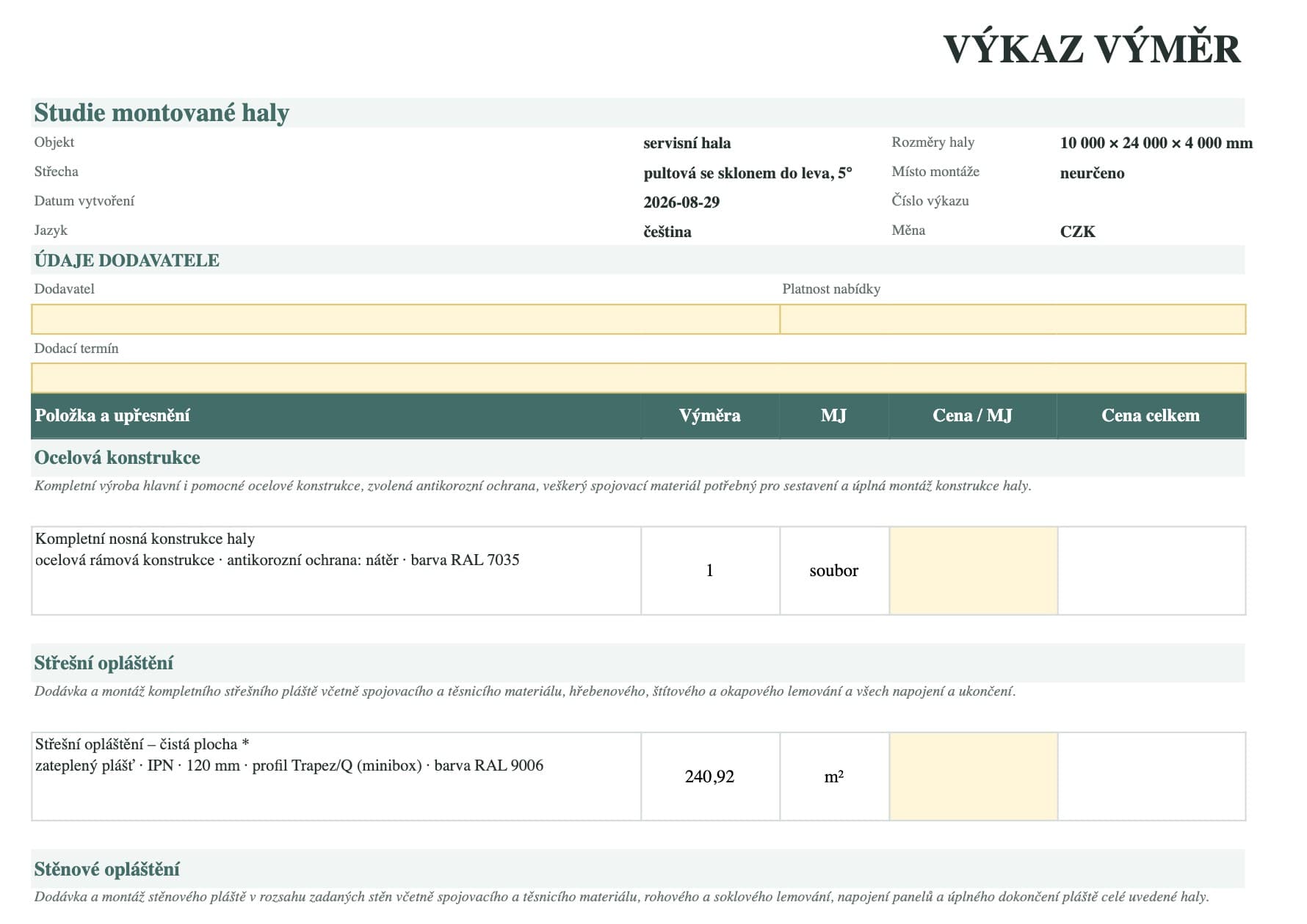

Schedule of quantities · 240 m²Schedule of quantities
