The model provides a specific basis for a covered sports area. The dimensions must be compared with the chosen sport, safety clearances and required facilities.
Starting model
Key details in one place.
The starting model shows an open volume, a gable roof and a basic range of openings.
18 × 36 m · 648 m²
Wall height 7 m · ridge 8.7 m
Pitched roof · 11° pitch
7 steel frames · 6 m spacing
4 glazed doors · 8 fixed translucent panels
The details describe this starting model. It is a preliminary study, not structural design, fabrication or construction documentation.
Planning the operation
The playing area is only part of the Sports Hall.
In addition to the clear sports area, allow for safety clearances, circulation, changing rooms, storage, possible spectators and technical facilities.
01
Which sports and performance levels should the hall support?
02
What clear footprint and height are required by the rules and safety clearances?
03
How many people will use the changing rooms, entrances and sanitary facilities at once?
04
Is space needed for spectators, equipment storage or dividing the area?
Edit in the Studio
Check the hall volume against the specific sport.
You can adapt the 18 × 36 m model to the required playing area, height and operational entrances.
The description is based on the issued template and verified model documentation. Detailed technical assessment belongs to the relevant specialists.
Technical design of the model
The load-bearing structure consists of seven transverse steel frames at six-metre centres. The 648 m² open internal space provides a spacious basis for sports facilities, training facilities or multi-purpose use.
The 11° gable roof consists of 120 mm insulated sandwich panels in RAL 9006. The wall cladding consists of 100 mm insulated panels in RAL 7016 with a RAL 6011 stripe. The design includes four 1 × 2 m glazed doors and eight fixed aluminium translucent panels. This is a study; the final member sizes, foundations, anchorage, fire-safety design and sports equipment will be determined by the subsequent specialist design. The third image is an AI-generated product visualisation, not a photograph of a completed building.
Sports equipment and facilities are not part of the model.
Surfaces, stands, changing rooms, acoustics, lighting, ventilation and fire capacity must be designed separately.
Study outputs
From the spatial model to clear documents for quotation discussions.
The previews help you understand the geometry and scope of the study before opening the model in the Studio.
Model and external views
Spatial model · 18 × 36 × 7–8.7 m

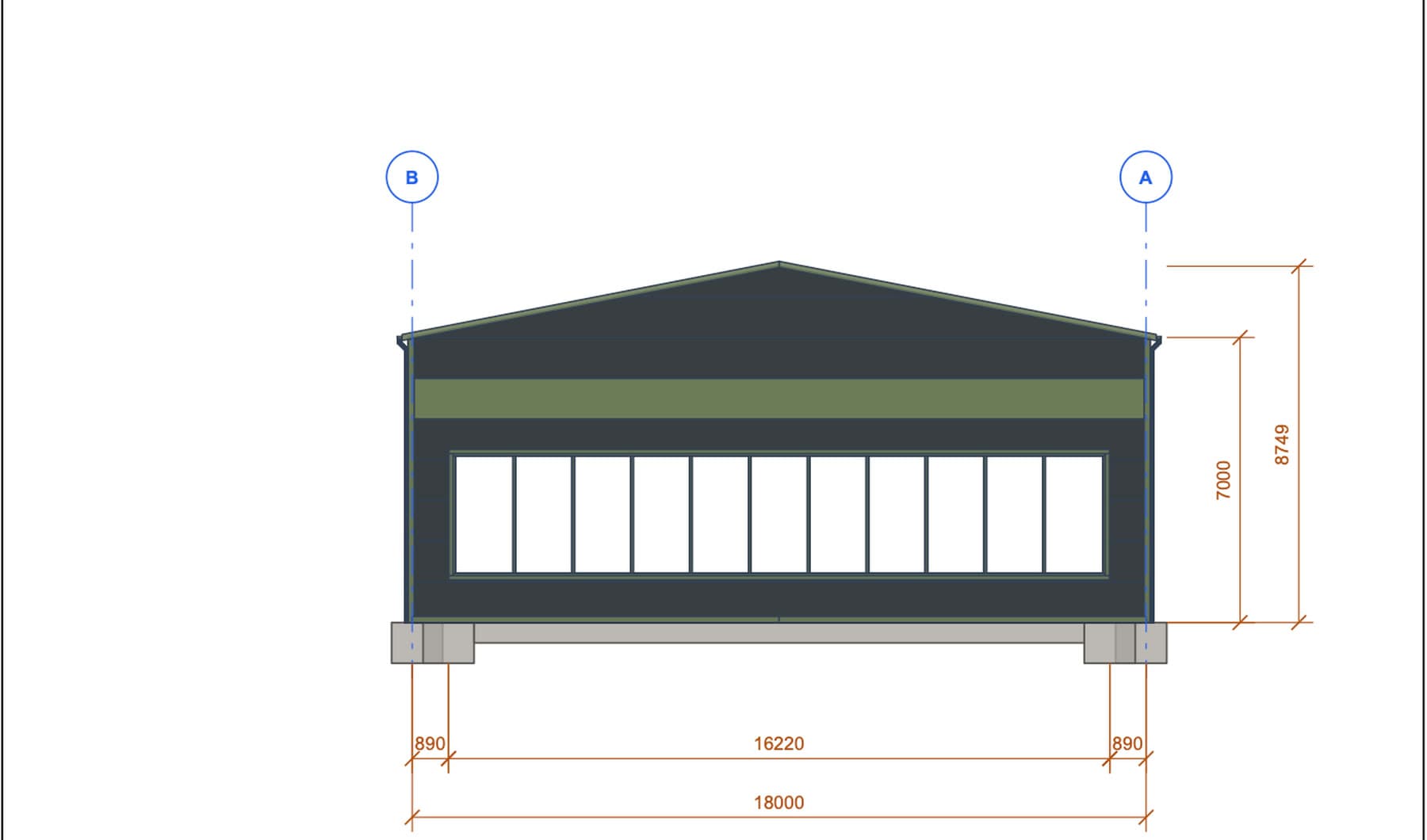

Front view with translucent panels · 18 m

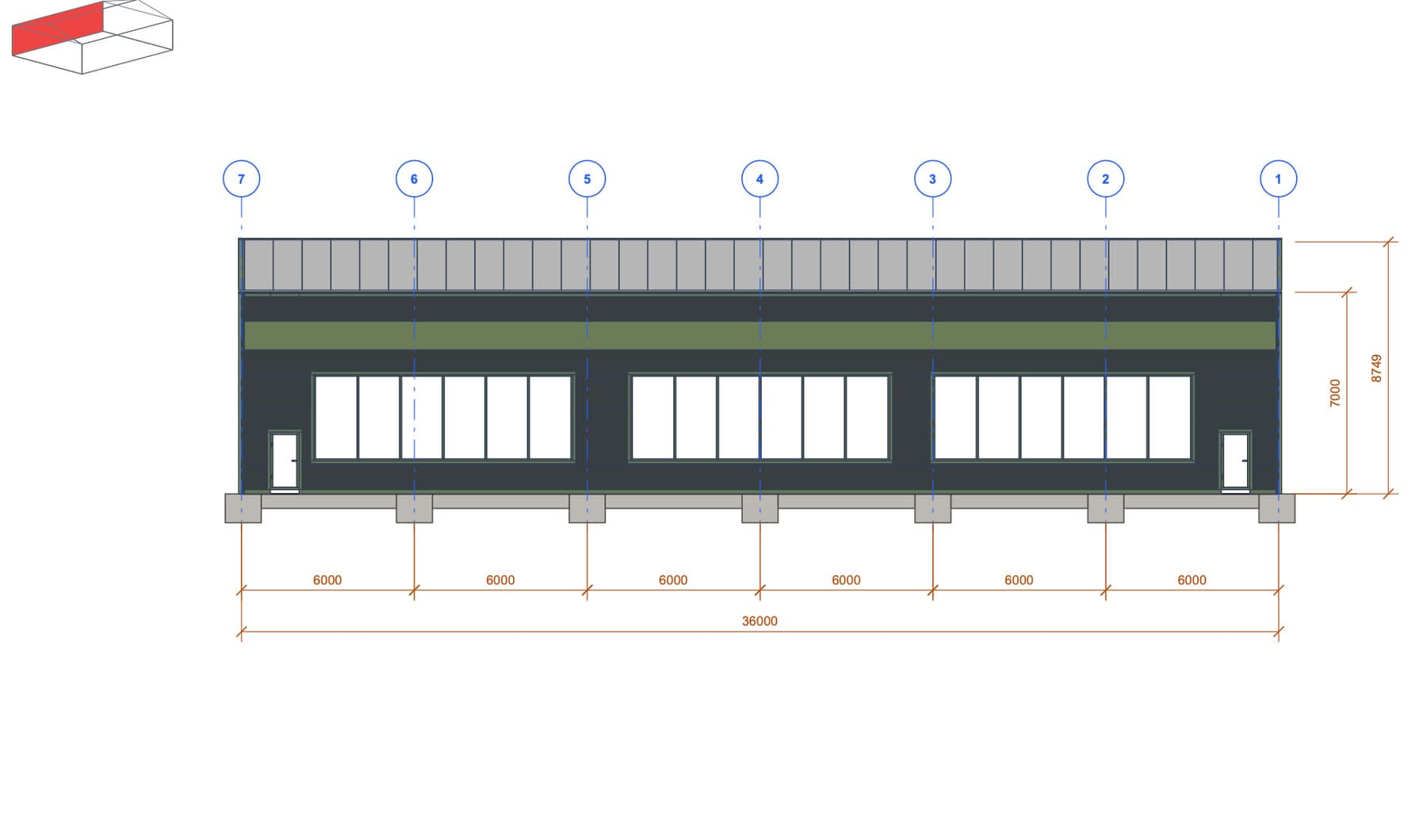

Side view · 36 m · 2 doors
Rear view with translucent panels · 18 m

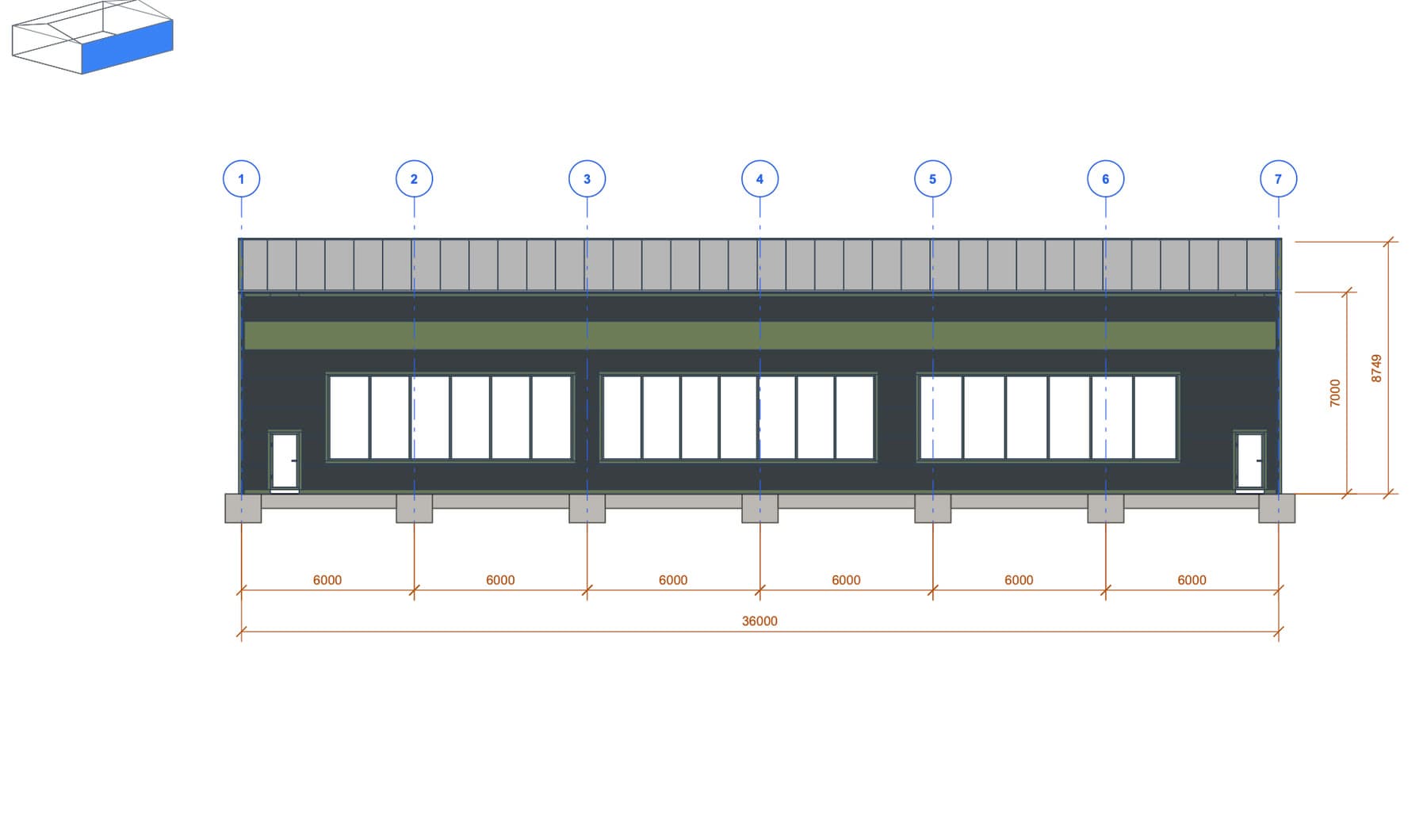

Side view · 36 m · 2 doors
Layout, sections and foundations
Floor plan · 18 × 36 m

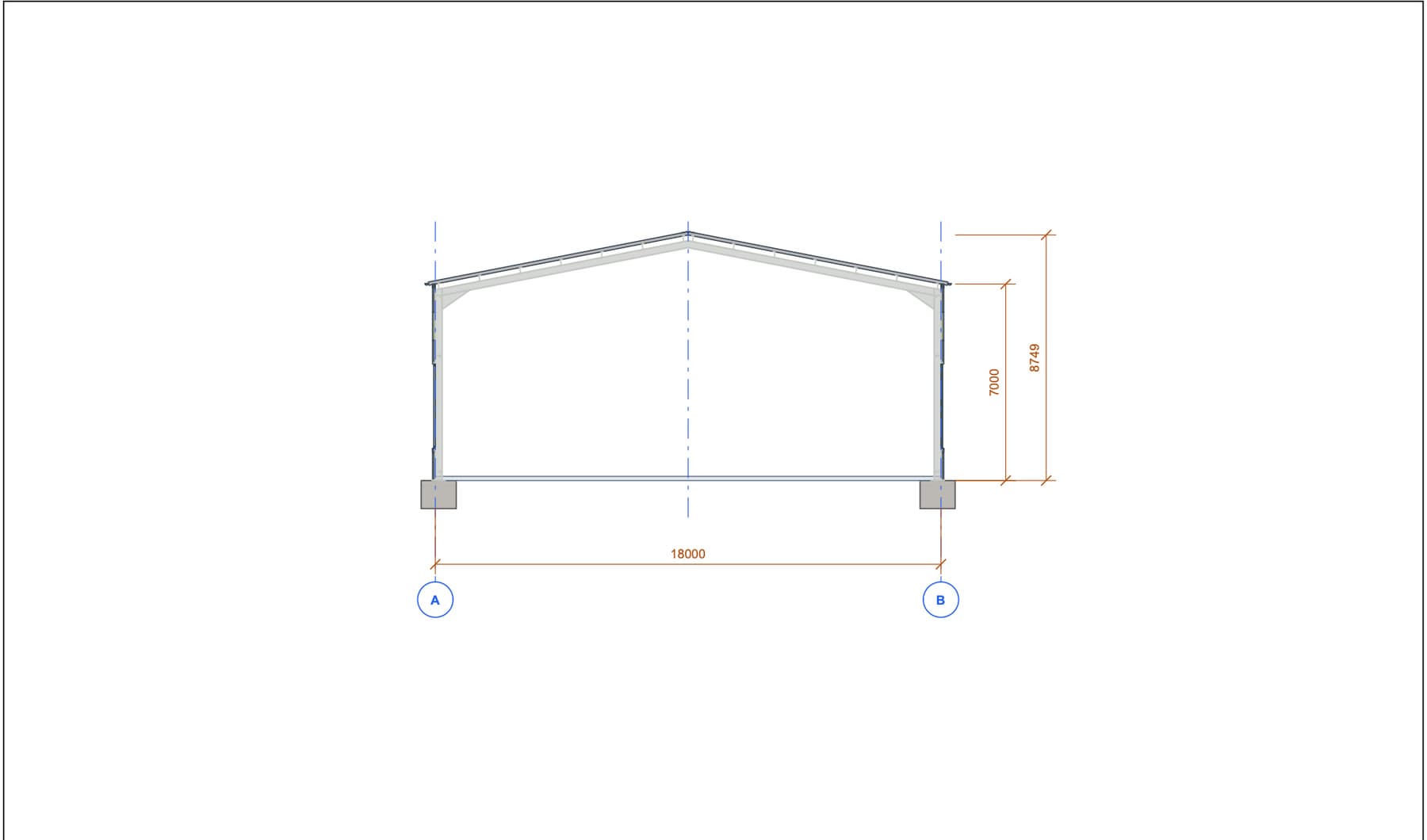

Cross-section · 18 × 7–8.7 m

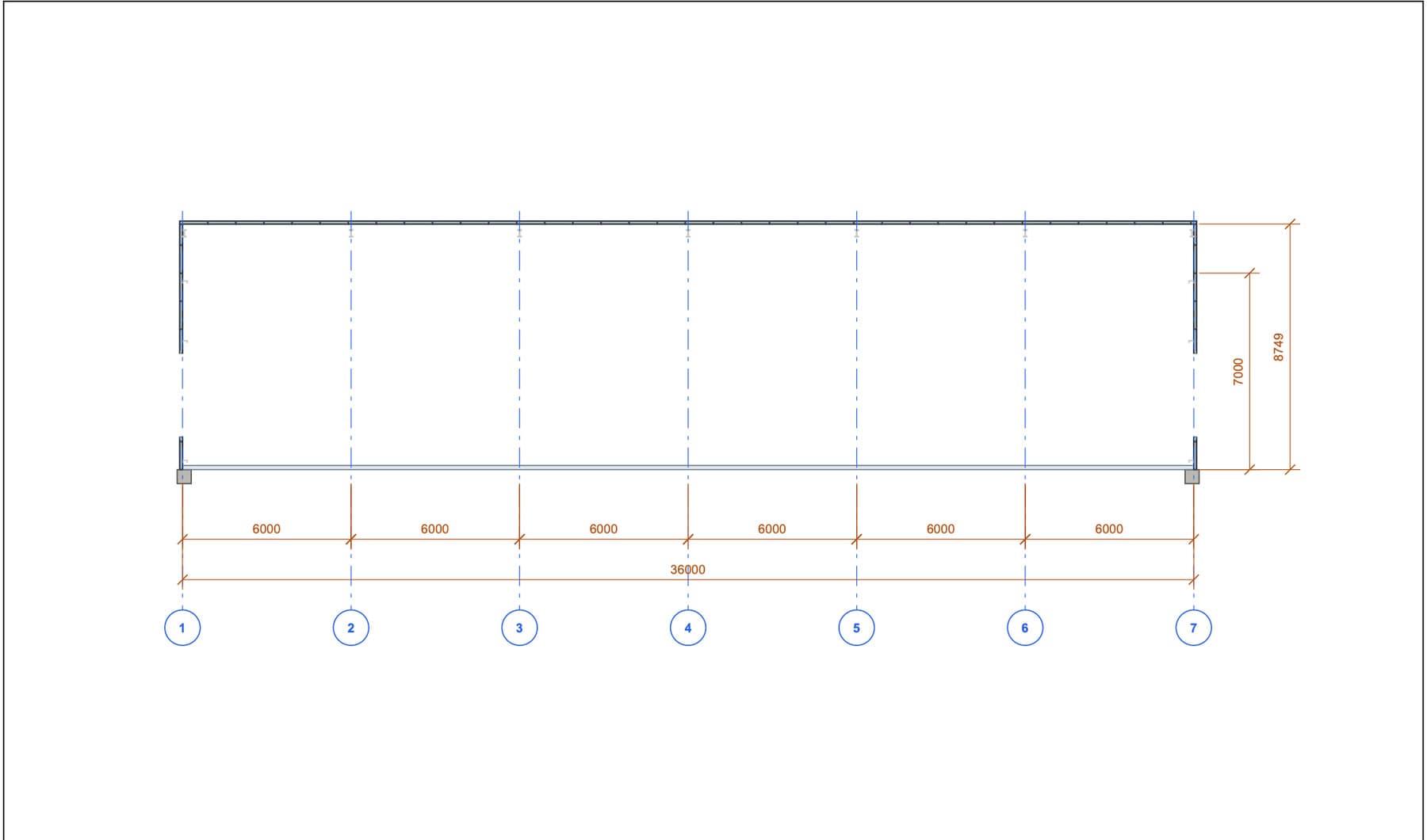

Longitudinal section · 36 m · 6 bays

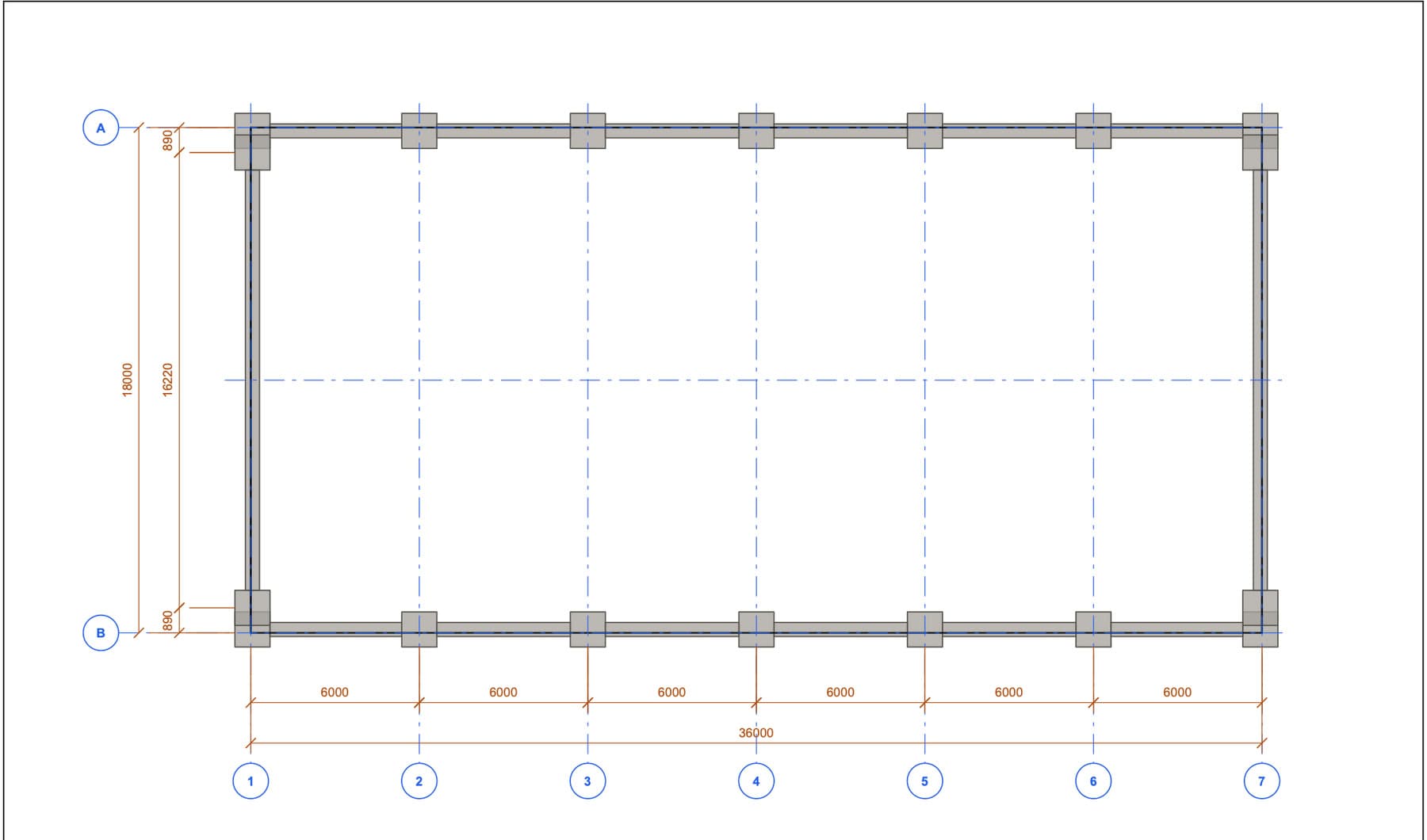

Foundations · 18 × 36 m · 7 frames
Technical description and schedules
These compact previews show the structure of each file. The labels describe what each document contains.
Technical report
Technical report · sports hall 18 × 36 m

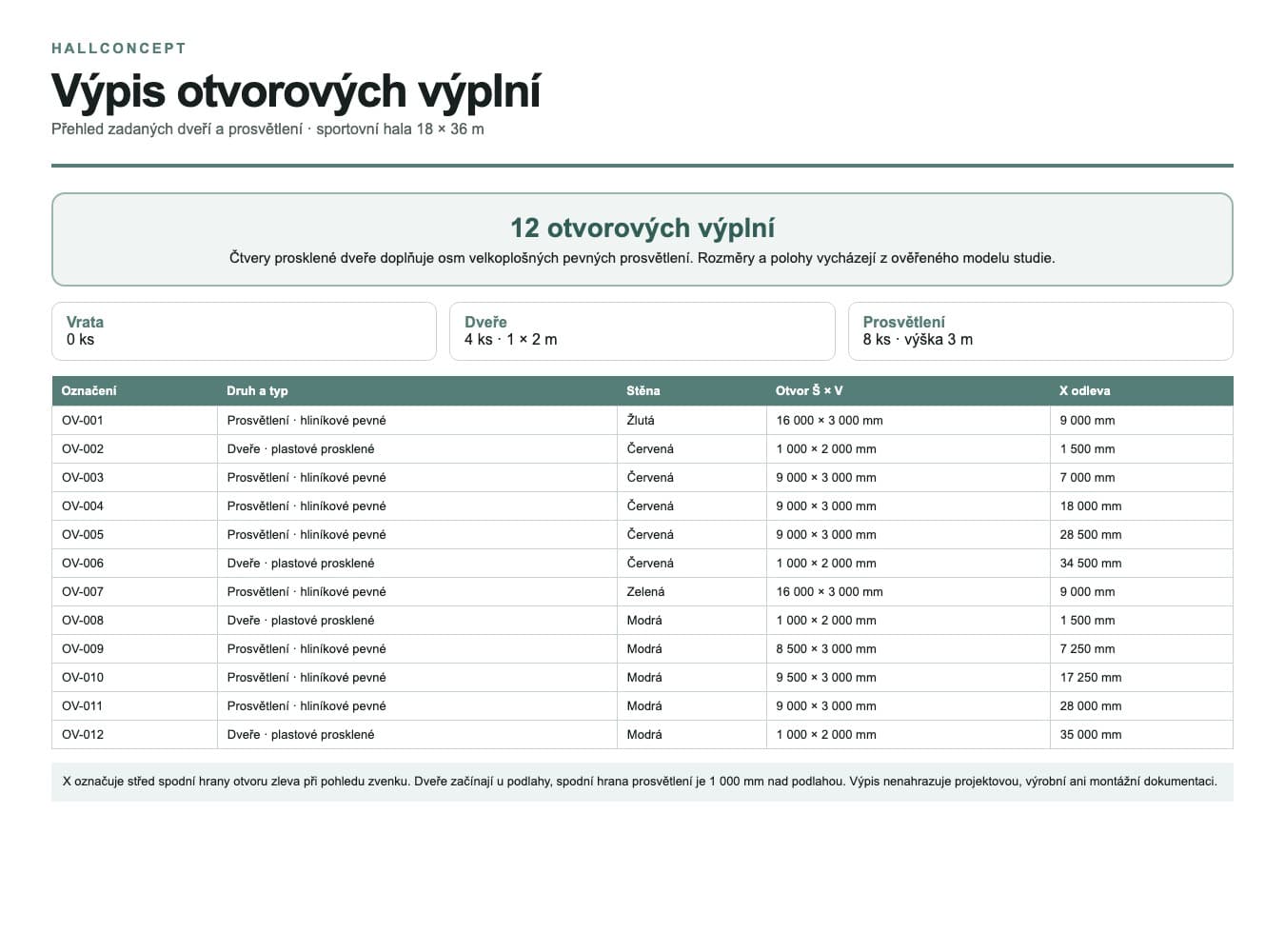

Schedule of openings
4 glazed doors · 8 fixed translucent panels
Schedule of quantities

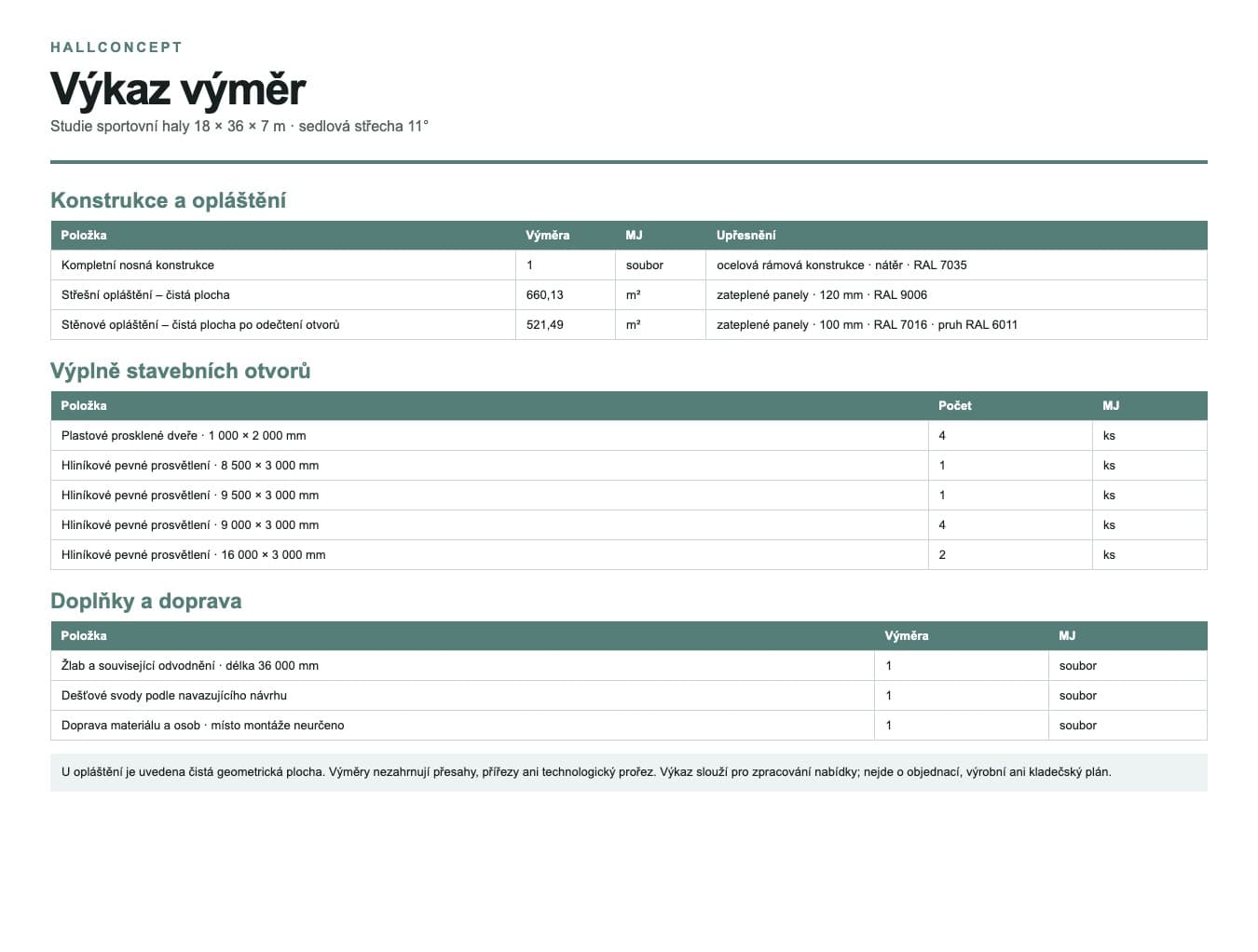

Schedule of quantities · 648 m²
Your own design
What you can change in the Studio.
Compare the envelope dimensions with the clear sports area, safety clearances and adjoining facilities.
01
Hall dimensions
Adjust the width, length and height to suit the site and intended operation.
02
Roof shape and pitch
Compare a suitable roof shape and its basic geometry.
03
Industrial doors, personnel doors and daylighting
Position openings according to the movement of people, vehicles and materials, and the need for daylight.
04
Cladding and appearance
Try different material and colour solutions for the external and roof cladding.
Brief answers
What to clarify for a Sports Hall.
Answers about dimensions, equipment and the next stage of design.
Is 18 × 36 m suitable for every sport?
No. This is a starting model. Confirm the clear dimensions and height according to the rules of the chosen sport and safety clearances.
Does the model include changing rooms and stands?
No. These facilities are designed according to capacity and may increase the required building footprint.
Can the hall height be changed?
Yes. You can adjust it in the Studio. The final height and structure must be checked by the designer according to the sport and local loads.
Continue designing
Adapt the Sports Hall to its actual use.
Open the model and compare the footprint, height and operational openings.
Technical report
Schedule of openings
Schedule of quantities
