Manufacturing Hall 15 × 30 m for a well-planned operation.

Start with a real issued model and check whether the dimensions, industrial doors and internal space suit the flow of materials, technologies and planned production growth.

Product visualisation of a 15 × 30 m Manufacturing Hall on a business site
Detail of the load-bearing steel structure of a manufacturing hall
Detail of the technical 3D model of an insulated manufacturing hall
Starting model

Key details in one place.

Five verified details describe the model that will open in the Studio.

  • 15 × 30 m · 450 m²
  • Wall height 5 m · ridge 6.5 m
  • Pitched roof · 11° pitch
  • 6 steel frames · 6 m spacing
  • 3 industrial doors · 2 personnel doors · 12 translucent panels

The details describe this starting model. It is a preliminary study, not structural design, fabrication or construction documentation.

Planning the operation

Check the production flow first, then change the hall.

The hall dimensions alone are not enough. The key issue is the relationship between material intake, workstations, storage and dispatch.

  1. 01

    Where does material enter, and where does it become a finished product?

  2. 02

    How much space do the equipment, operators and safe passageways require?

  3. 03

    Which industrial doors need to connect to intake, dispatch or external handling?

  4. 04

    Which side should retain the option for future operational expansion?

Edit in the Studio

Adapt the model to your actual production.

The Studio loads the verified 15 × 30 m hall. You can compare changes without starting from scratch.

Open this model in the Studio
Technical solution

What the starting model actually contains.

The description is based on the issued template and verified model documentation. Detailed technical assessment belongs to the relevant specialists.

Technical design of the model

The load-bearing structure consists of six transverse steel frames at six-metre centres. The clear internal space is ready for manufacturing, material handling and associated operational arrangements.

The roof cladding consists of 120 mm insulated sandwich panels in RAL 9006, while the wall cladding uses 100 mm panels in RAL 9007. The design includes three sectional overhead doors, two personnel doors and twelve translucent elements. This is a study; the final member sizes, foundations, anchorage and fire-safety design will be determined by the subsequent specialist design. The third image is an AI-generated product visualisation, not a photograph of a completed building.

Production technology is not included in the starting model.

The model addresses the basic form of the hall. The layout of machinery, services, cranes, fire compartments and other technologies must be added in a subsequent specialist design.

Study outputs

From the spatial model to the basis for a quotation.

The previews help you understand the geometry and scope of the study before opening the model in the Studio.

Model and external views

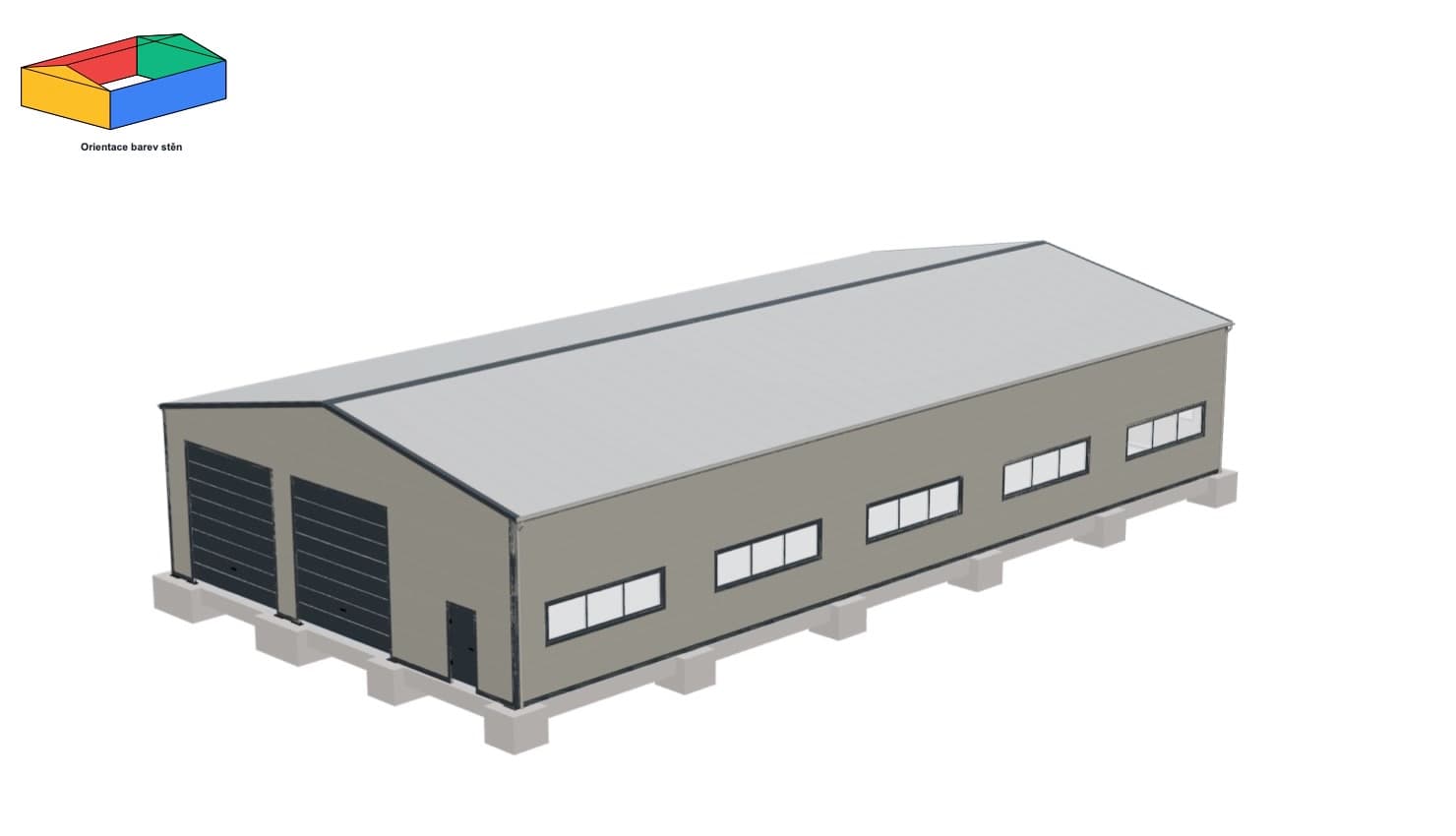

Spatial model · 15 × 30 × 5 m
Spatial model · 15 × 30 × 5 m

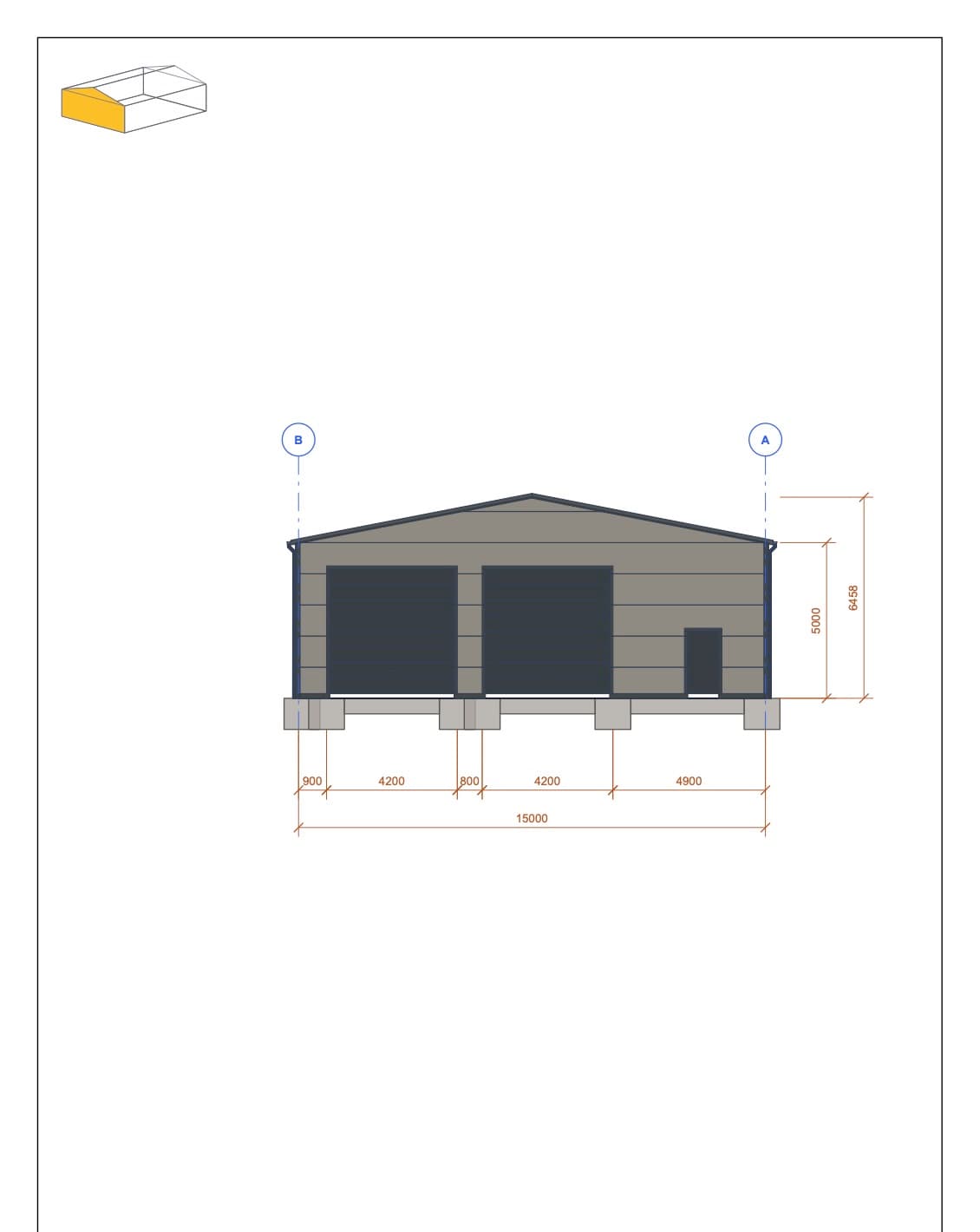

Front view · 15 m
Front view · 15 m

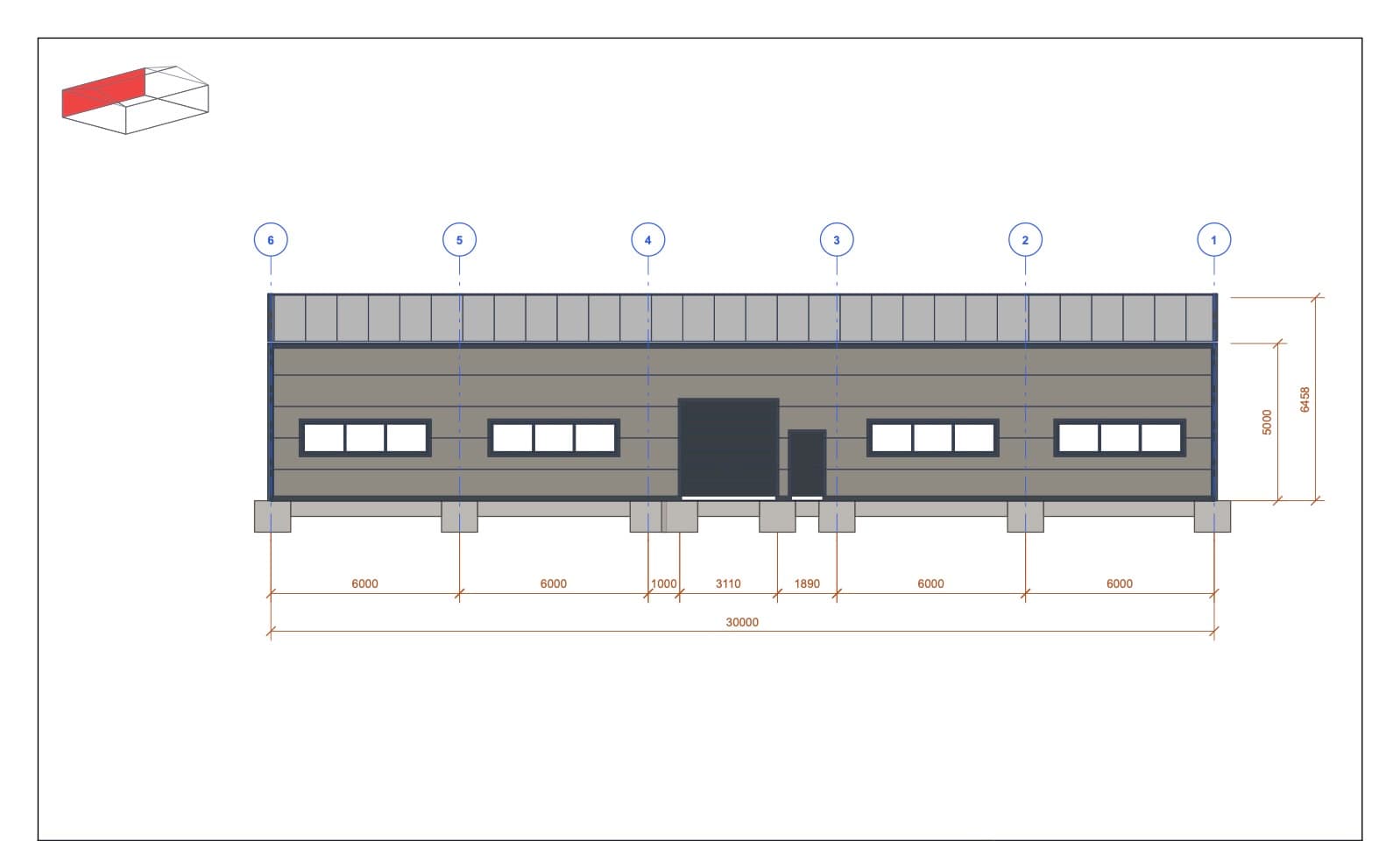

Side view with industrial doors · 30 m
Side view with industrial doors · 30 m

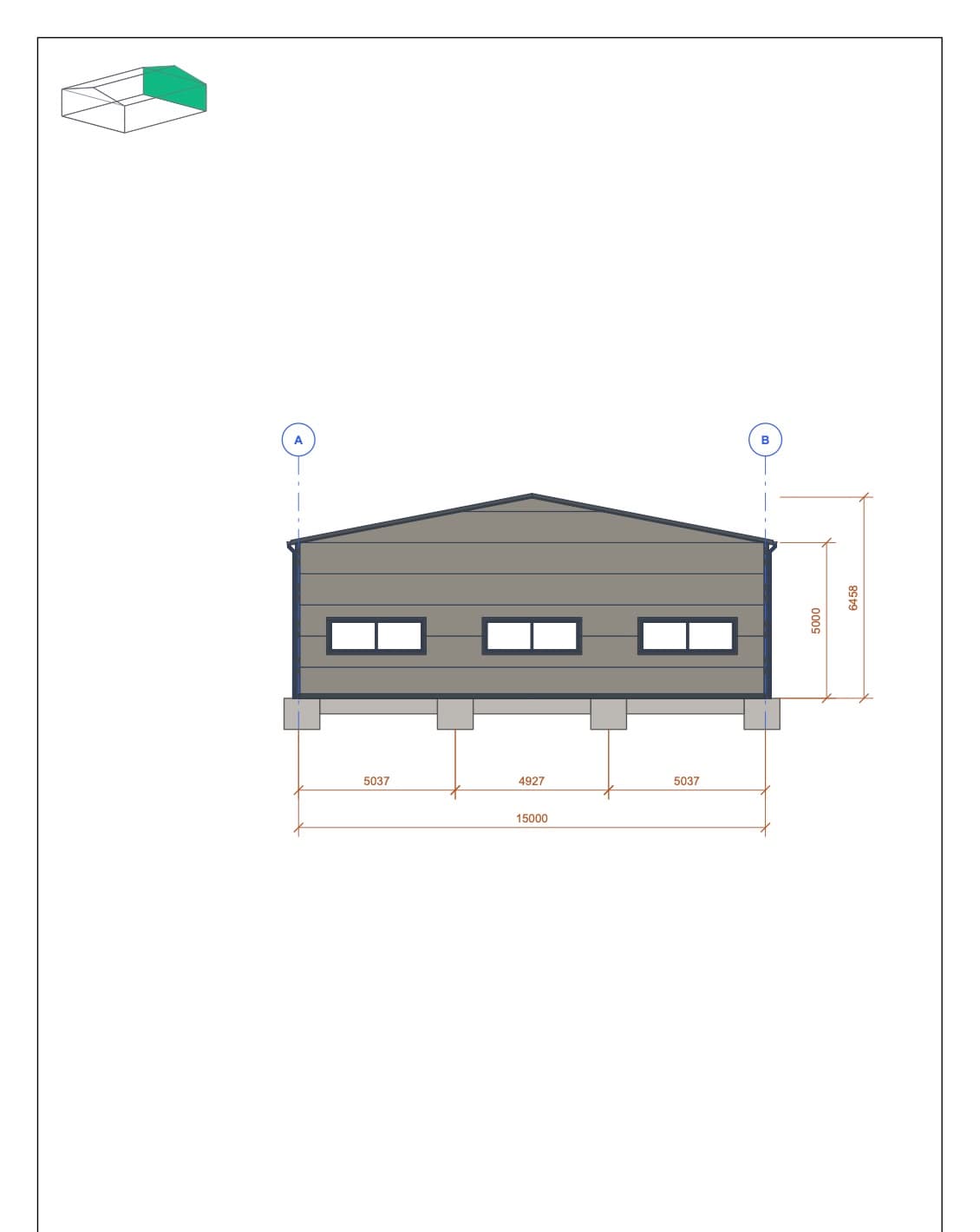

Rear view · 15 m
Rear view · 15 m

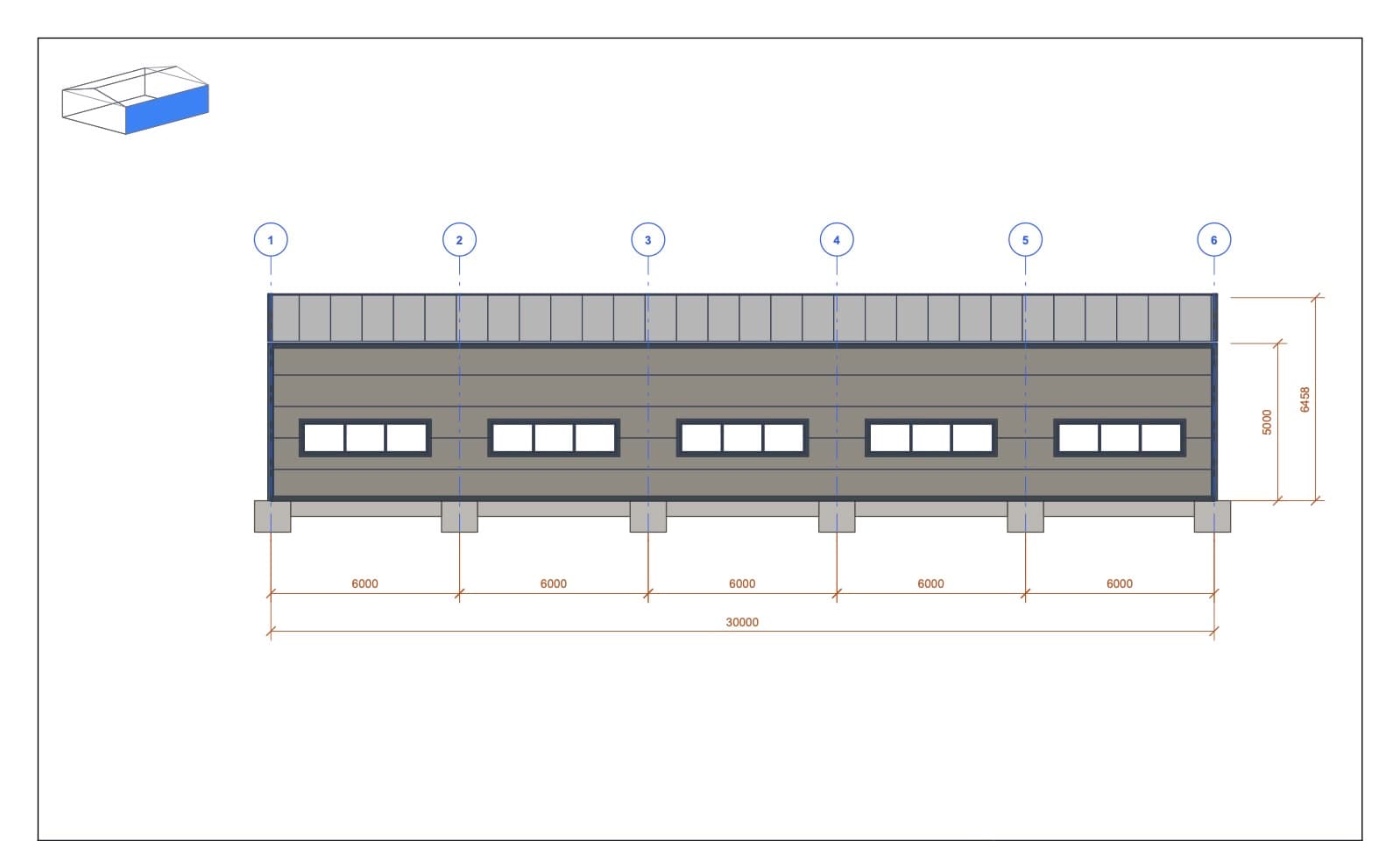

Side view · 30 m
Side view · 30 m

Layout, sections and foundations

Floor plan · 15 × 30 m
Floor plan · 15 × 30 m

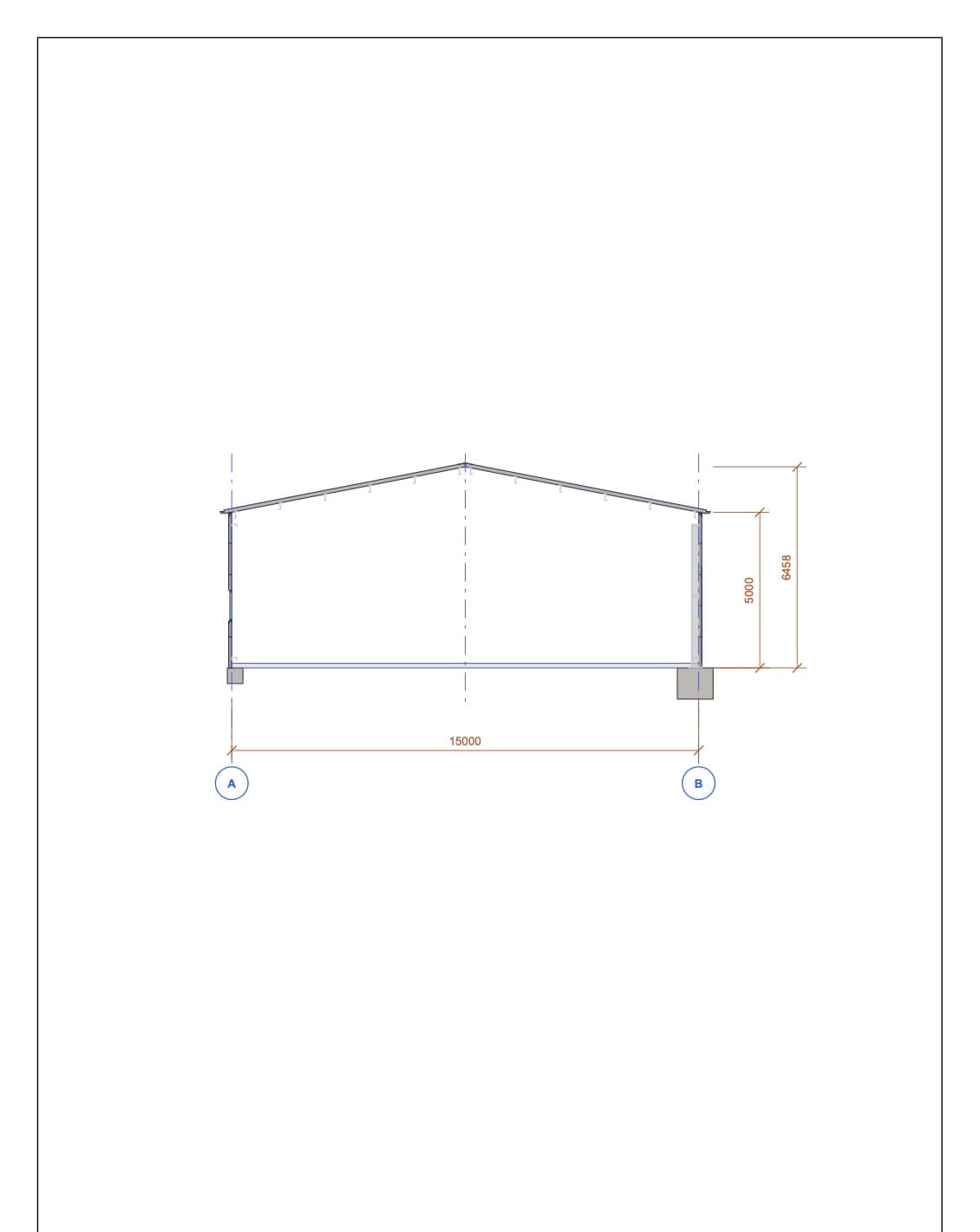

Cross-section · 15 m
Cross-section · 15 m

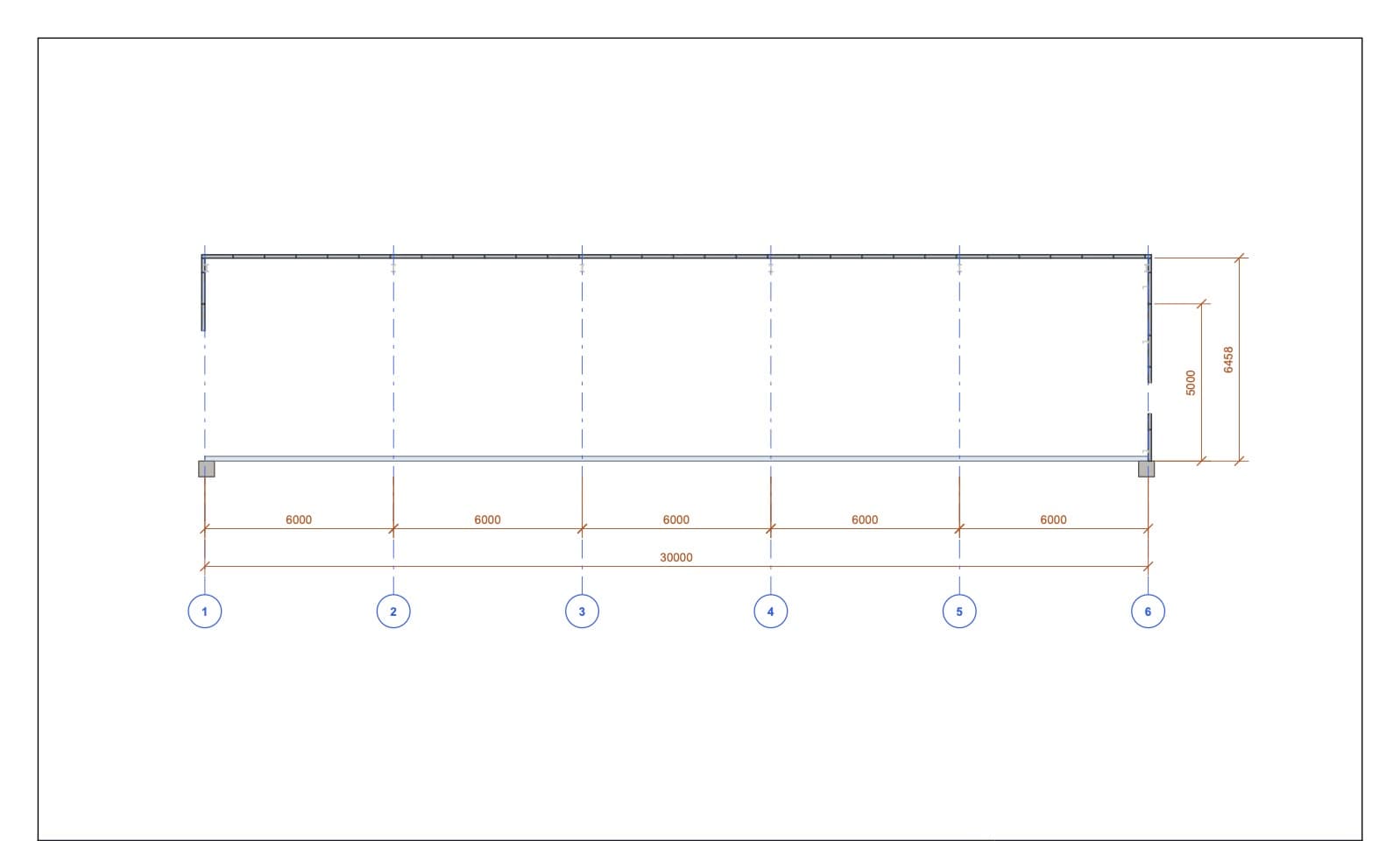

Longitudinal section · 30 m
Longitudinal section · 30 m

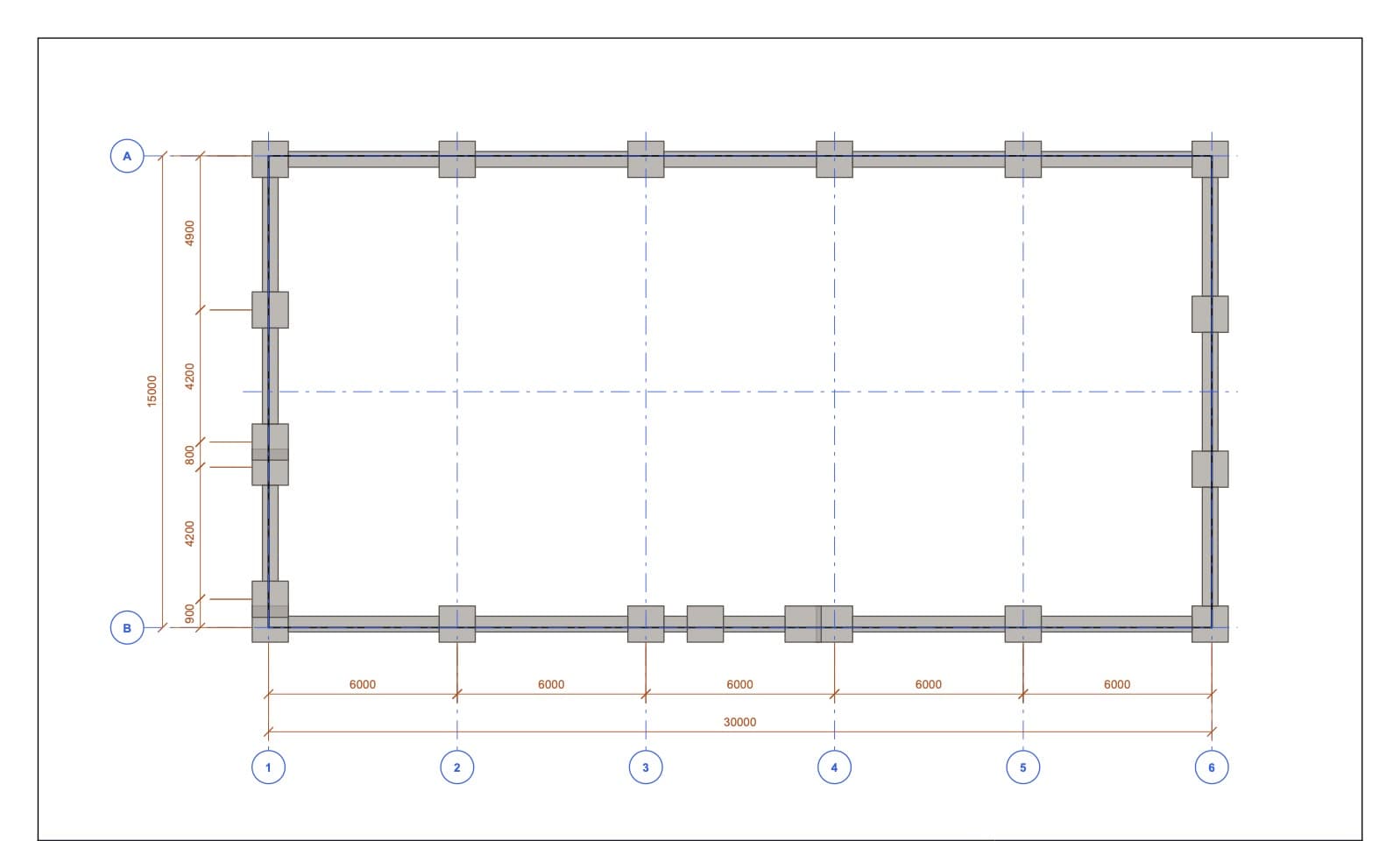

Foundations · 15 × 30 m
Foundations · 15 × 30 m

Technical description and schedules

These compact previews show the structure of each file. The labels describe what each document contains.

Technical report · 15 × 30 × 5 mTechnical report
Technical report · 15 × 30 × 5 m

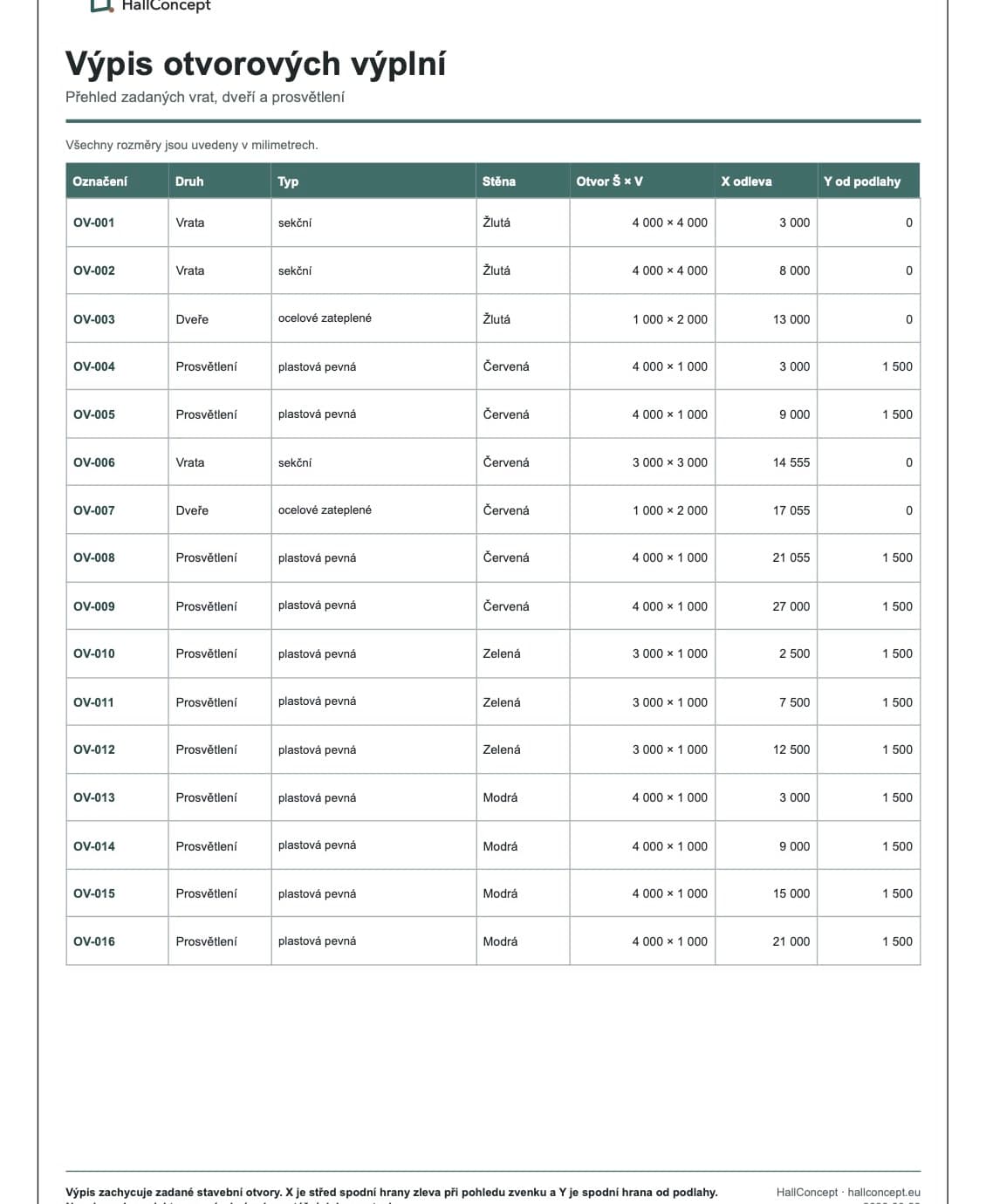

3 industrial doors · 2 personnel doors · 12 translucent panelsSchedule of openings
3 industrial doors · 2 personnel doors · 12 translucent panels

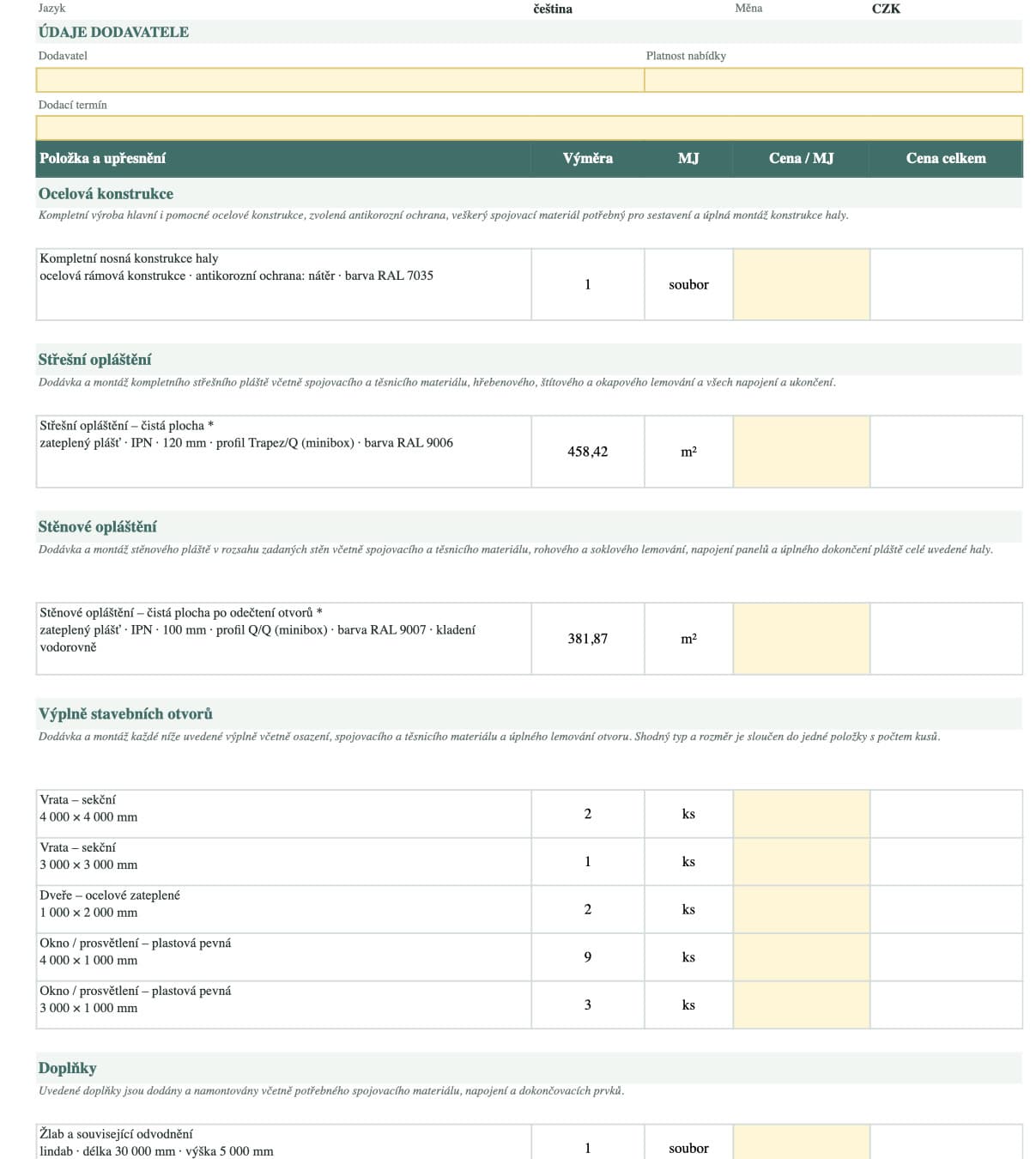

Schedule of quantities · 450 m²Schedule of quantities
Schedule of quantities · 450 m²
Your own design

What you can change in the Studio.

For a Manufacturing Hall, consider every change together with material flow, equipment locations and scope for development.

01

Hall dimensions

Adjust the width, length and height to suit the site and intended operation.

02

Roof shape and pitch

Compare a suitable roof shape and its basic geometry.

03

Industrial doors, personnel doors and daylighting

Position openings according to the movement of people, vehicles and materials, and the need for daylight.

04

Cladding and appearance

Try different material and colour solutions for the external and roof cladding.

Brief answers

What to clarify for a Manufacturing Hall.

Three answers about using the model and planning the next steps.

Are the dimensions 15 × 30 m fixed?

No. This is a verified starting model. In the Studio you can change the footprint, height, roof and openings.

Does the study include the production technology layout?

No. The study shows the basic hall. A specialist must provide the technology design and its requirements for the specific production process.

What can I use the technical outputs for?

They will help you explain the proposal to a designer, supplier or other partners. They do not replace design documentation.
