Logistics Hall 24 × 60 m for a smooth flow of goods.
Use the specific model to check how the footprint, industrial doors and open space support receipt, storage, picking and dispatch without unnecessary route crossings.
Starting model
Key details in one place.
The model is a specific starting point for a large storage and dispatch operation.
The description is based on the issued template and verified model documentation. Detailed technical assessment belongs to the relevant specialists.
Technical design of the model
The load-bearing structure consists of eleven transverse steel frames at six-metre centres. The clear internal space of 1,440 m² is ready for storage, handling and dispatch along the nine loading-bay doors.
The mono-pitch roof with a 2° pitch consists of 120 mm insulated sandwich panels in RAL 9006, while the wall cladding uses 100 mm panels in RAL 9007. The design includes nine sectional overhead doors, two personnel doors and six translucent elements. This is a study; the final member sizes, foundations, anchorage and fire-safety design will be determined by the subsequent specialist design. The third image is an AI-generated product visualisation, not a photograph of a completed building.
Racking and handling technology require a separate design.
The starting model does not specify the type of racking, floor load capacity, loading docks or automation. These elements must be developed for the specific logistics operation.
Study outputs
From the spatial model to the basis for a quotation.
The previews help you understand the geometry and scope of the study before opening the model in the Studio.
Model and external views

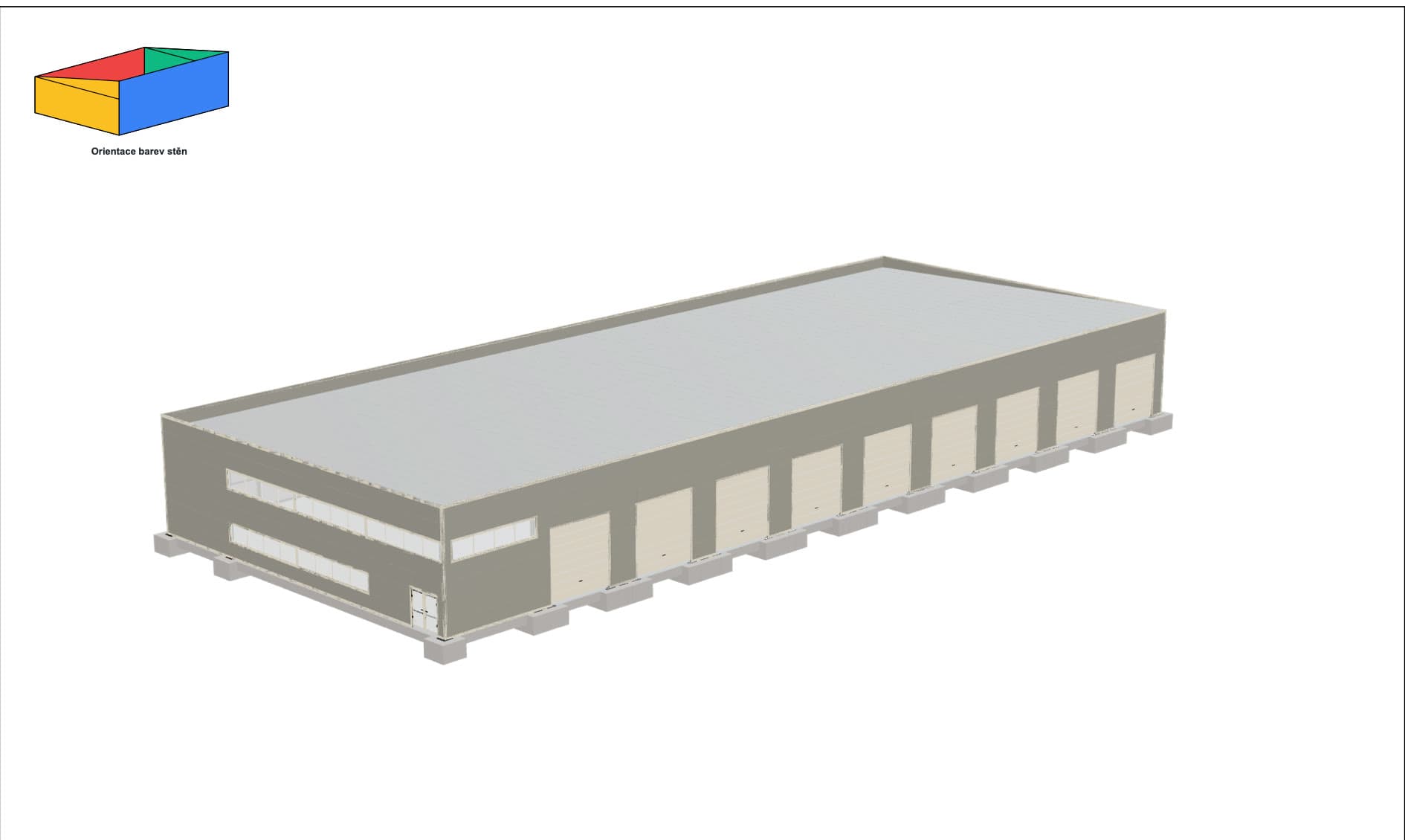

Spatial model · 24 × 60 × 6 m

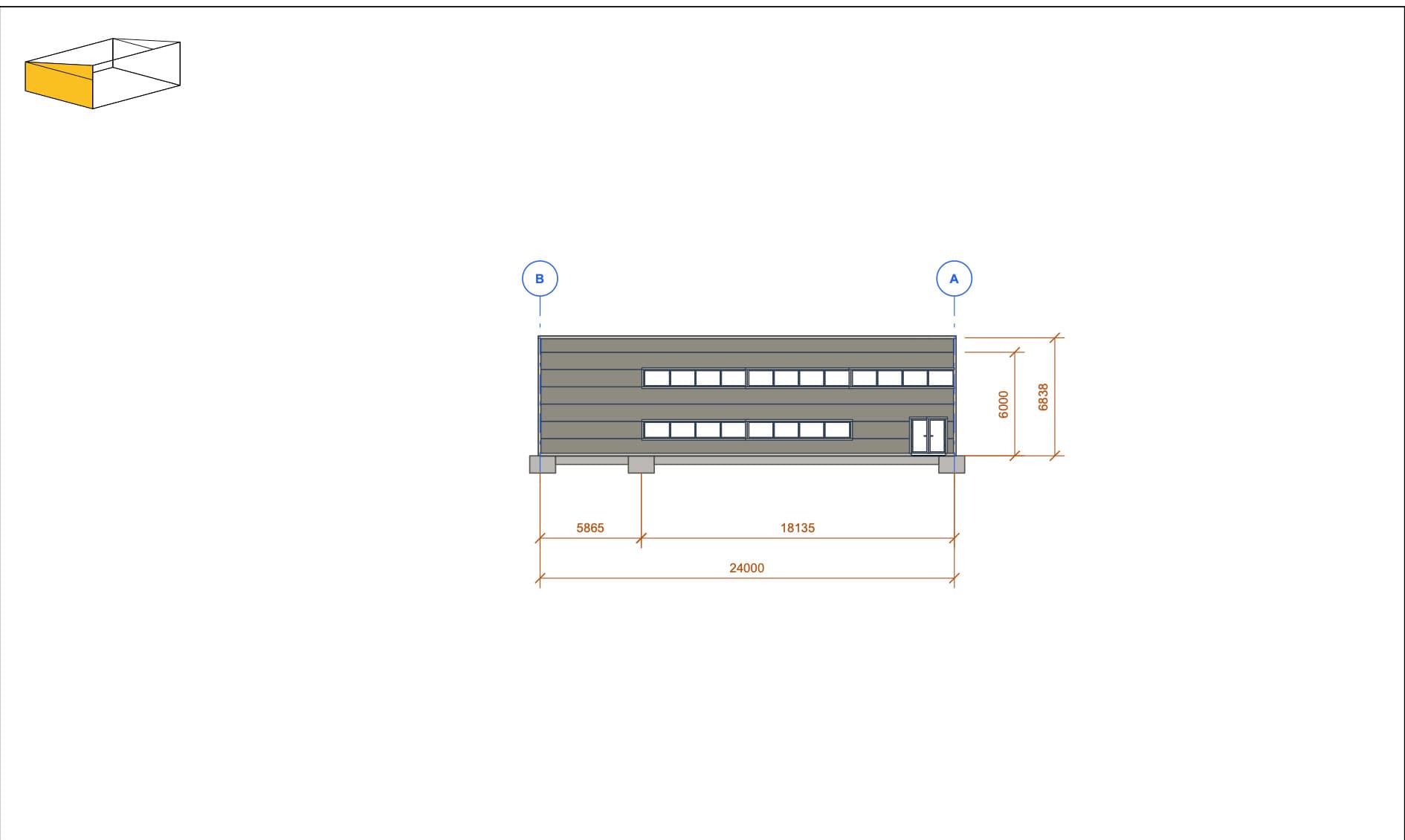

Front view · 24 m

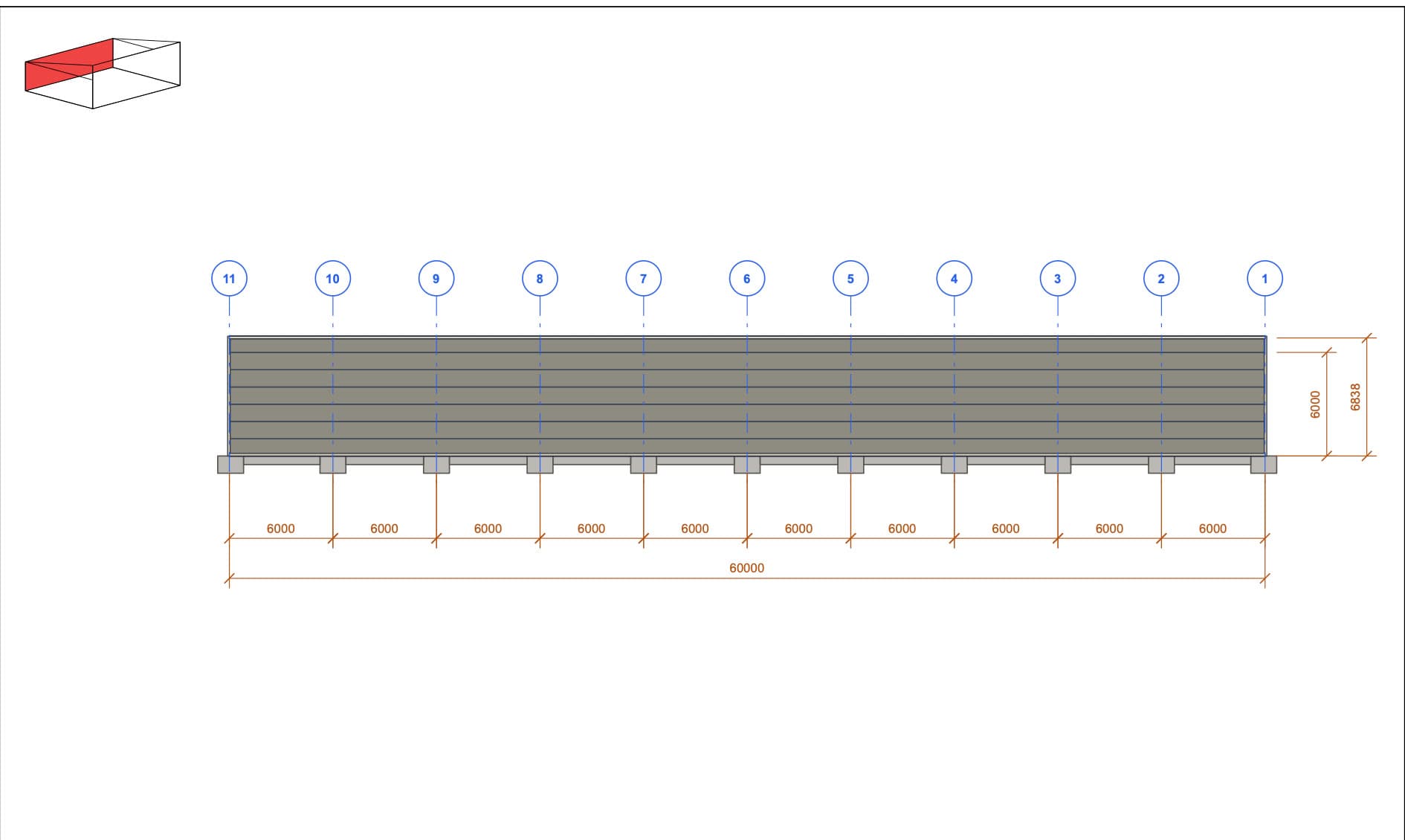

Side view · 60 m

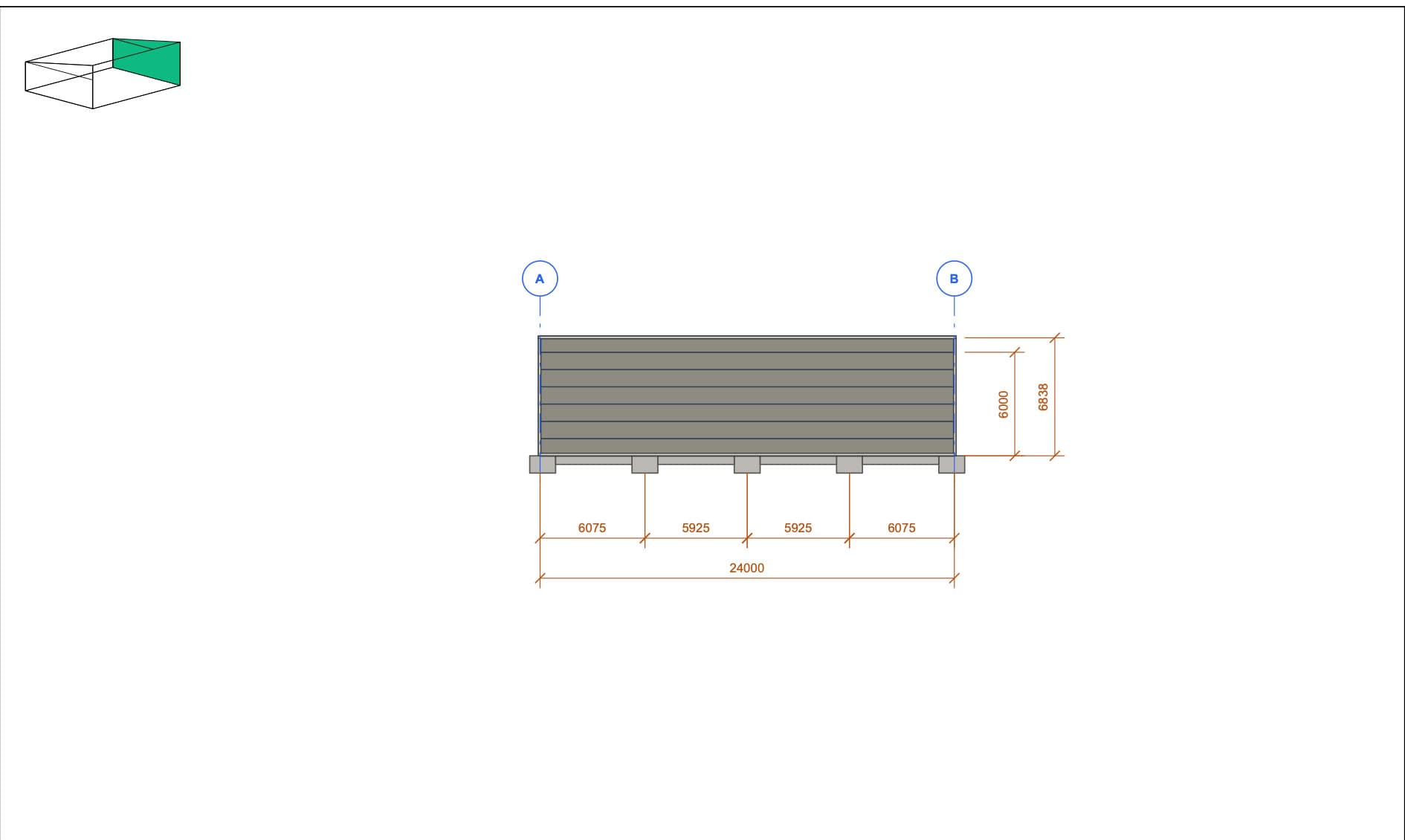

Rear view · 24 m

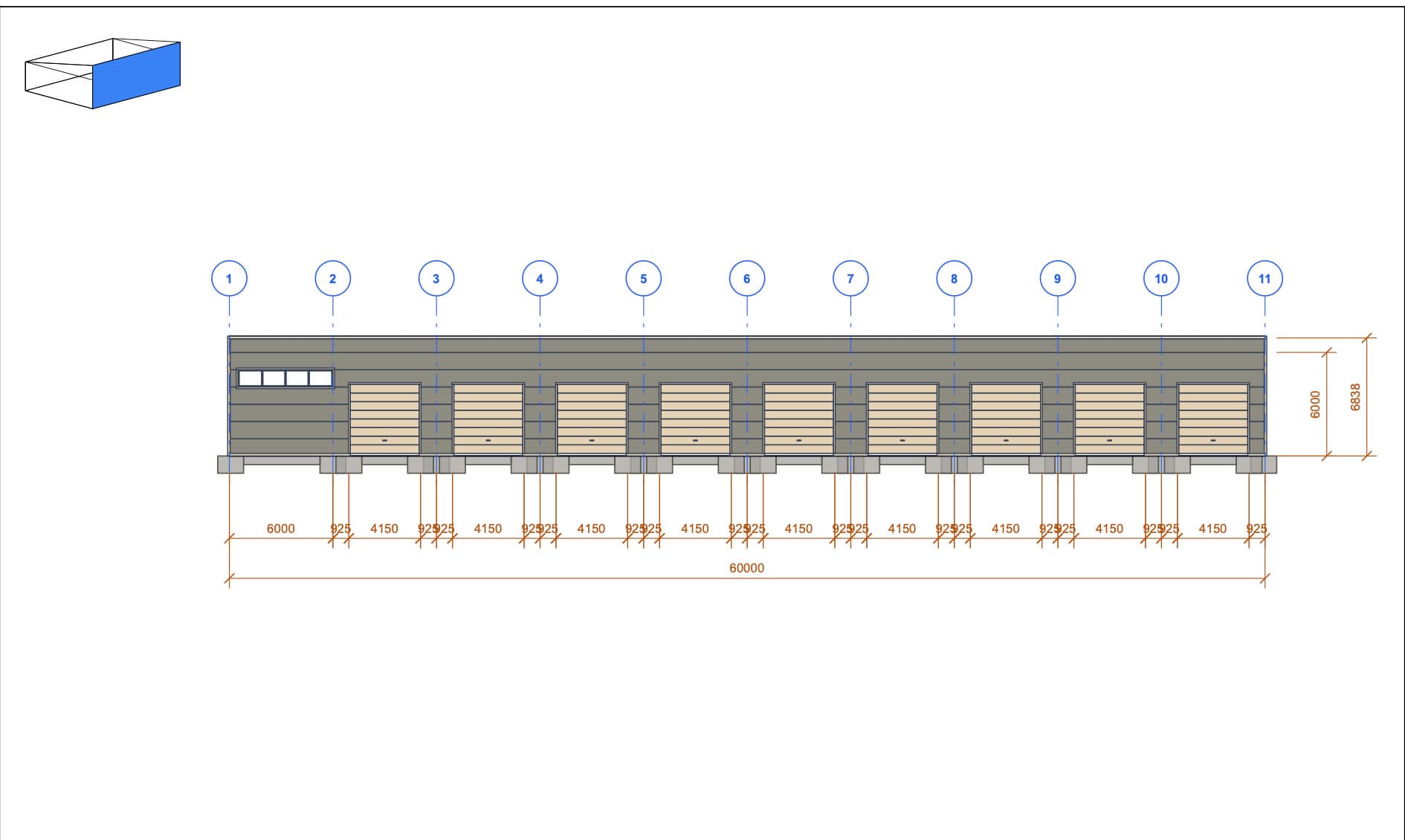

Side view with 9 industrial doors · 60 m
Layout, sections and foundations
Floor plan · 24 × 60 m

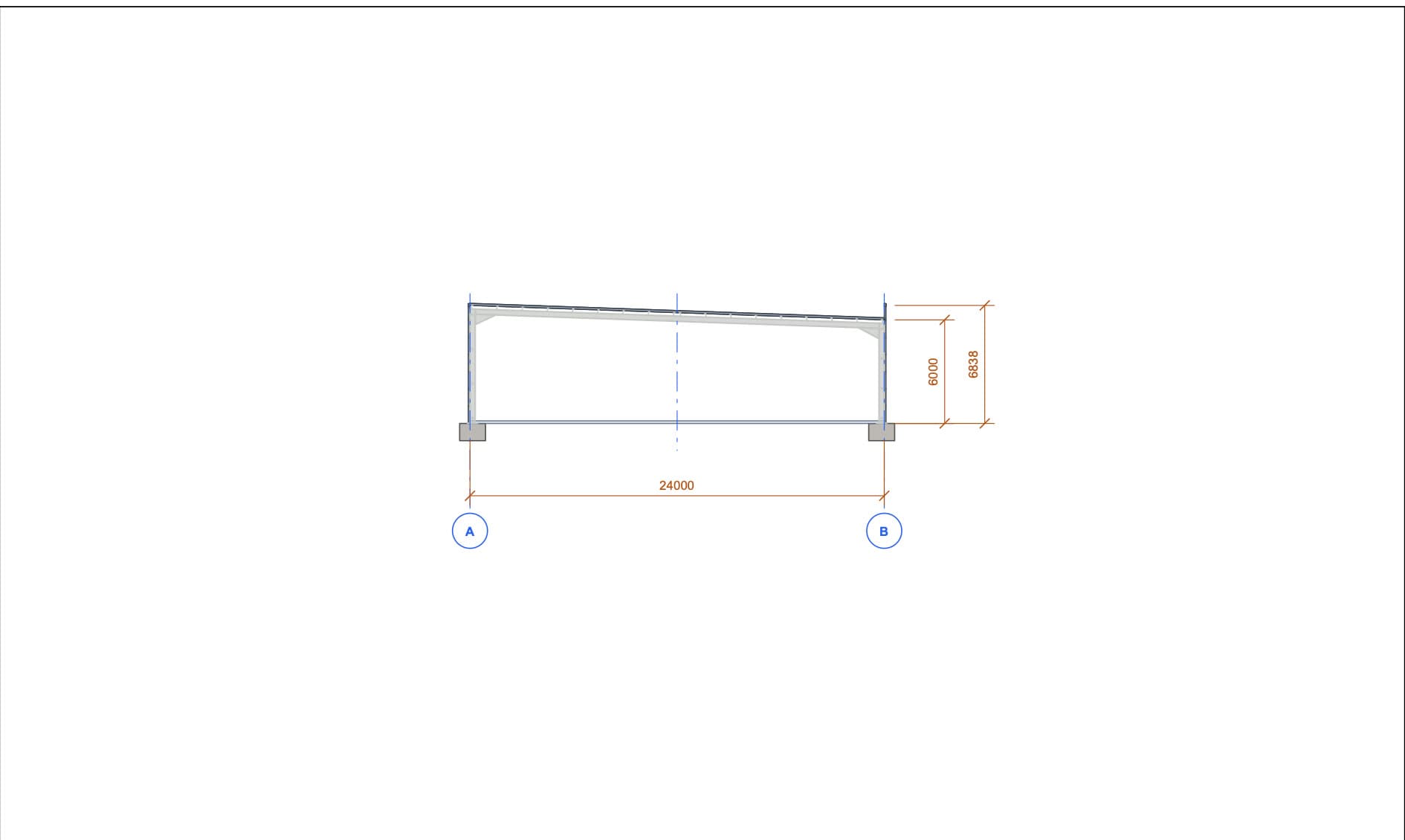

Cross-section · 24 m

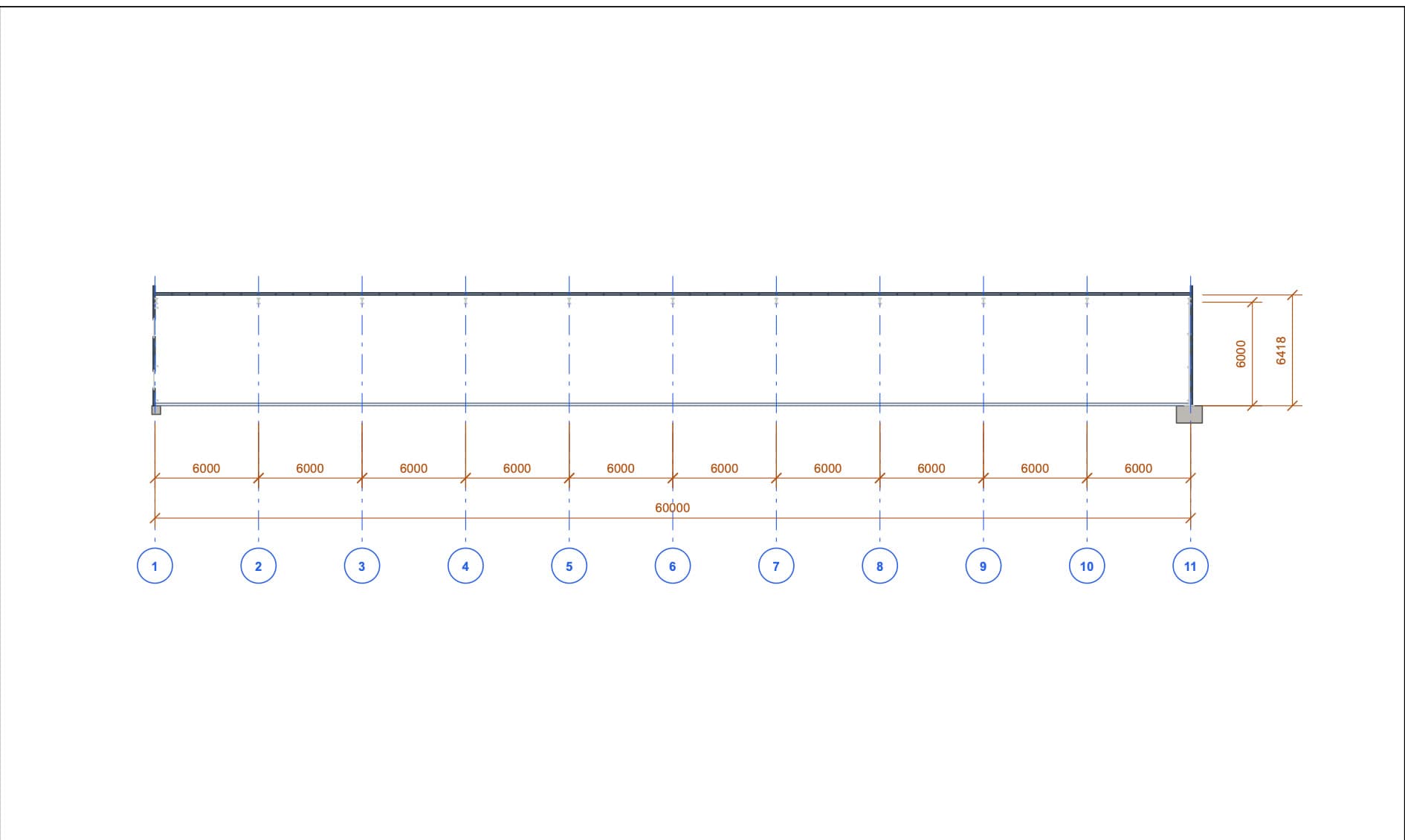

Longitudinal section · 60 m

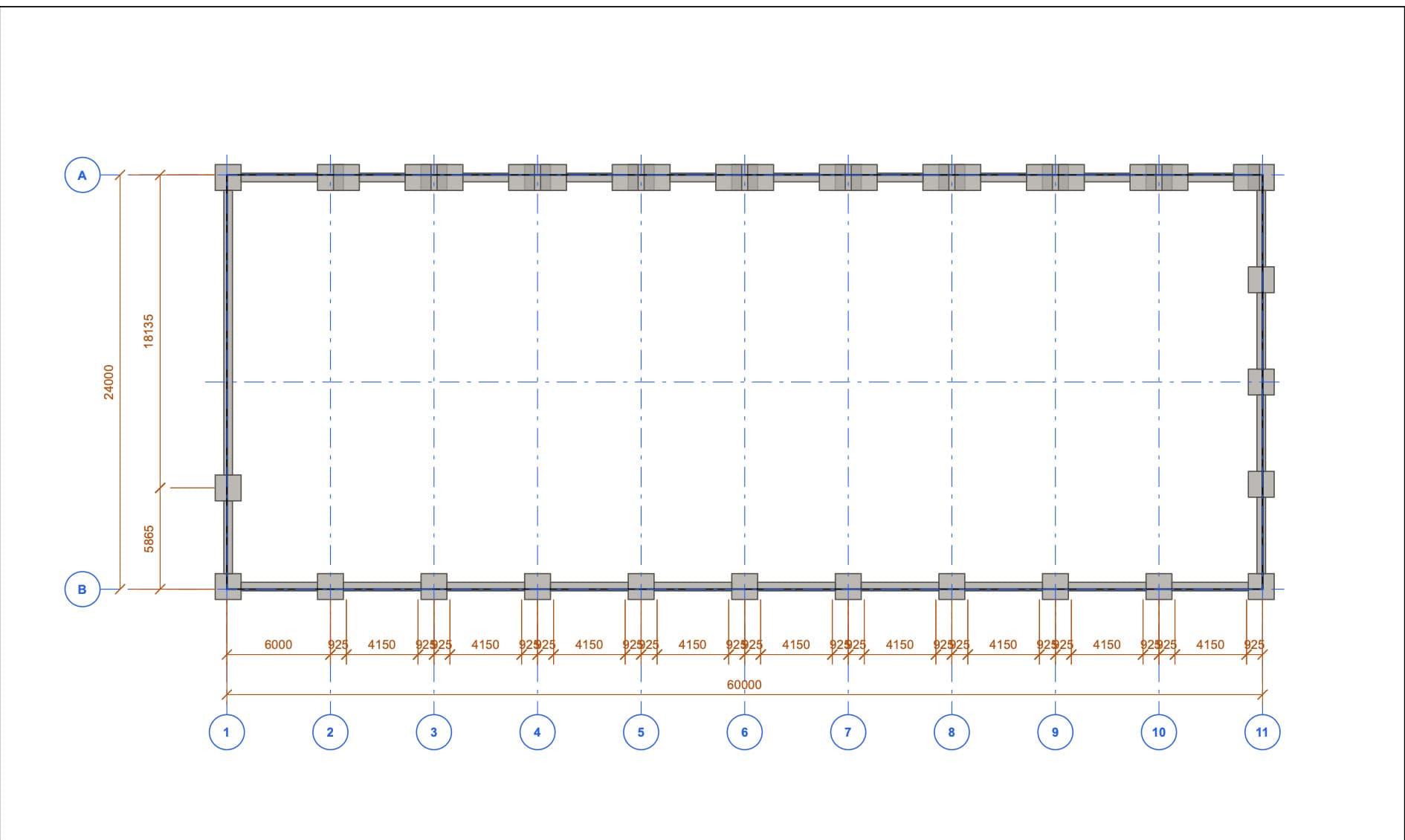

Foundations · 24 × 60 m
Technical description and schedules
These compact previews show the structure of each file. The labels describe what each document contains.
Compare every change with vehicle routes, storage aisles and the safe separation of people from equipment.
01
Hall dimensions
Adjust the width, length and height to suit the site and intended operation.
02
Roof shape and pitch
Compare a suitable roof shape and its basic geometry.
03
Industrial doors, personnel doors and daylighting
Position openings according to the movement of people, vehicles and materials, and the need for daylight.
04
Cladding and appearance
Try different material and colour solutions for the external and roof cladding.
Brief answers
What to clarify for a Logistics Hall.
Basic answers before changing the footprint and openings.
Can I change the number and position of the industrial doors?
Yes. The Studio allows you to adjust the openings. Their final position must nevertheless be checked against vehicle routes, fire safety and the structure.
Does the model also design the storage racking?
No. The model addresses the basic form of the hall. The racking system, floor and handling equipment must be designed separately.
Is the hall ready for future expansion?
The model can be adjusted dimensionally, but the specific direction and method of expansion must take the site, transport and structural solution into account.
Continue designing
Adapt the Logistics Hall to the flow of goods.
Open the starting model and check the footprint, industrial doors and handling space.
Technical report

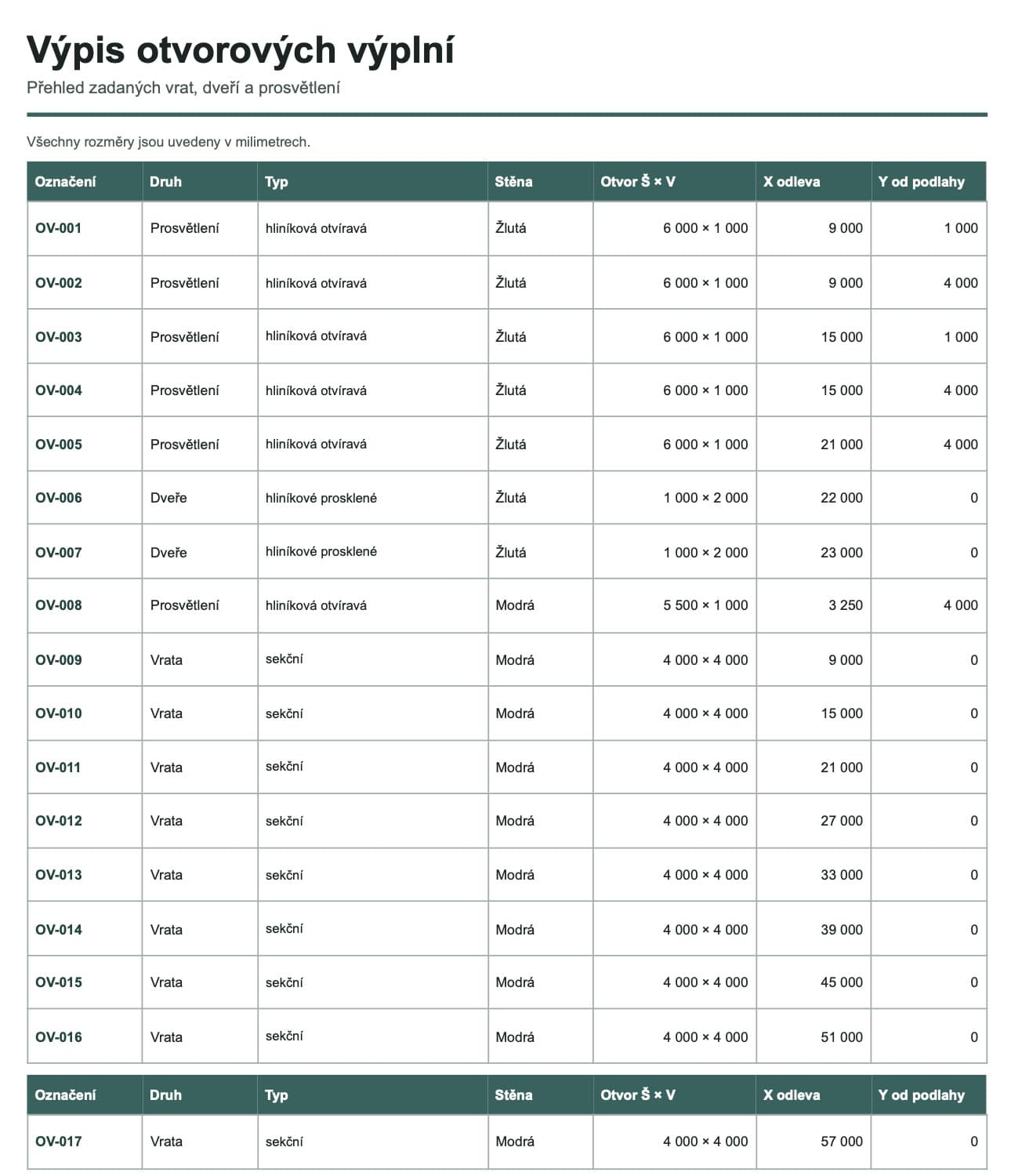

Schedule of openings

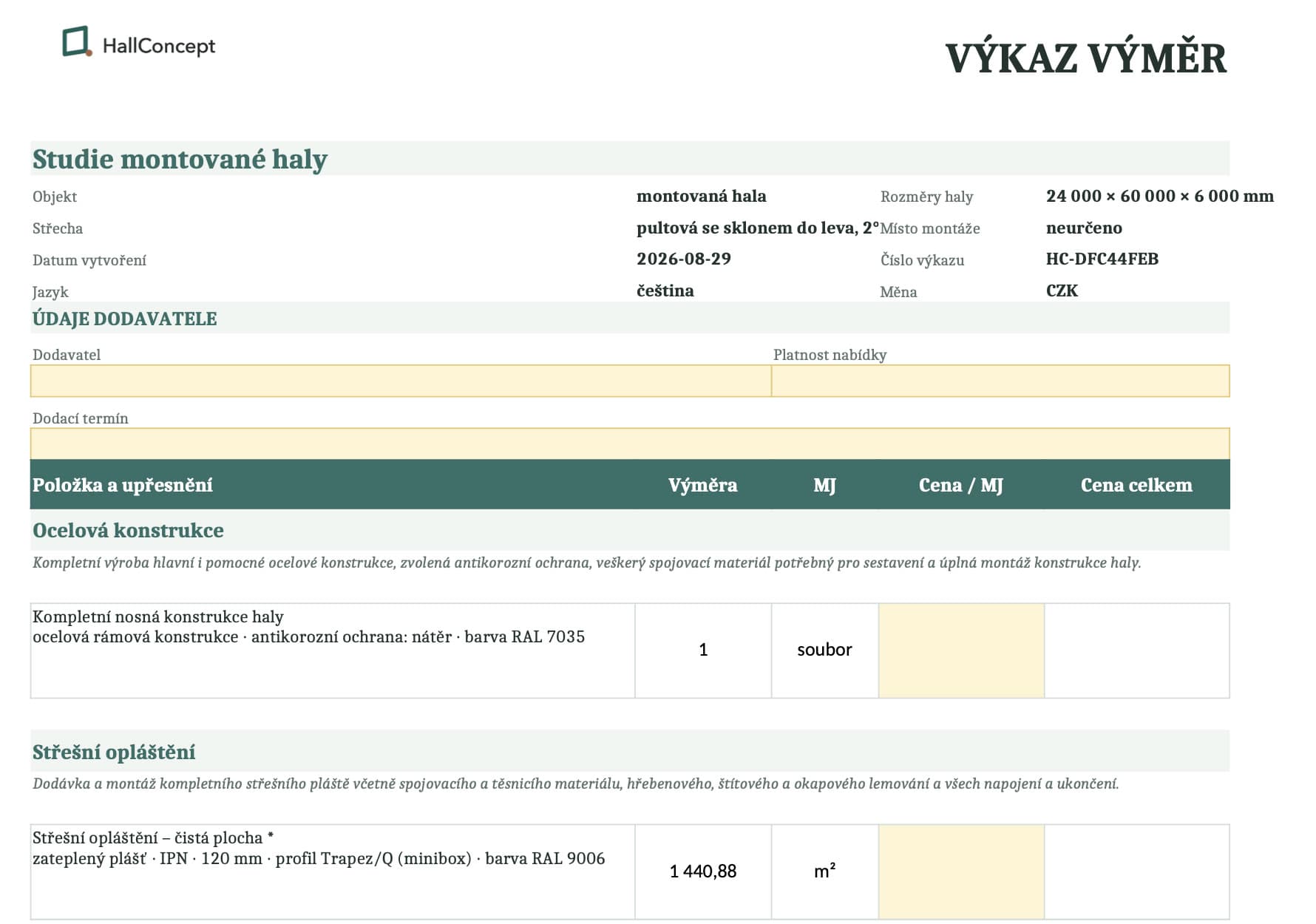

Schedule of quantities
