The model shows a simple covered solution without industrial doors, pedestrian doors or daylighting. Openness, orientation and operational layout must be adapted to the animals and local conditions.
Starting model
Key details in one place.
The starting model provides 450 m² of covered space with open sides.
15 × 30 m · 450 m²
Wall height 3 m · ridge 4.5 m
Pitched roof · 11° pitch
6 steel frames · 6 m spacing
No industrial doors, personnel doors or translucent panels
The details describe this starting model. It is a preliminary study, not structural design, fabrication or construction documentation.
Planning the operation
The shelter must provide protection while remaining safely accessible.
Consider animal movement, feeding, bedding, machinery and the direction of adverse weather. The hall size is only one part of the operational solution.
01
How many animals and which groups will the shelter serve?
02
How will animals, feed, bedding and machinery move through it safely?
03
Which sides should remain open and which should be protected from the weather?
04
How will the floor, drainage, ventilation and cleaning be handled?
Edit in the Studio
Adapt the covered area to the animals and staff.
The 15 × 30 m model can be changed dimensionally and supplemented according to the required degree of protection.
The description is based on the issued template and verified model documentation. Detailed technical assessment belongs to the relevant specialists.
Technical design of the model
The open shelter has a 15 × 30 m footprint, an area of 450 m² and six transverse frames at six-metre centres. The wall height is 3 m and the ridge reaches 4.5 m.
The 11° gable roof is covered with uninsulated TR 45/333 profiled steel sheeting in RAL 8014. TR 35/207 wall cladding in the same colour encloses only the gable triangles; the sides below the perimeter beams remain open. The design has no industrial doors, personnel doors or translucent panels. The third image is an AI-generated product visualisation, not a photograph of a completed building. This is a study; the final member sizes, foundations, anchorage and fire-safety design will be determined by the subsequent specialist design.
Animal welfare must be assessed by a specialist.
The model does not define capacity, welfare, ventilation, flooring, drainage, feeding or manure removal.
Study outputs
From the spatial model to clear documents for quotation discussions.
The previews help you understand the geometry and scope of the study before opening the model in the Studio.
Model and external views
Spatial model · 15 × 30 × 3–4.5 m

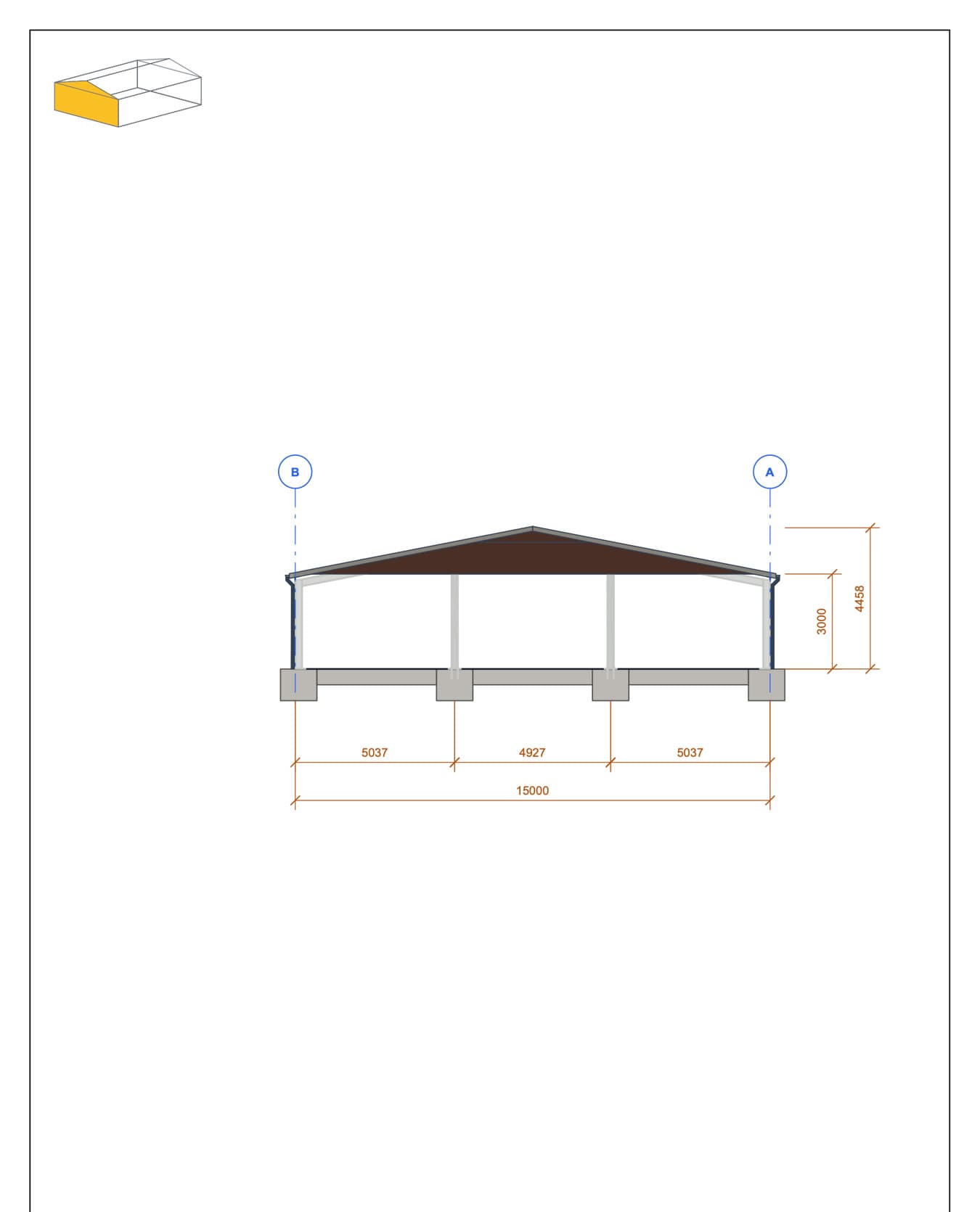

View of the yellow side · 15 m

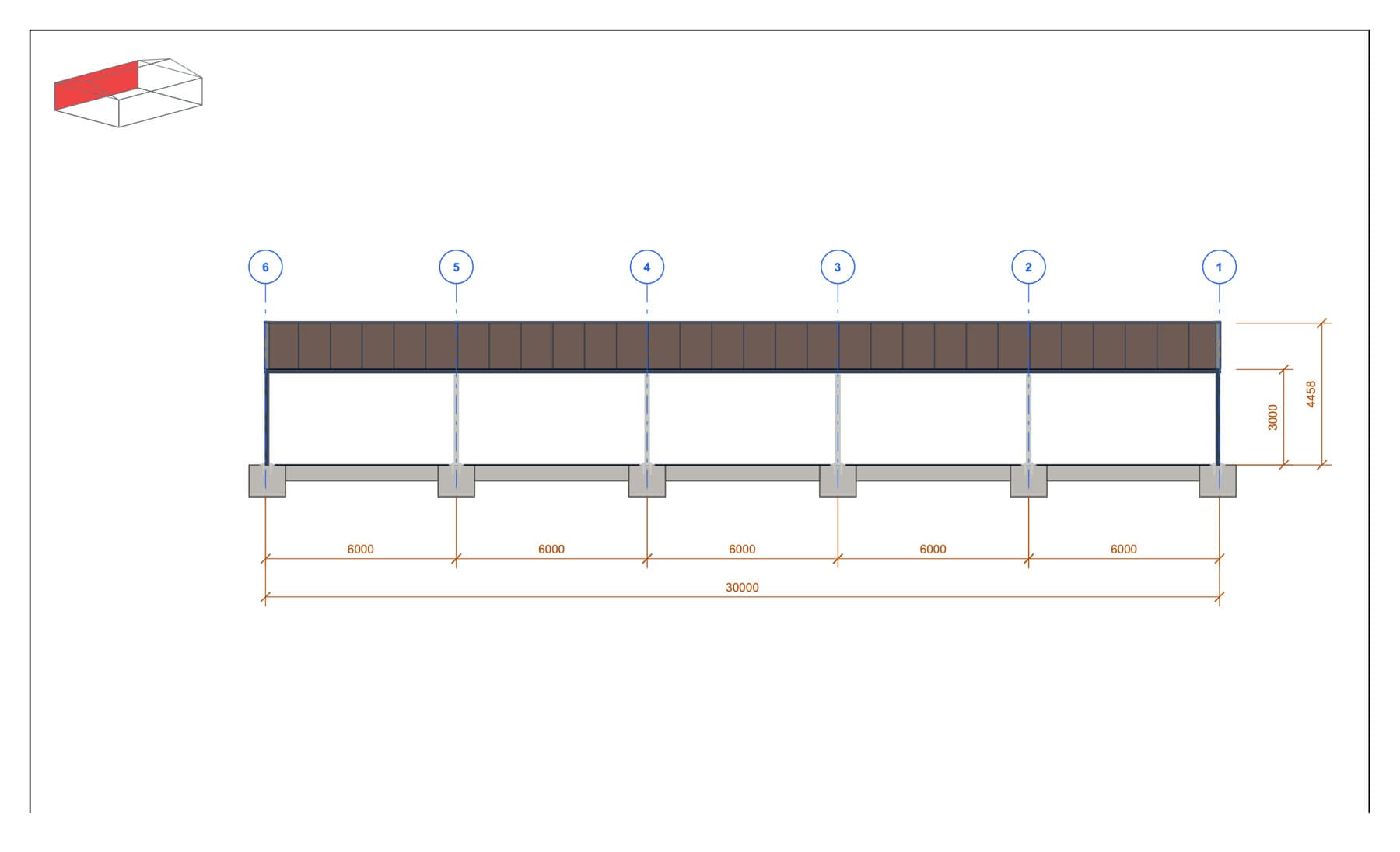

View of the red side · 30 m

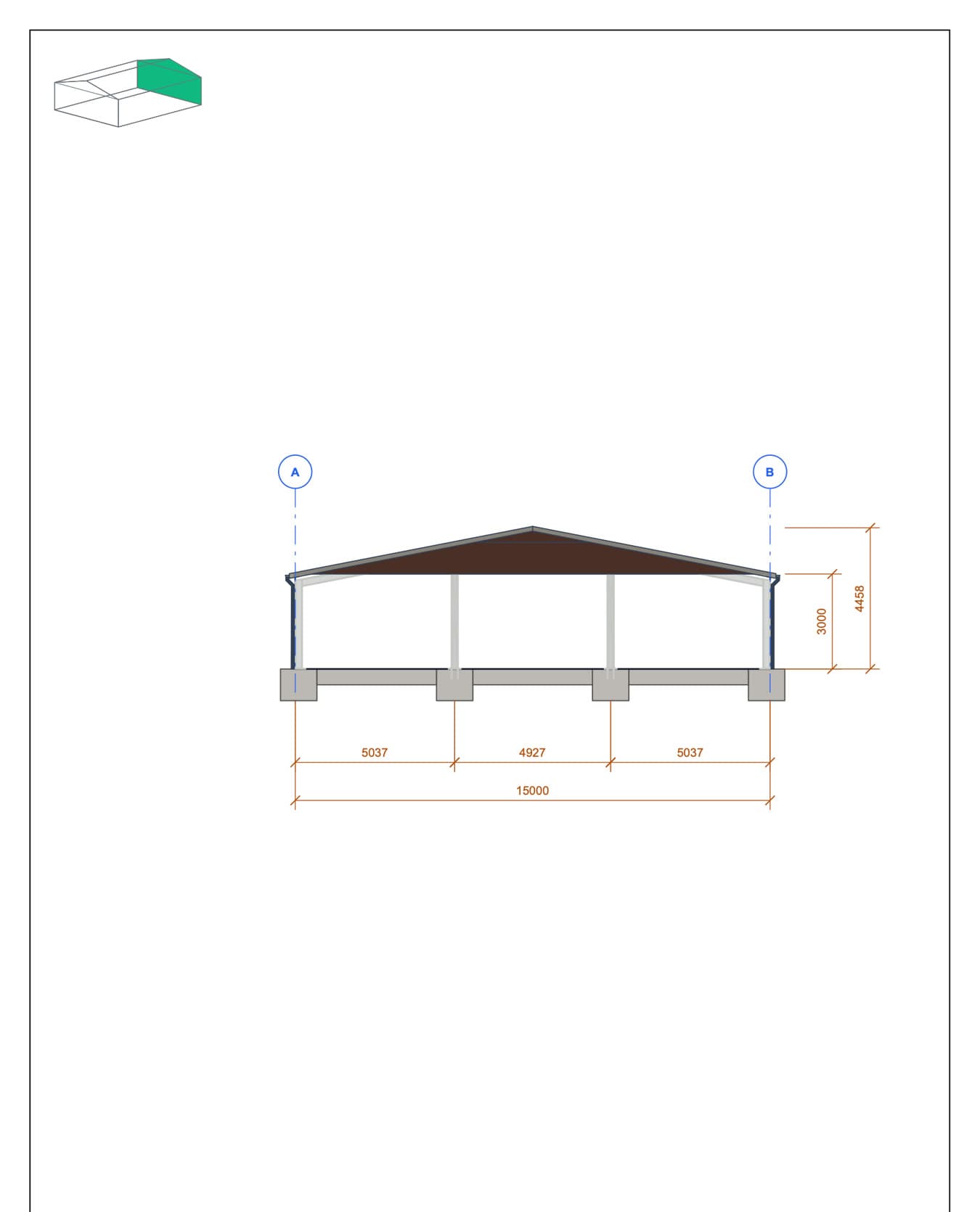

View of the green side · 15 m

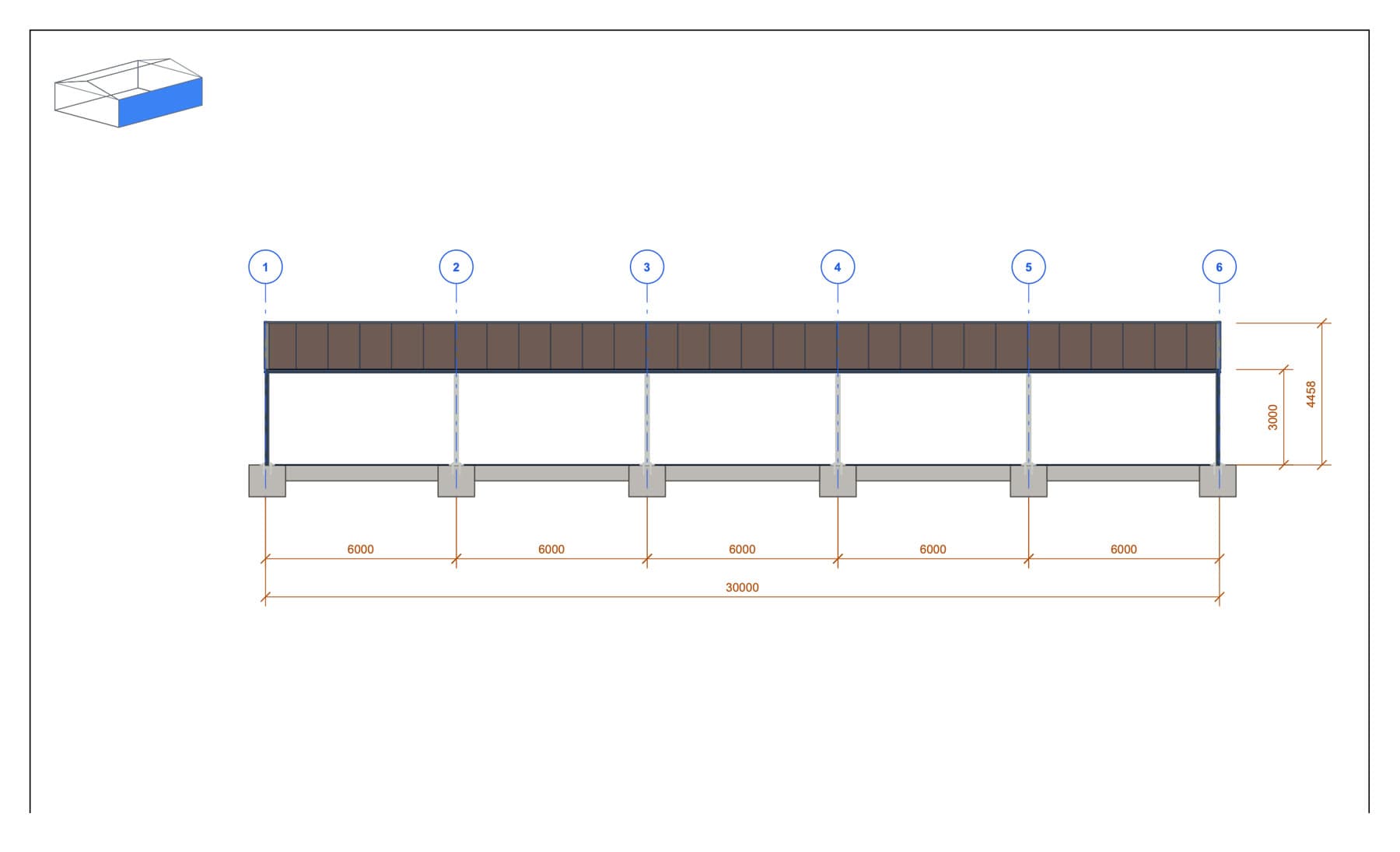

View of the blue side · 30 m
Layout, sections and foundations
Floor plan · 15 × 30 m

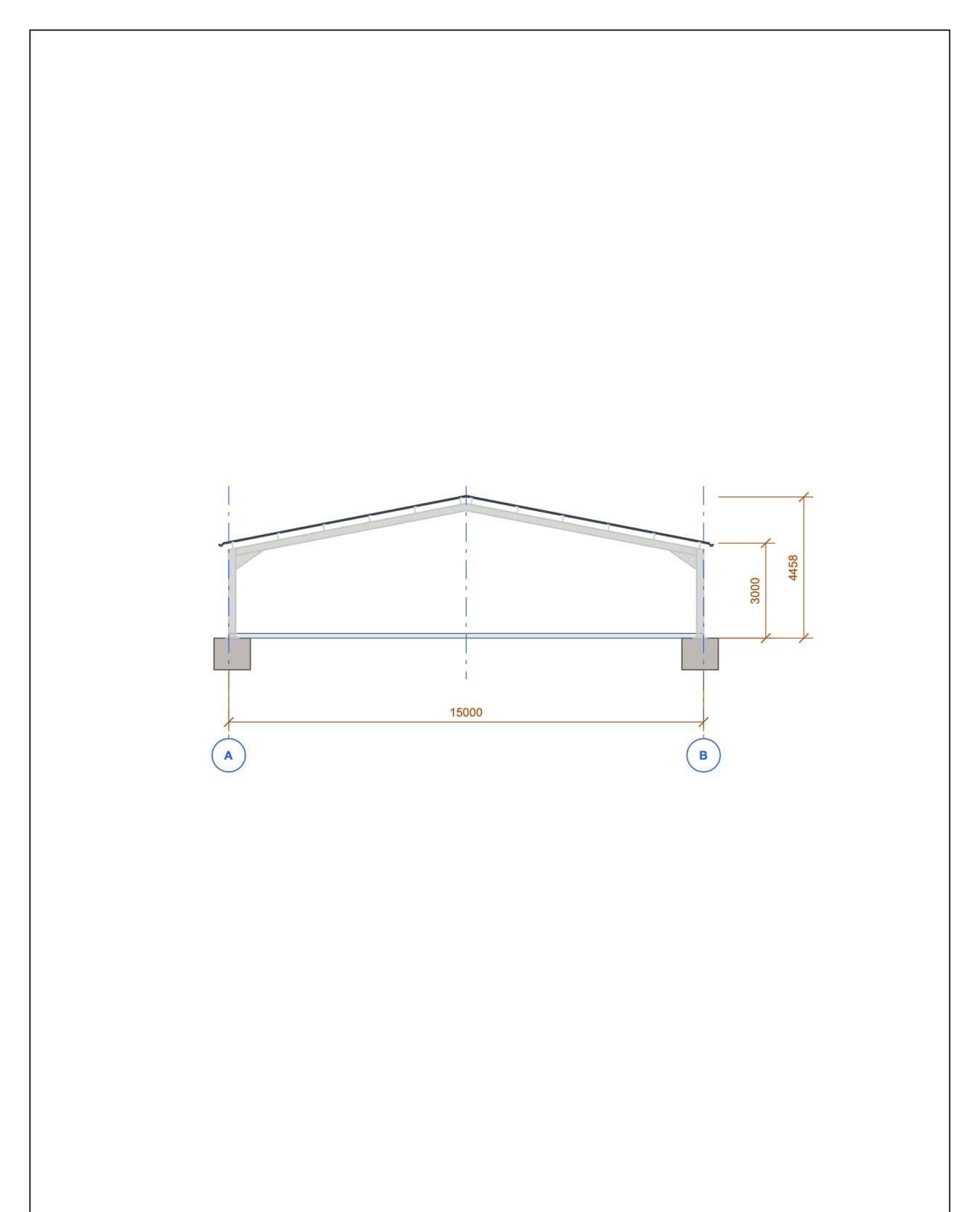

Cross-section · 15 × 3–4.5 m

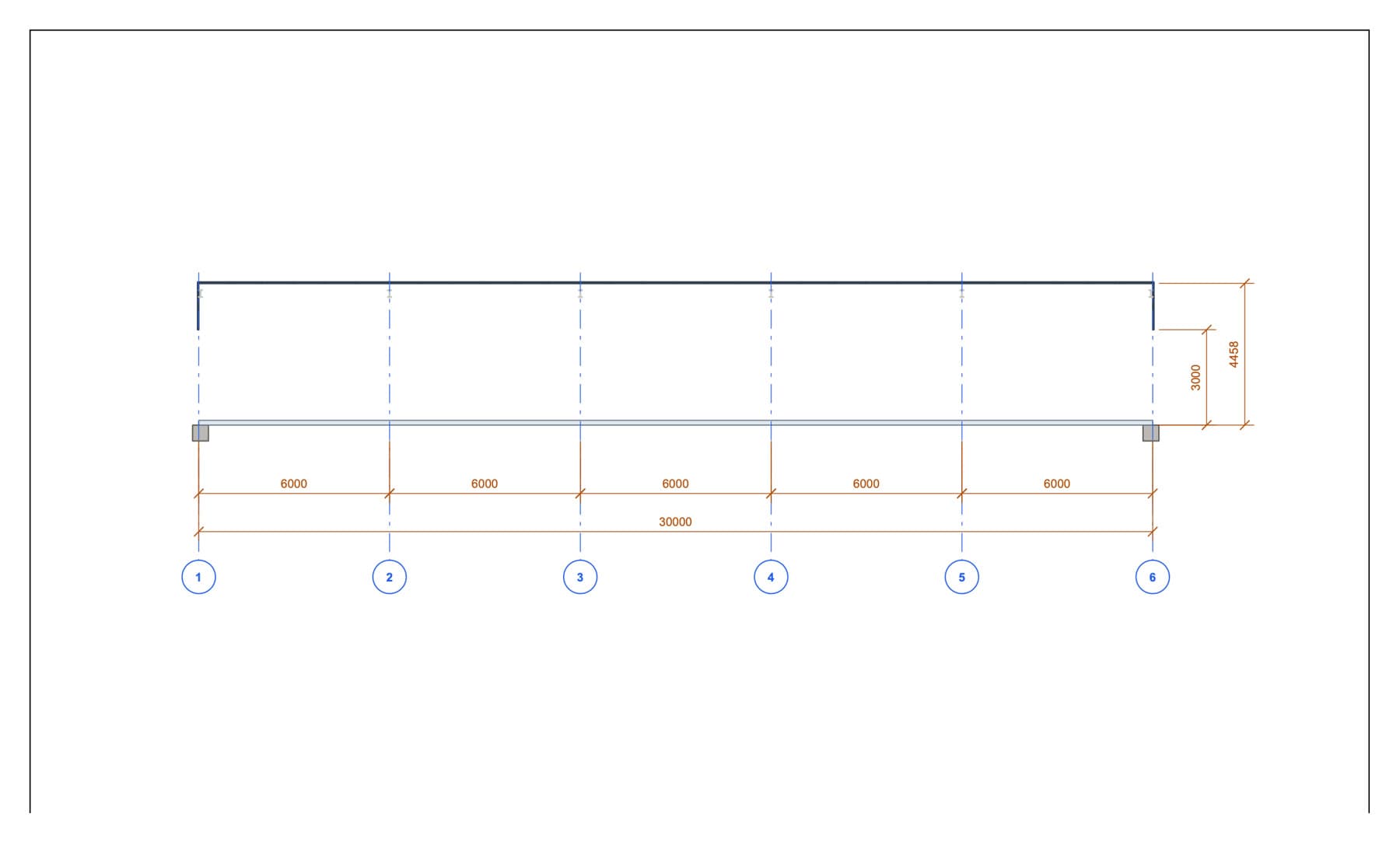

Longitudinal section · 30 m · 5 bays

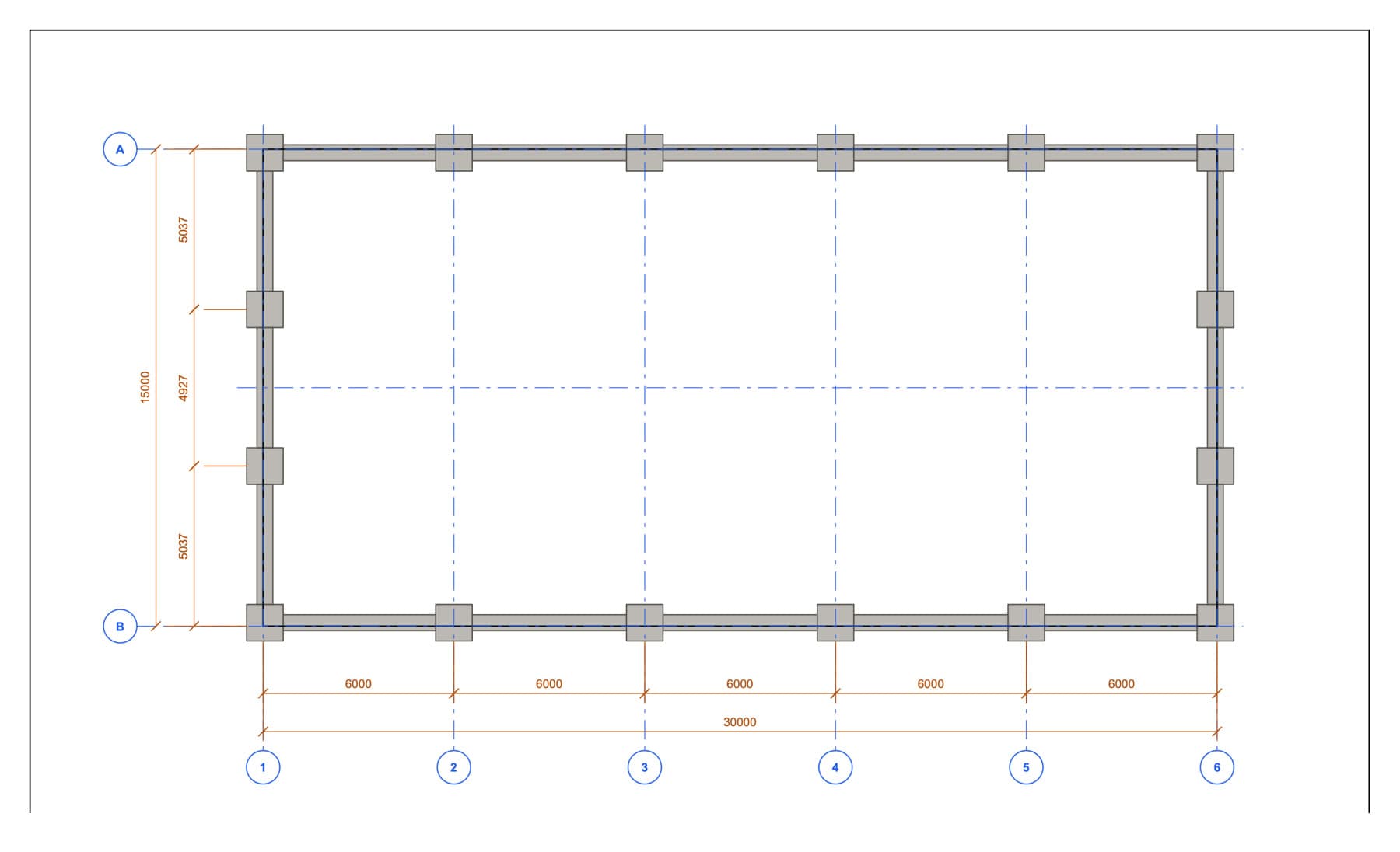

Foundations · 15 × 30 m · 6 frames
Technical description and schedules
These compact previews show the structure of each file. The labels describe what each document contains.
Technical report
Technical report · livestock shelter 15 × 30 m
Schedule of openings

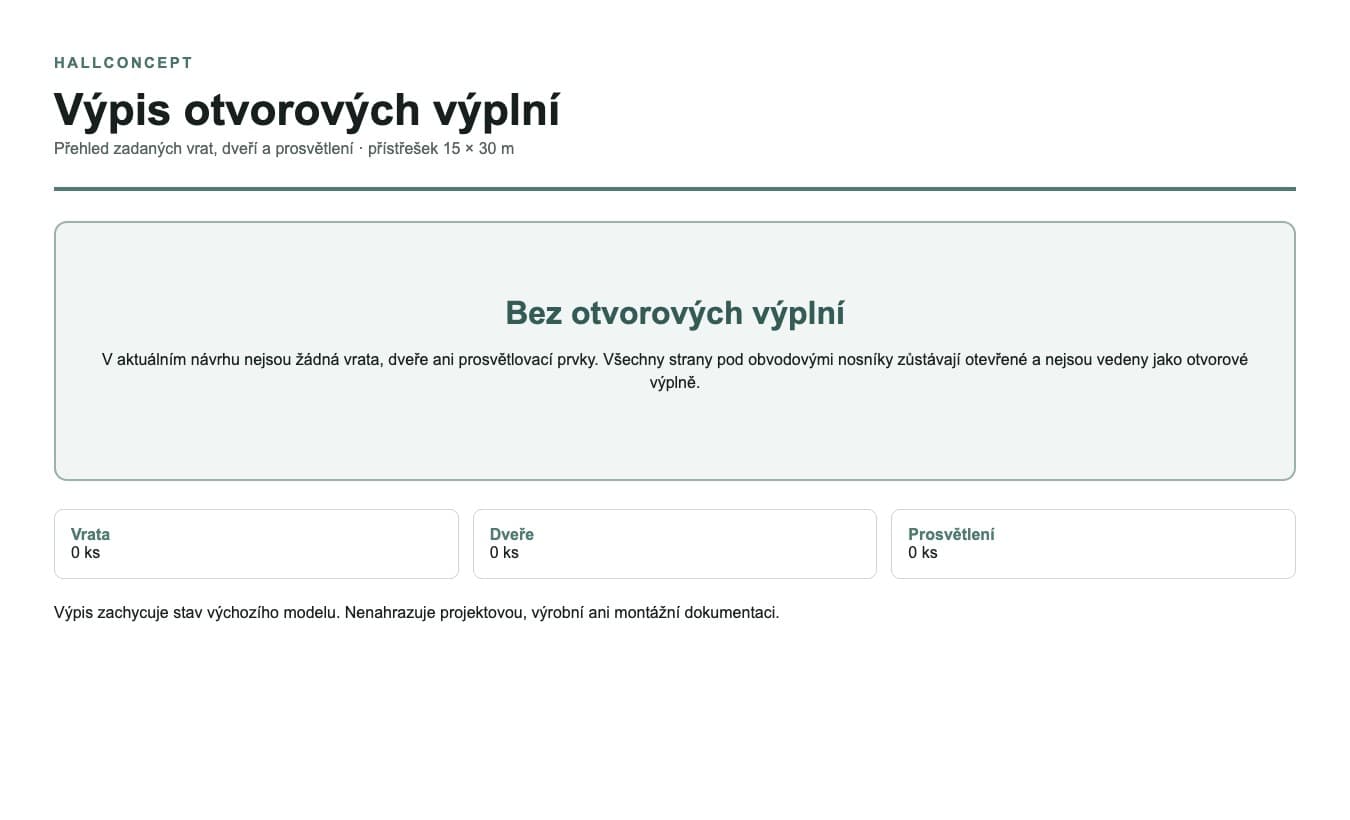

No industrial doors, personnel doors or translucent panels
Schedule of quantities

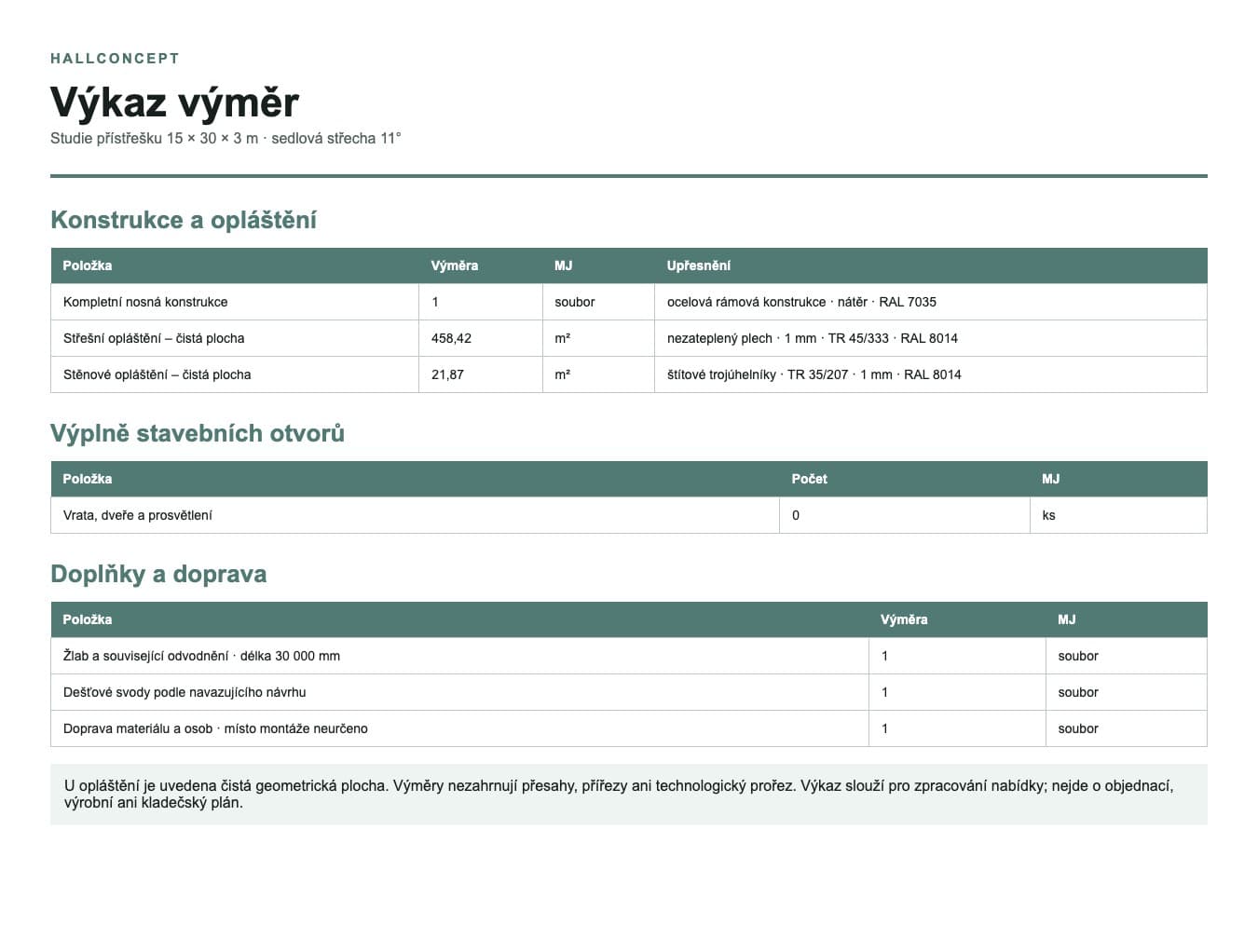

Schedule of quantities · 450 m²
