Office Building 24 × 24 m for a modern working environment.
Combine the speed of a steel hall with a well-planned working environment. The model helps check the building volume, daylighting and the basic relationship between the entrance, offices and facilities.
Starting model
Key details in one place.
The starting model shows specific dimensions, a roof and the extent of glazing.
24 × 24 m · 576 m²
Lower wall 6 m · higher wall 8.1 m
Mono-pitch roof · 5° pitch
5 steel frames · 6 m spacing
35 aluminium windows · 2 aluminium doors
The details describe this starting model. It is a preliminary study, not structural design, fabrication or construction documentation.
Planning the operation
A good working environment is not created by the number of windows alone.
Clarify the number of workstations, visitor flow, privacy and required facilities. The glazing and entrances can then be placed appropriately.
01
How many people will work in the building now and in several years?
02
Which spaces need daylight, and which require privacy instead?
03
How will employees, visitors, deliveries and technical facilities be separated?
04
Where should meeting rooms, sanitary facilities and quiet areas be located?
Edit in the Studio
Find the right volume for the office building.
In the Studio you can adjust the dimensions, roof, entrances and glazing of the starting model.
The description is based on the issued template and verified model documentation. Detailed technical assessment belongs to the relevant specialists.
Technical design of the model
The load-bearing structure consists of five transverse steel frames at six-metre centres. The 576 m² floor area provides standalone office facilities with a prominently glazed entrance area and regular bands of windows.
The mono-pitch roof with a 5° pitch consists of 120 mm insulated sandwich panels in RAL 9006, while the wall cladding uses 100 mm panels in RAL 7016. The design includes 35 openable aluminium windows and two openable glazed aluminium doors. This is a study; the final member sizes, foundations, anchorage and fire-safety design will be determined by the subsequent specialist design. The third image is an AI-generated product visualisation, not a photograph of a completed building.
The internal layout is not part of the basic study.
The model does not define partitions, acoustics, ventilation or the requirements of individual workstations. These elements belong in the architectural and technical design.
Study outputs
From the spatial model to the basis for a quotation.
The previews help you understand the geometry and scope of the study before opening the model in the Studio.
Model and external views
Spatial model · 24 × 24 × 6–8.1 m

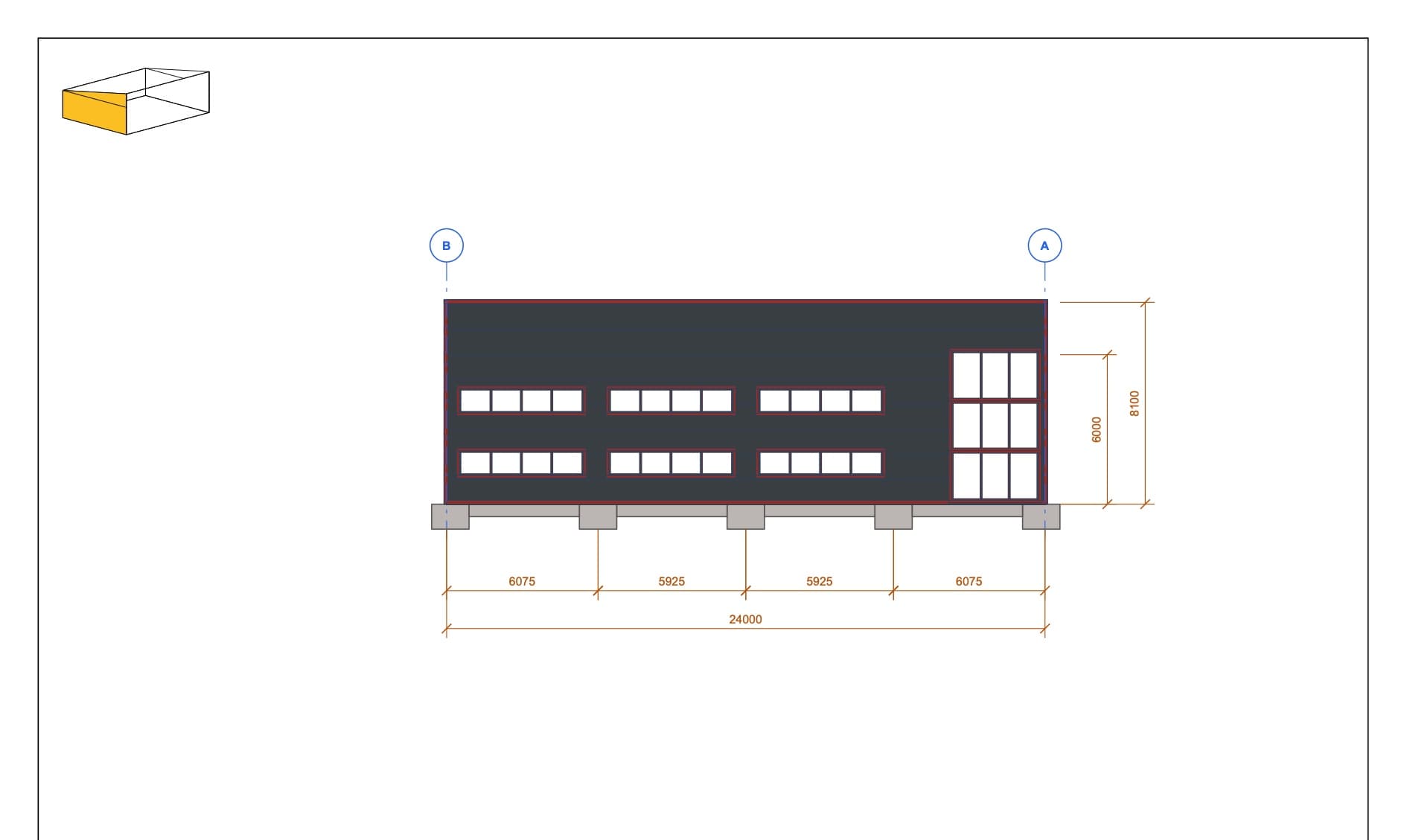

View with 9 windows · 24 m

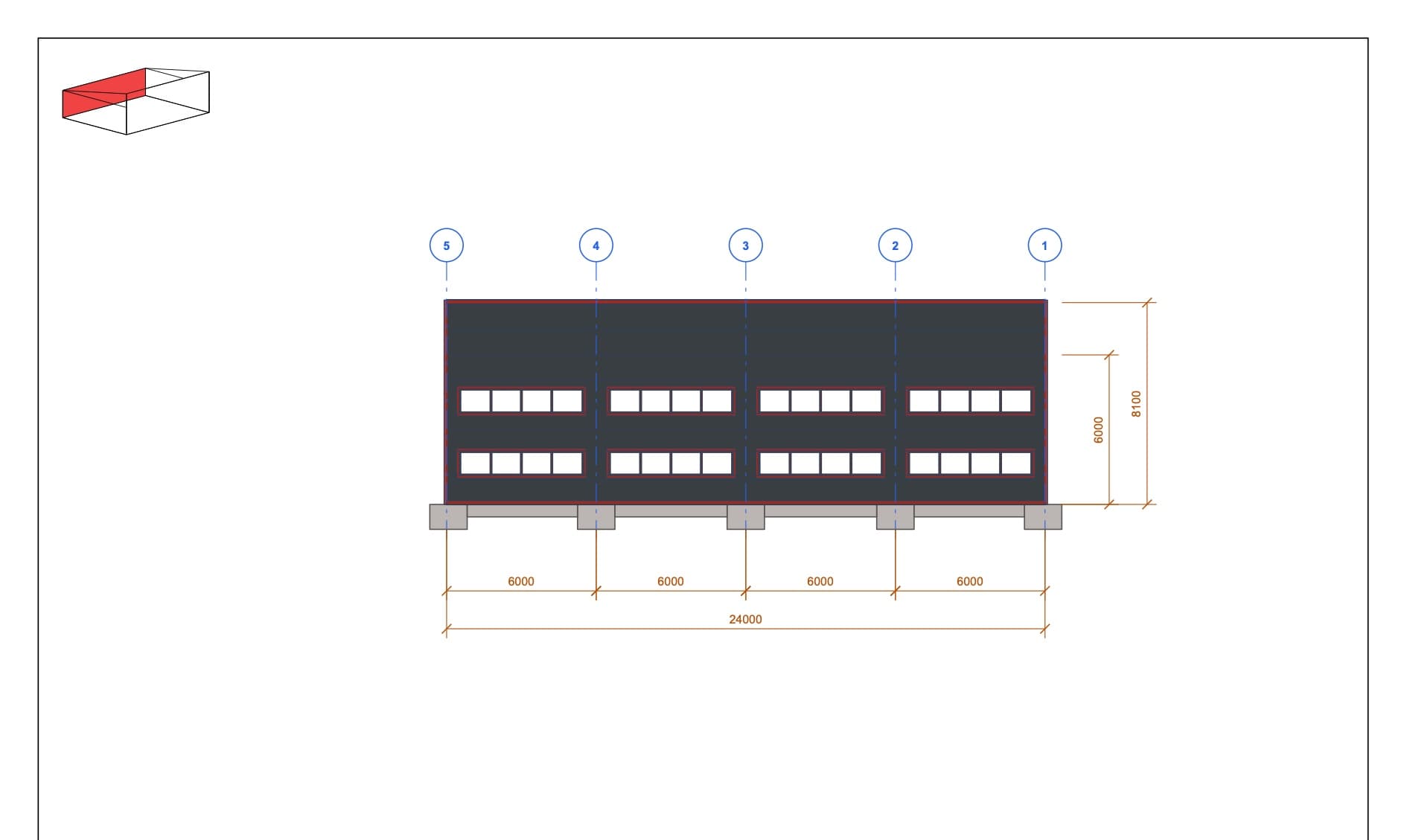

View with 8 windows · 24 m

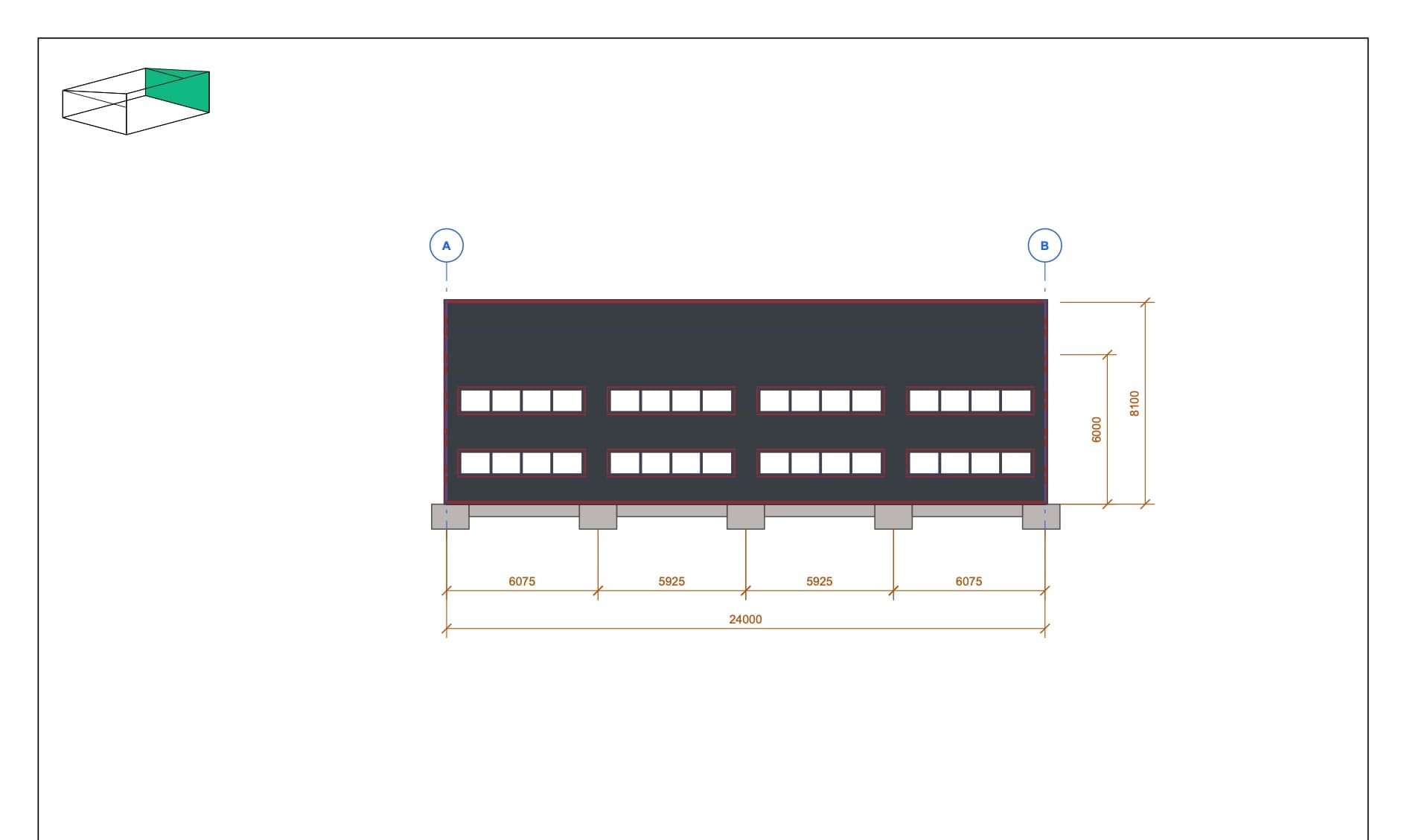

View with 8 windows · 24 m

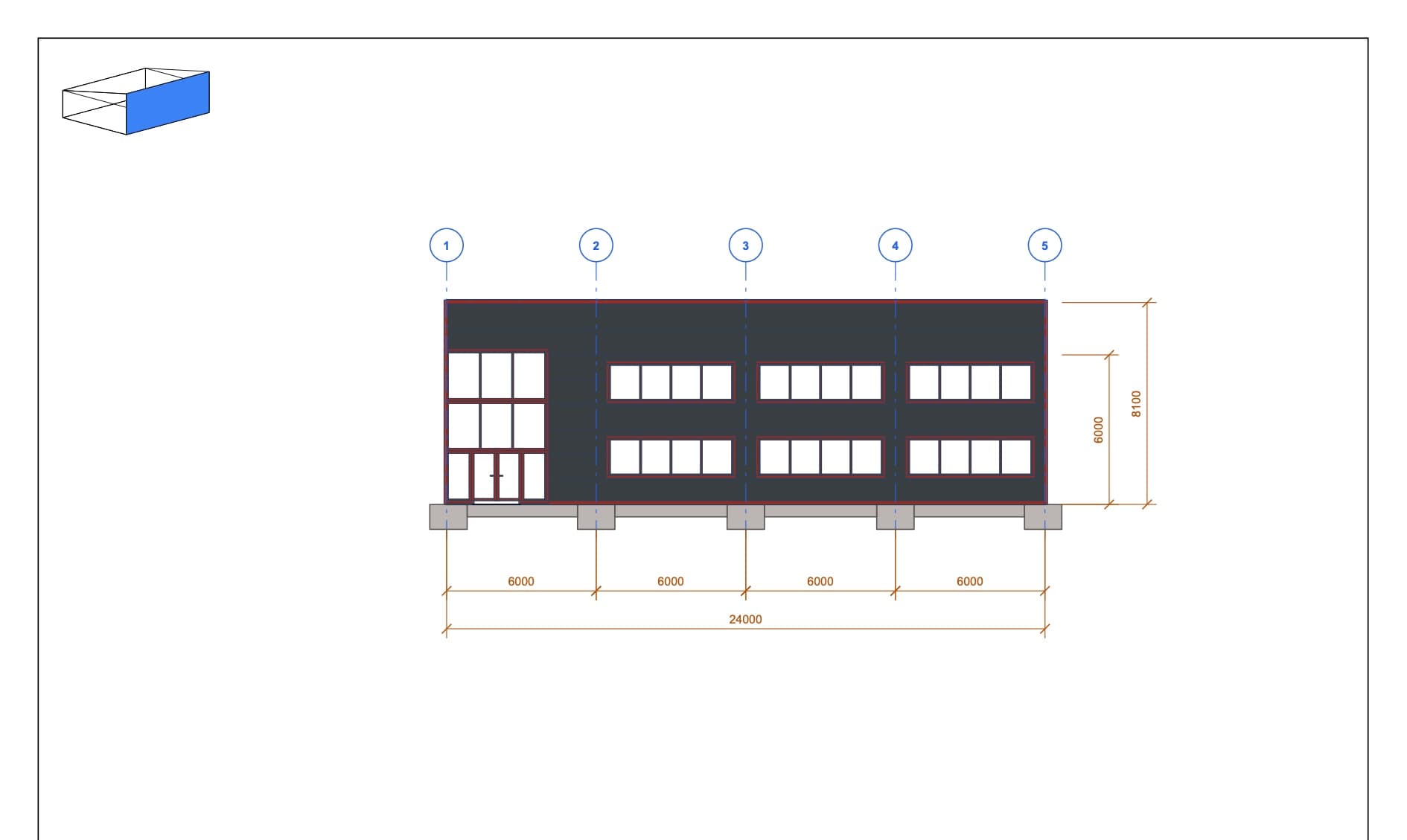

Entrance view · 10 windows and 2 doors
Layout, sections and foundations
Floor plan · 24 × 24 m

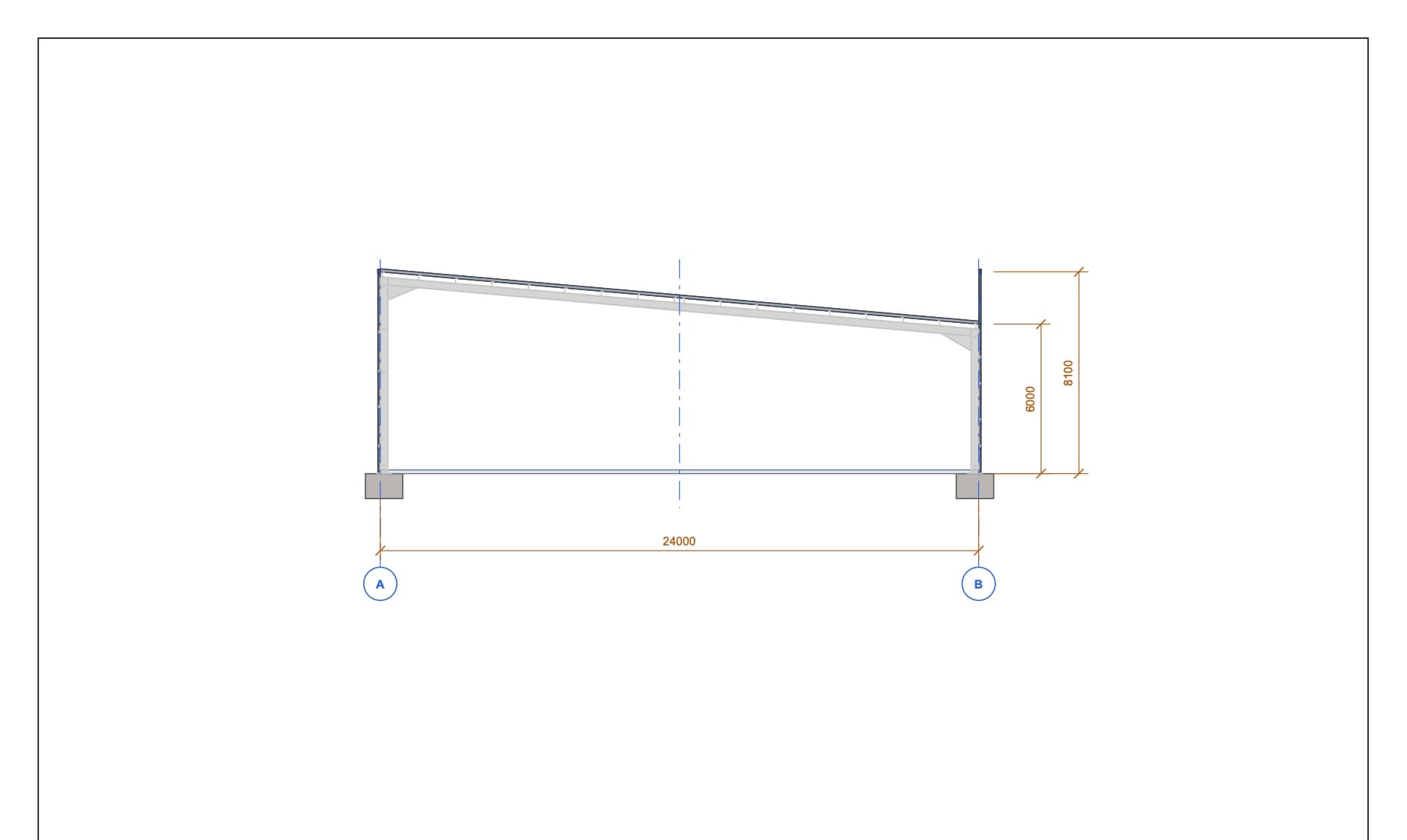

Cross-section · 24 m

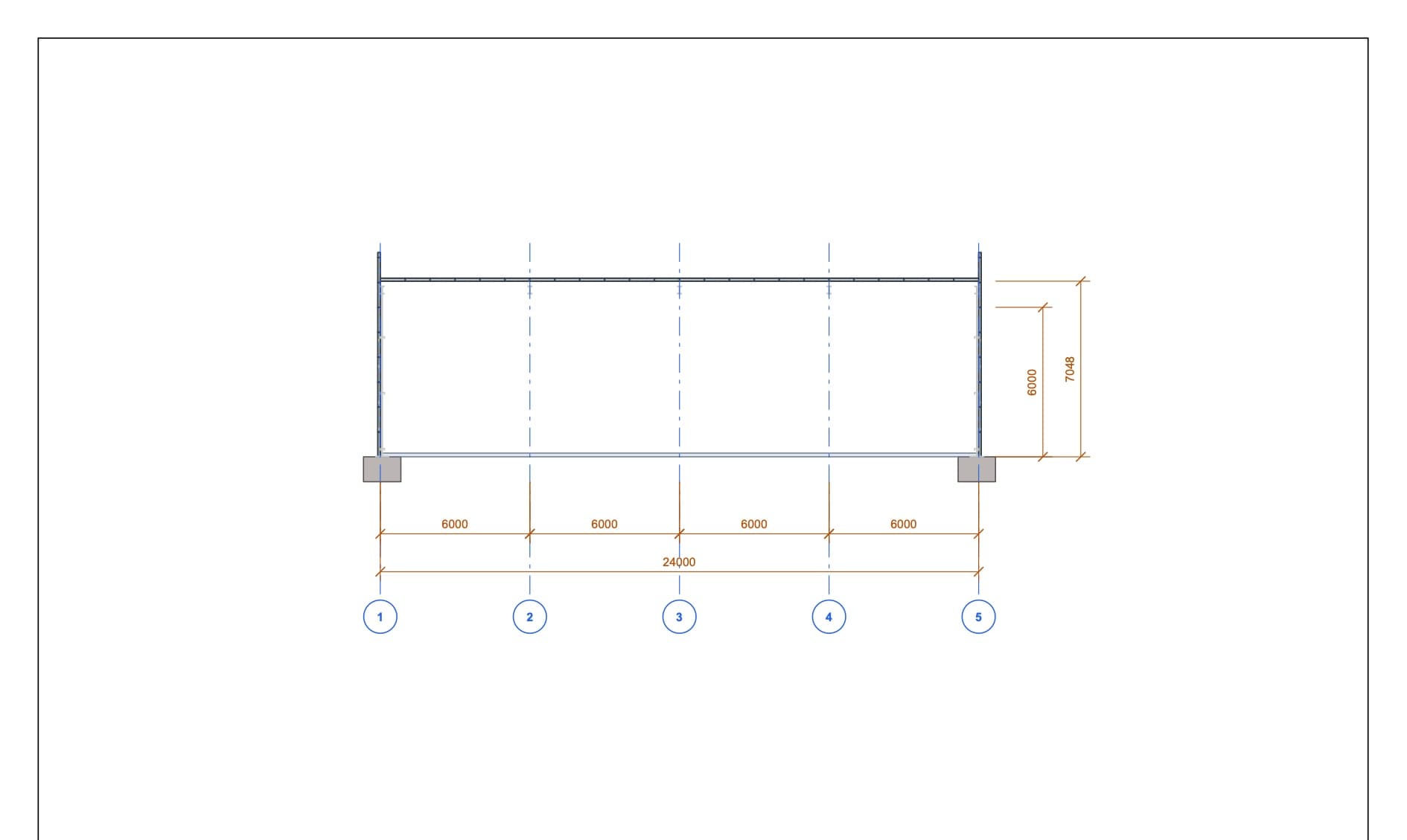

Longitudinal section · 24 m

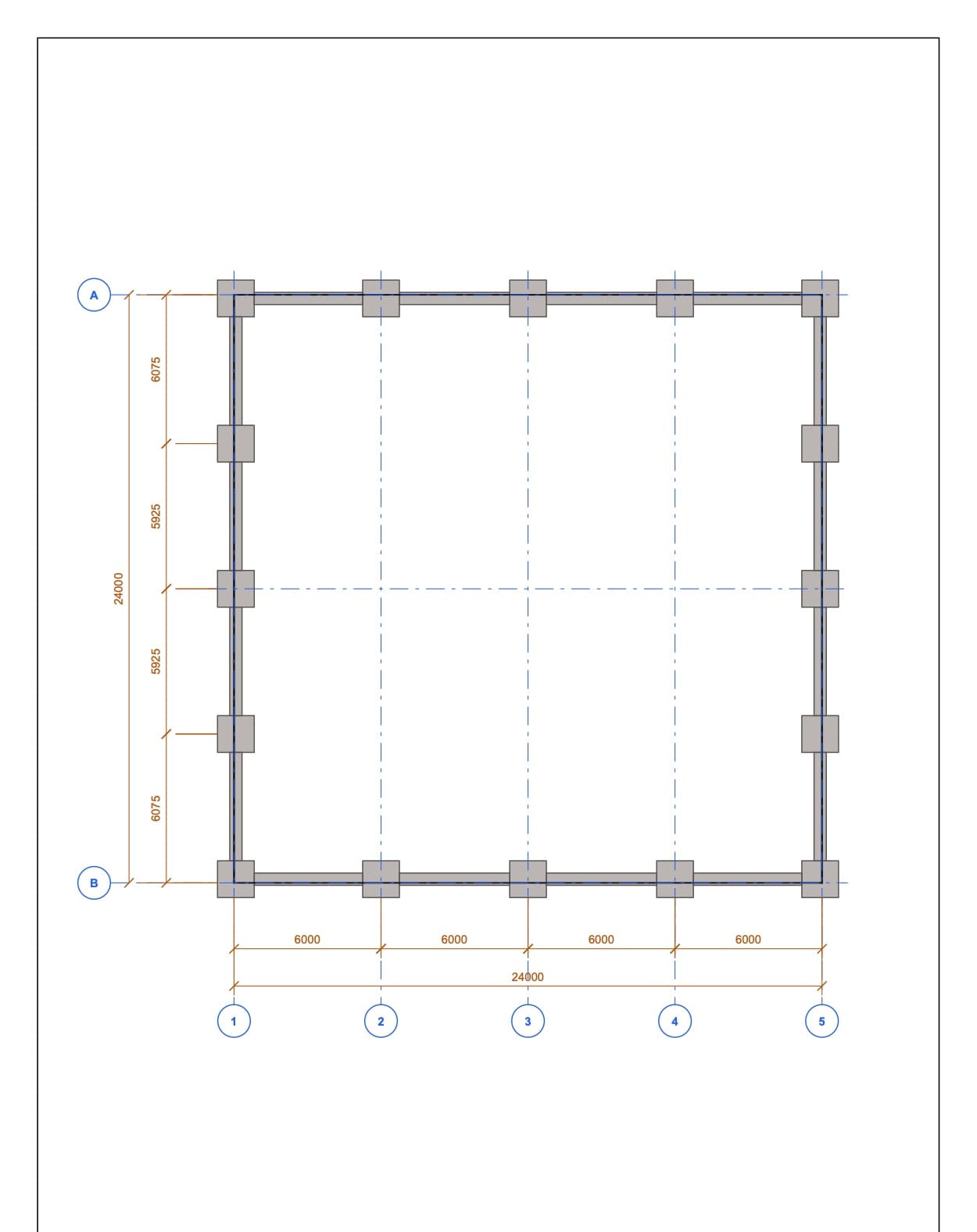

Foundations · 24 × 24 m
Technical description and schedules
These compact previews show the structure of each file. The labels describe what each document contains.
Technical report
Technical report · 24 × 24 × 6–8.1 m

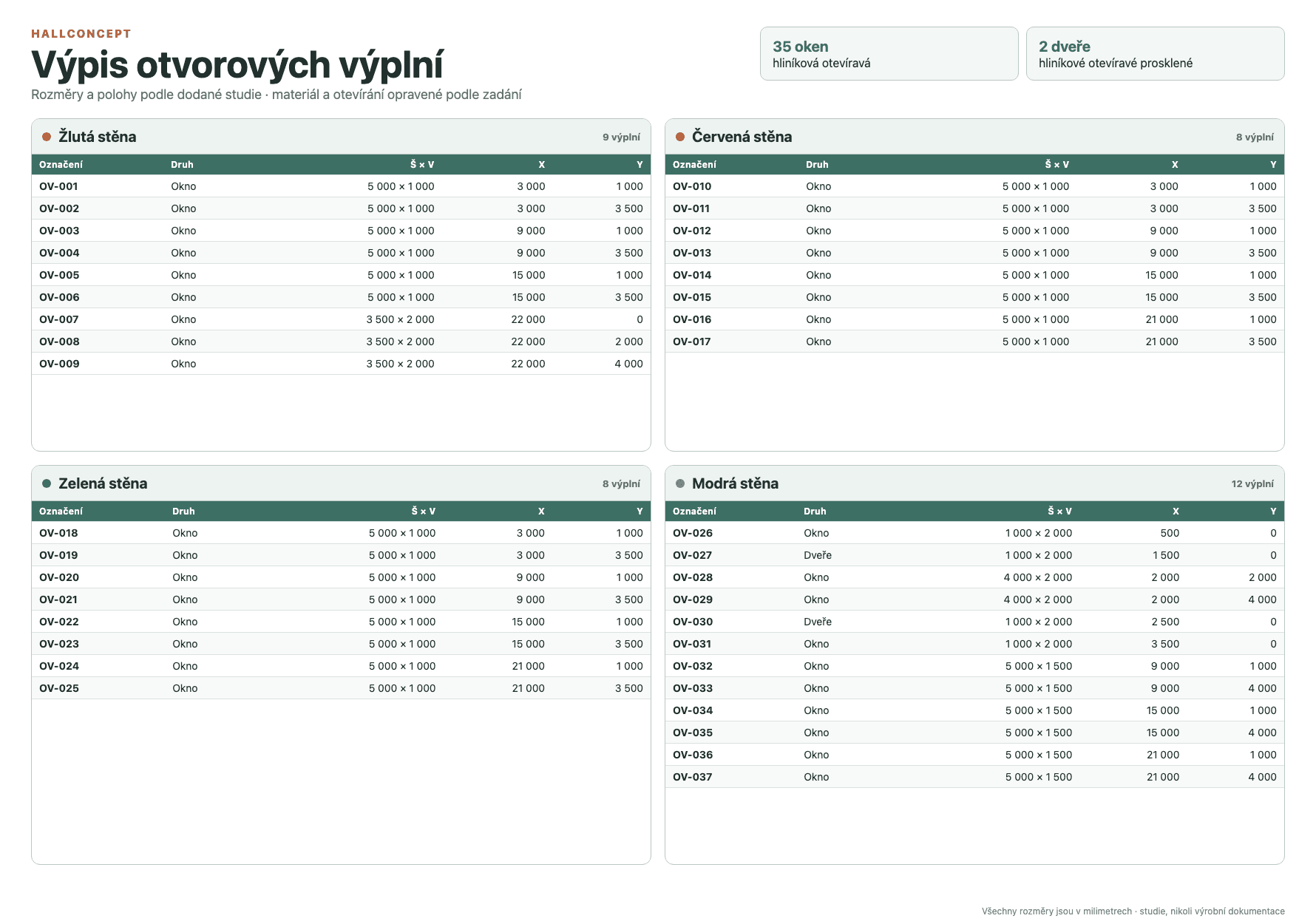

Schedule of openings
35 aluminium windows · 2 aluminium doors

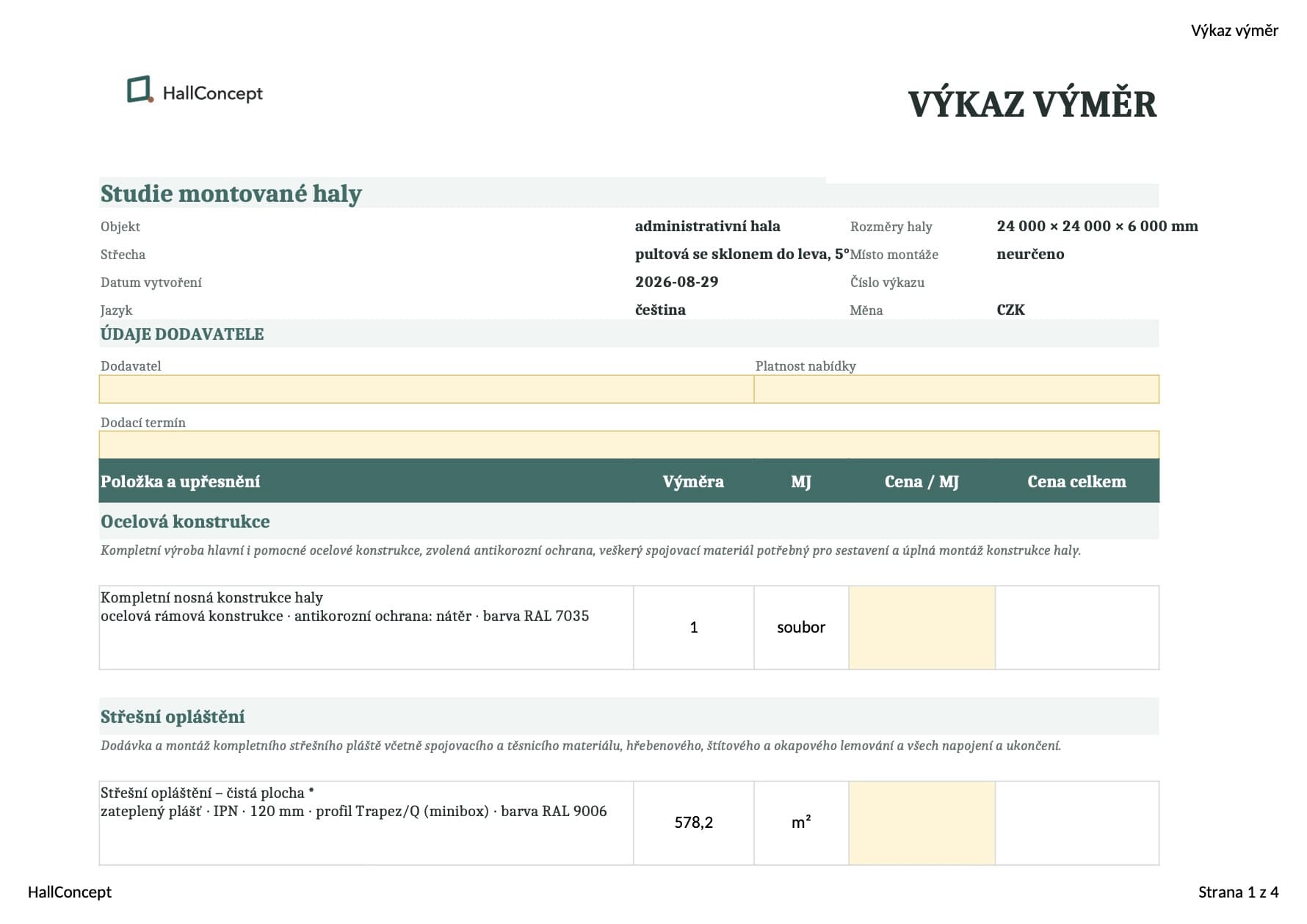

Schedule of quantities
